Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2003
>>
Lancer L4-2.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
>>
Transmission Case
Transmission Case

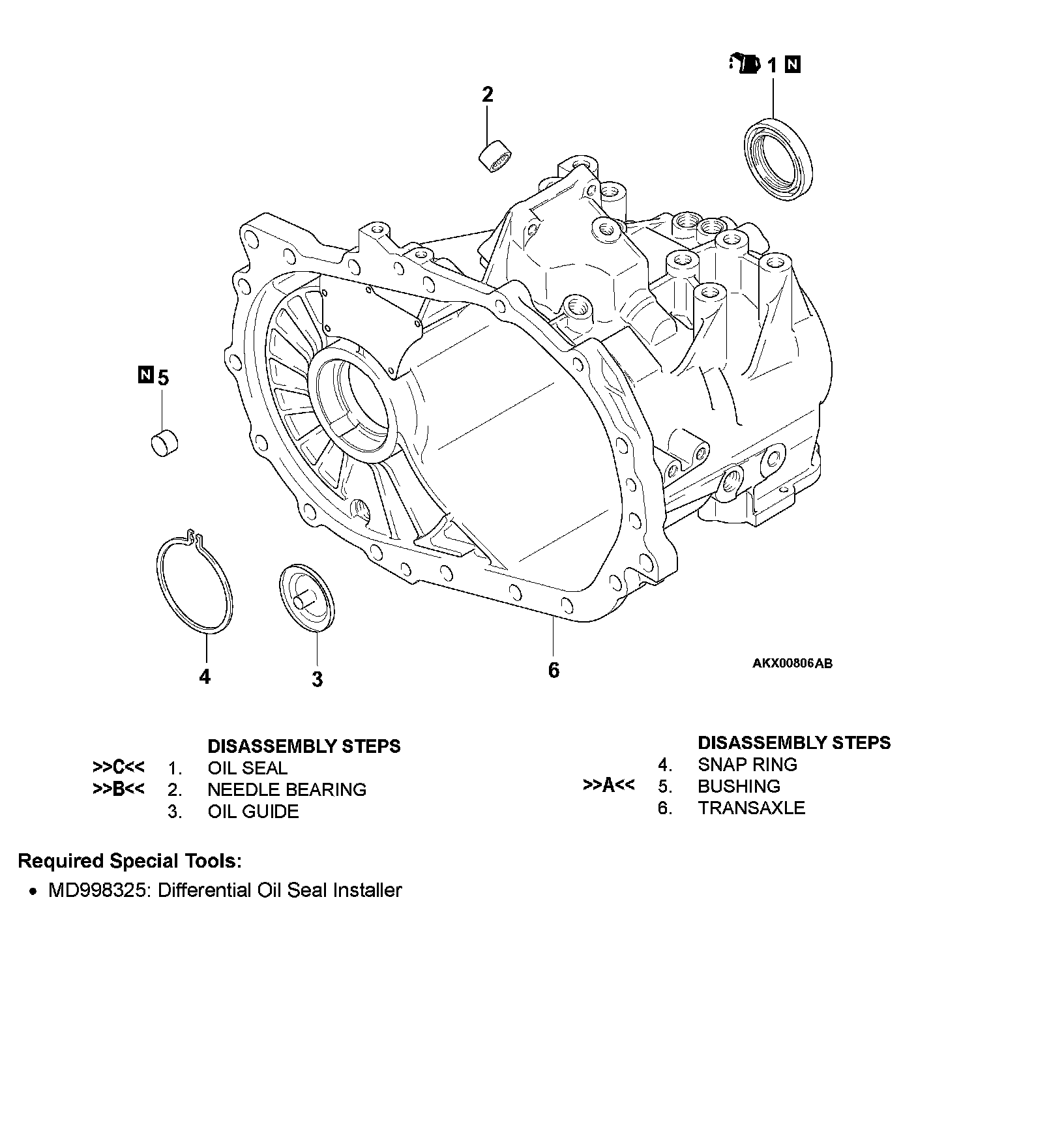

TRANSMISSION CASE OVERHAUL W/ RELATED COMPONENTS
