Mitsubishi
>>
2003
>>
Lancer L4-2.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Wheel Hub
>>
Front Axle
>>
Removal and Installation
Removal and Installation

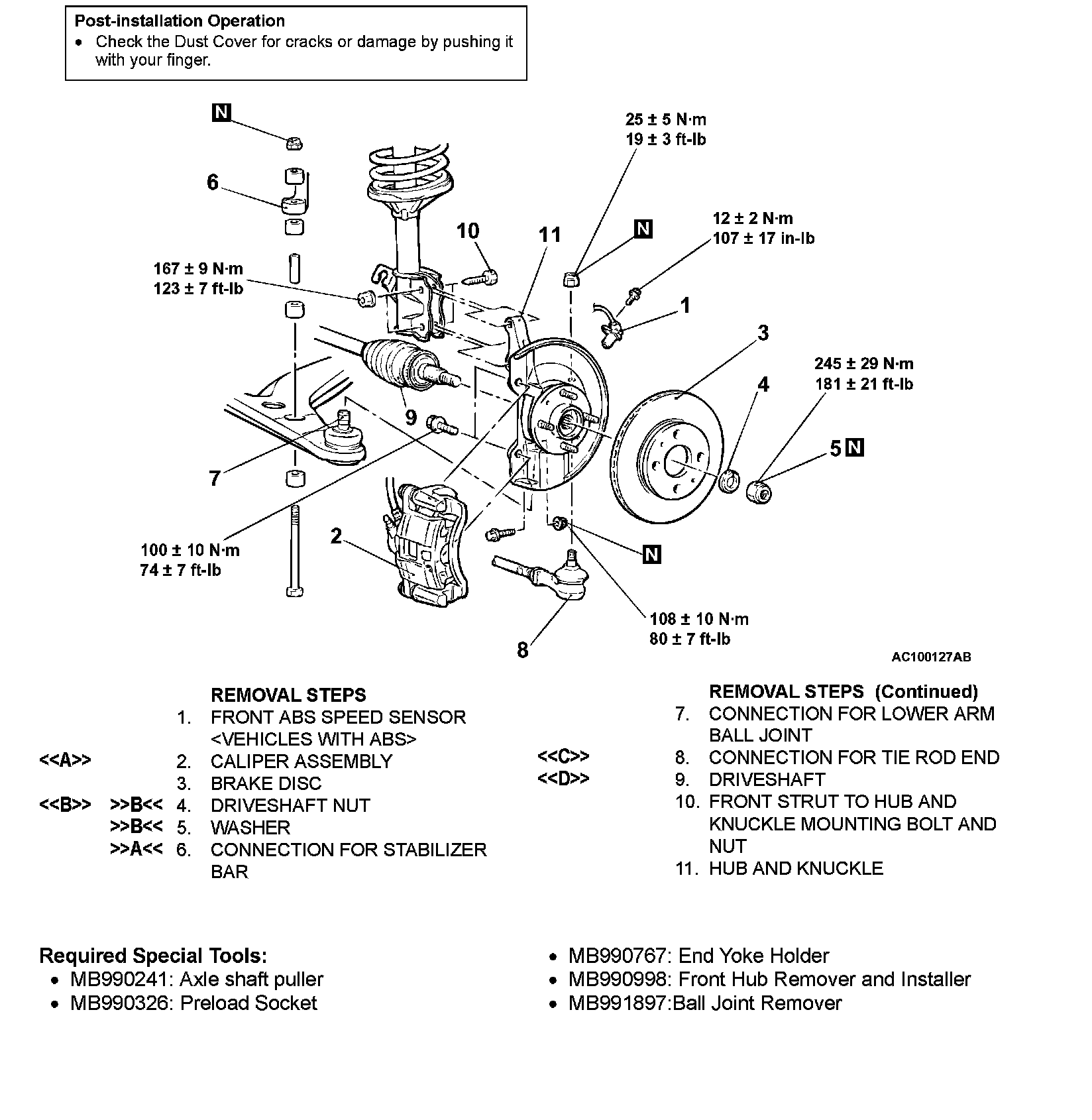

FRONT AXLE HUB ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS
