Home
>>
Mitsubishi
>>
2003
>>
Lancer L4-2.0L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Locations
>>
Component Locations
Component Locations

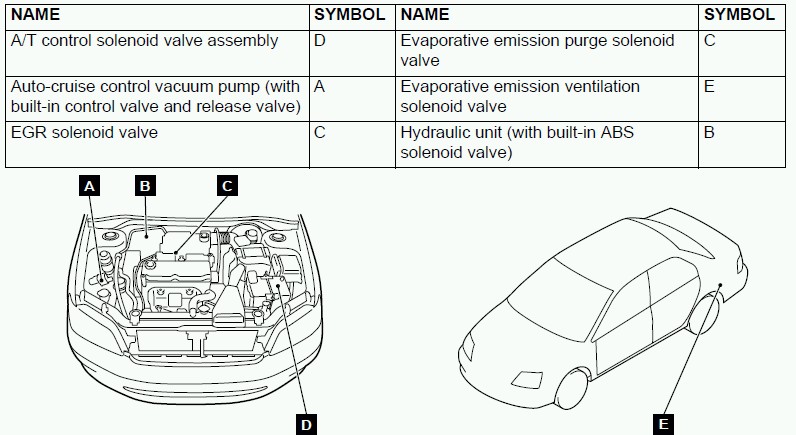

Overall View:

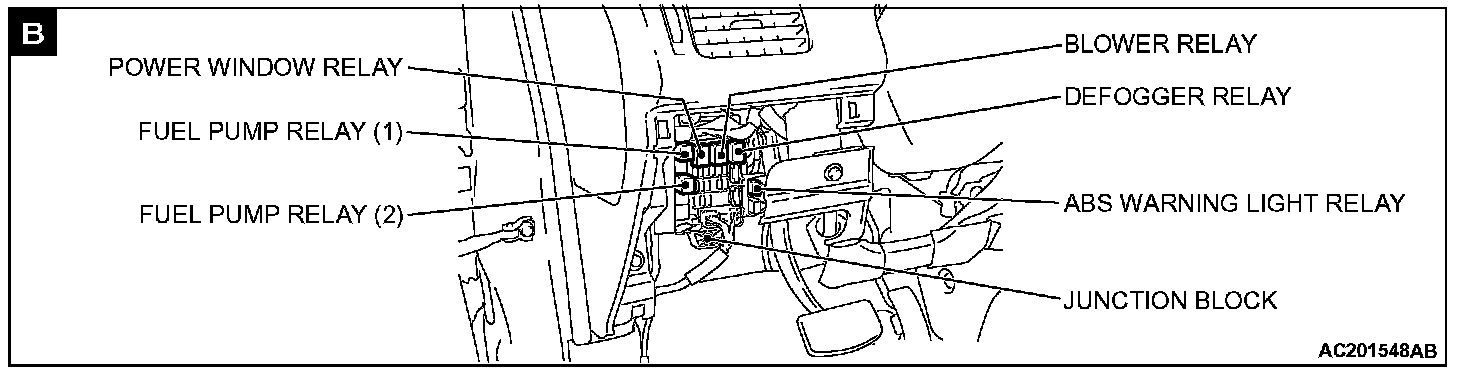

View B:
Overall View:

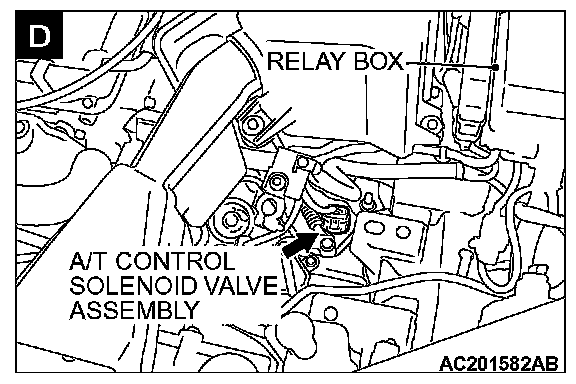

View D:
