Pinout Values and Diagnostic Parameters

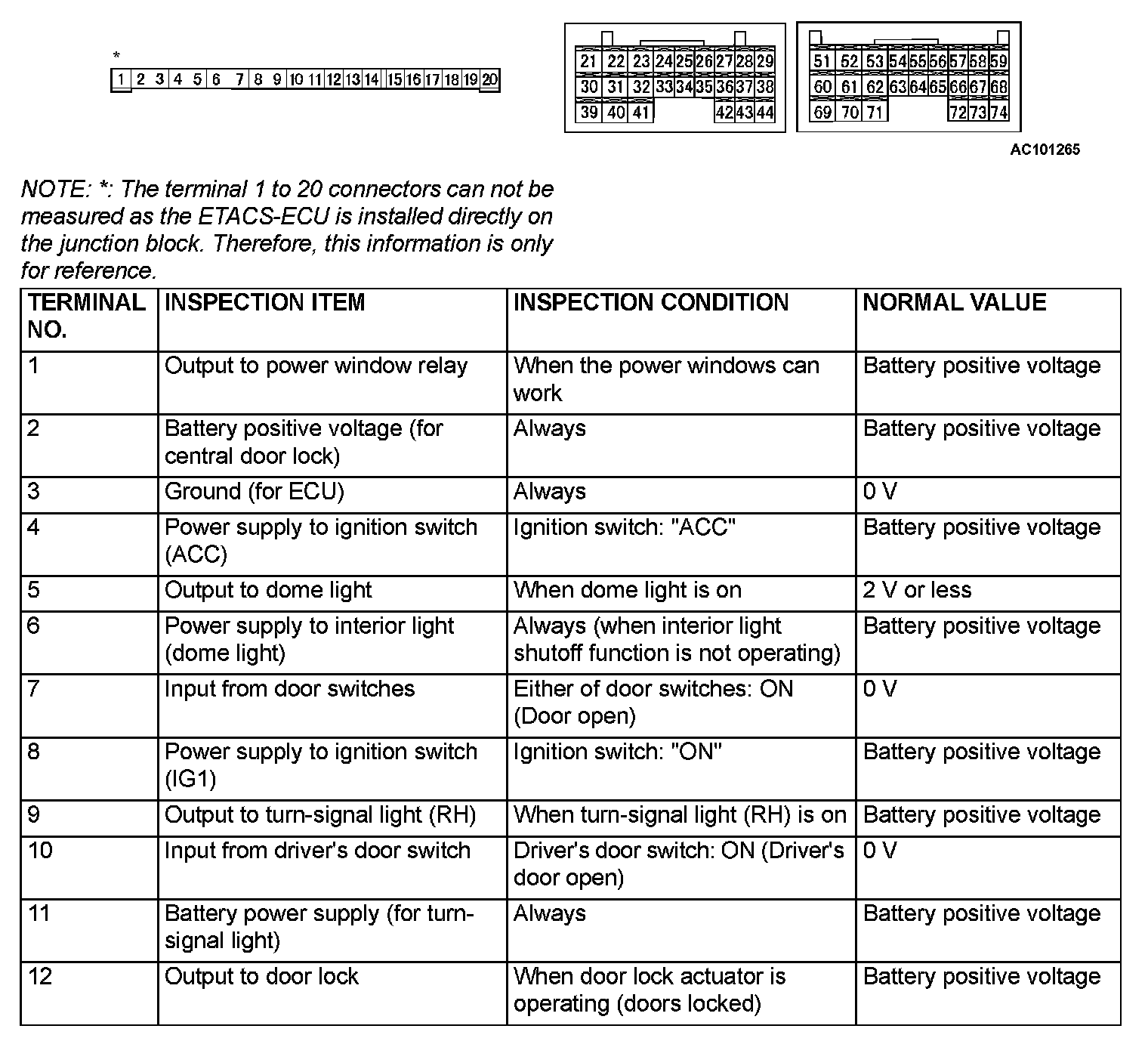

ETACS-ECU Terminal Arrangement And Terminals Part 1:

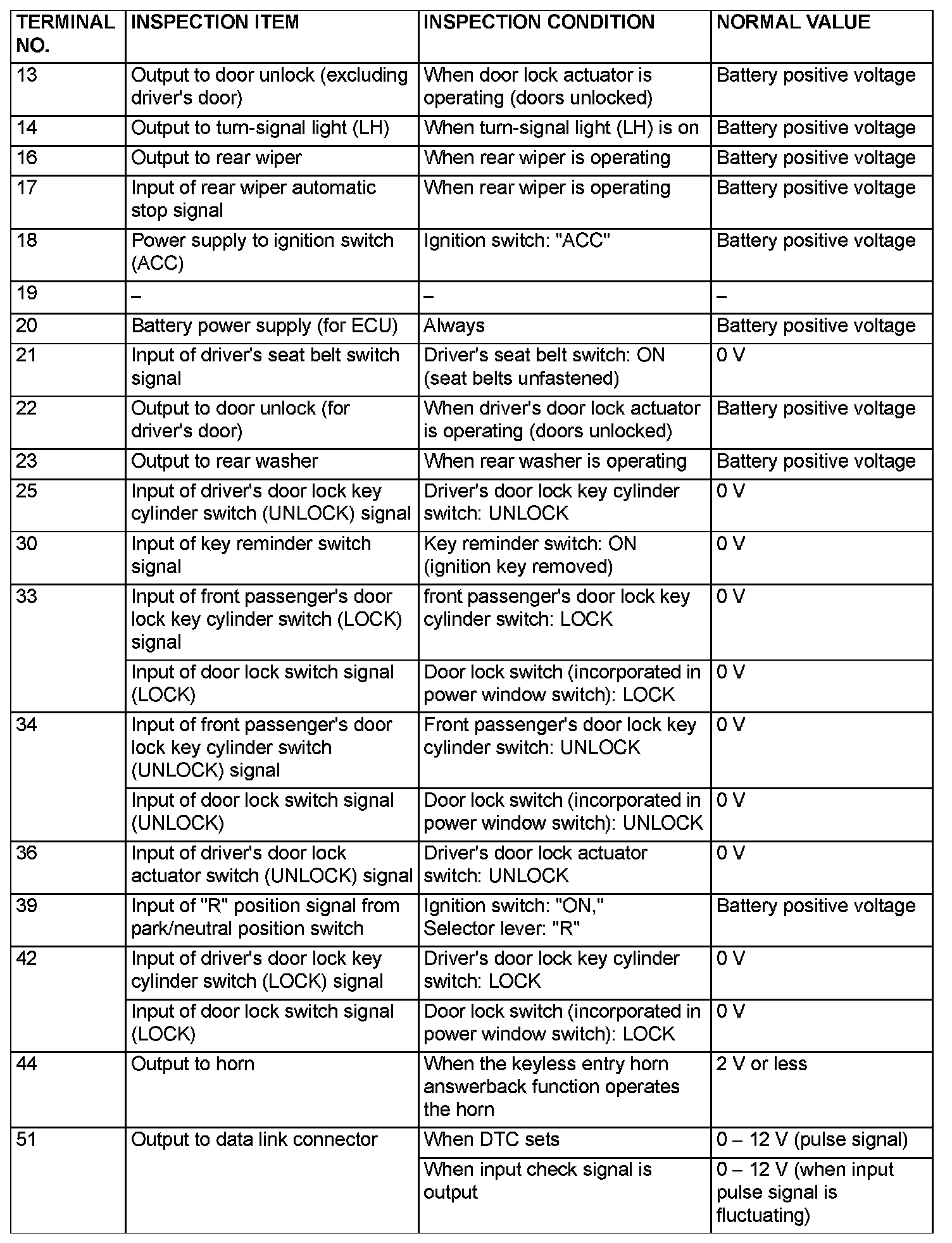

ETACS-ECU Terminal Arrangement And Terminals Part 2:

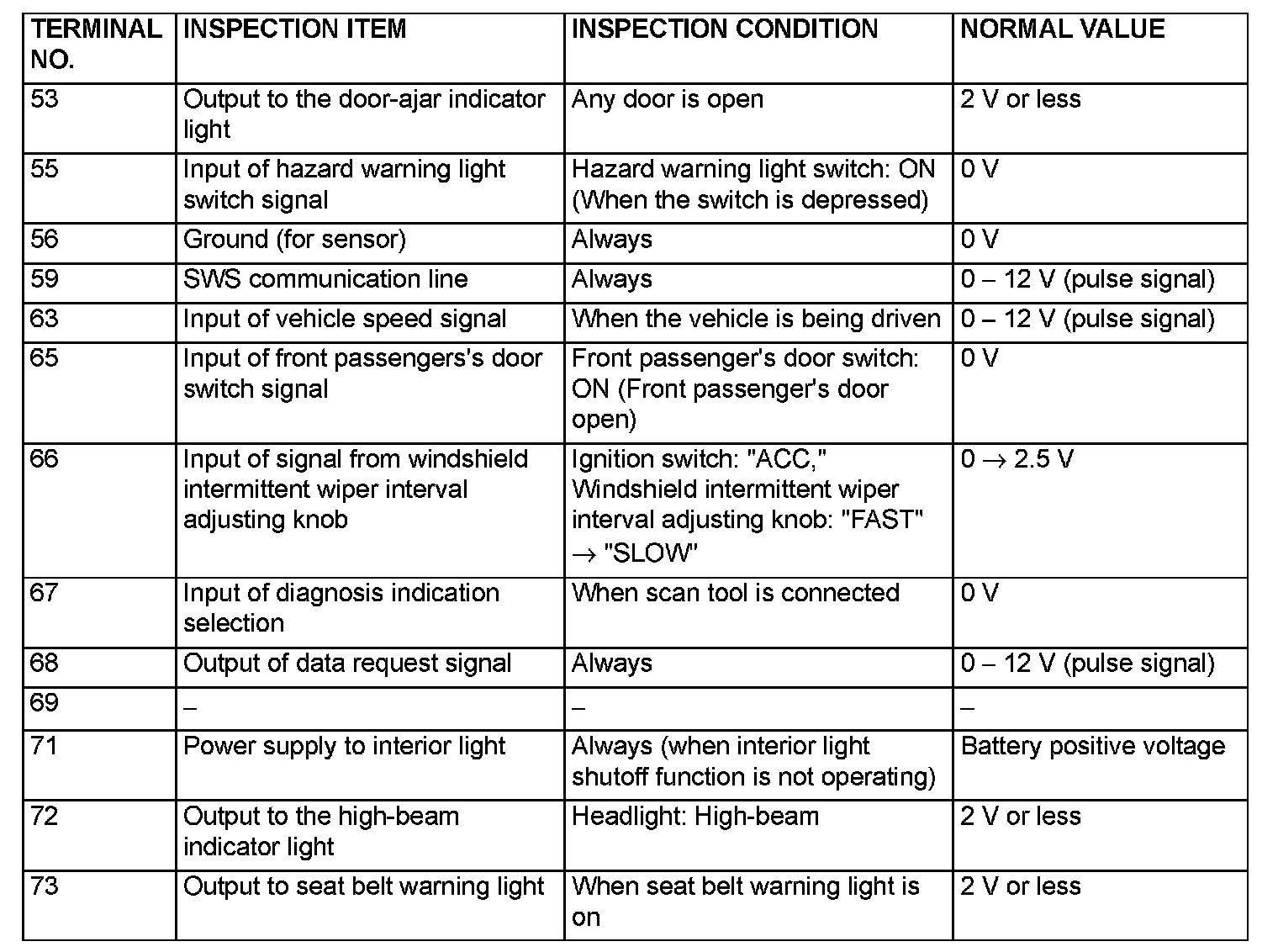

ETACS-ECU Terminal Arrangement And Terminals Part 3:

Column-Switch Terminal Arrangement And Terminal No: 1 - 6:

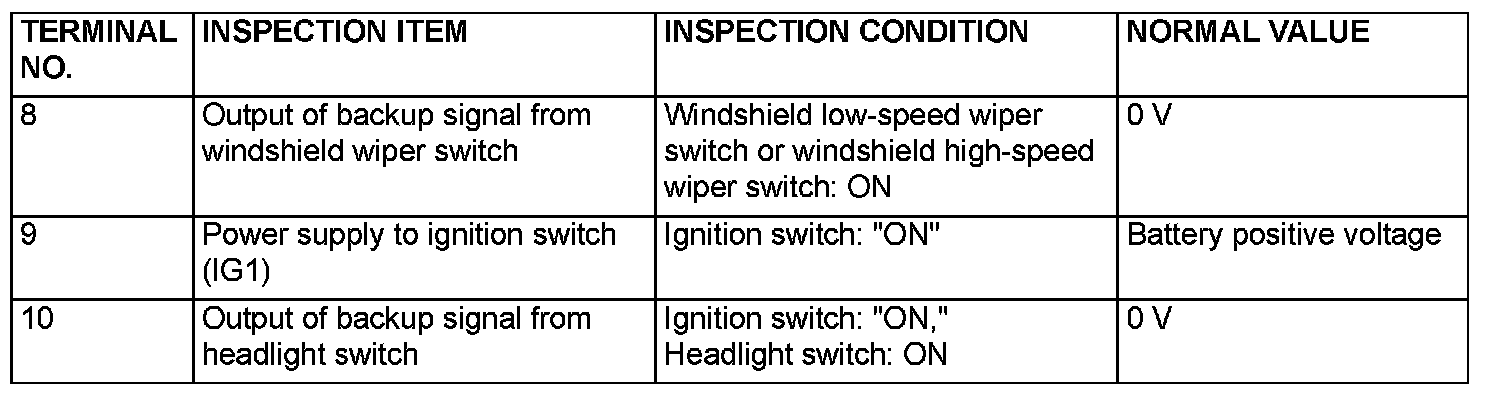

Column-Switch Terminal Arrangement And Terminal No: 8 - 10:

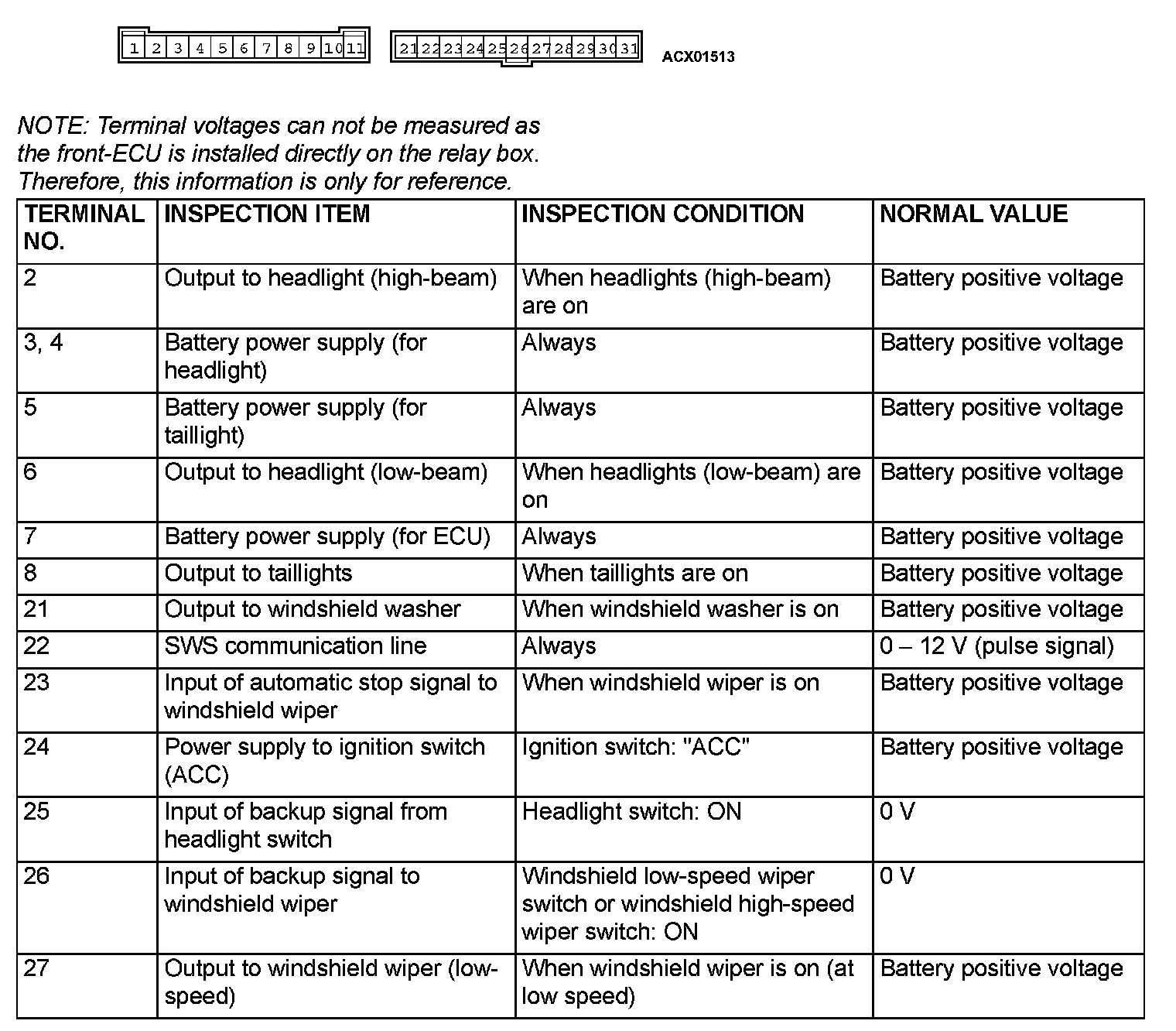

Front-ECU Terminal Arrangement And Terminal No: 2 - 27:

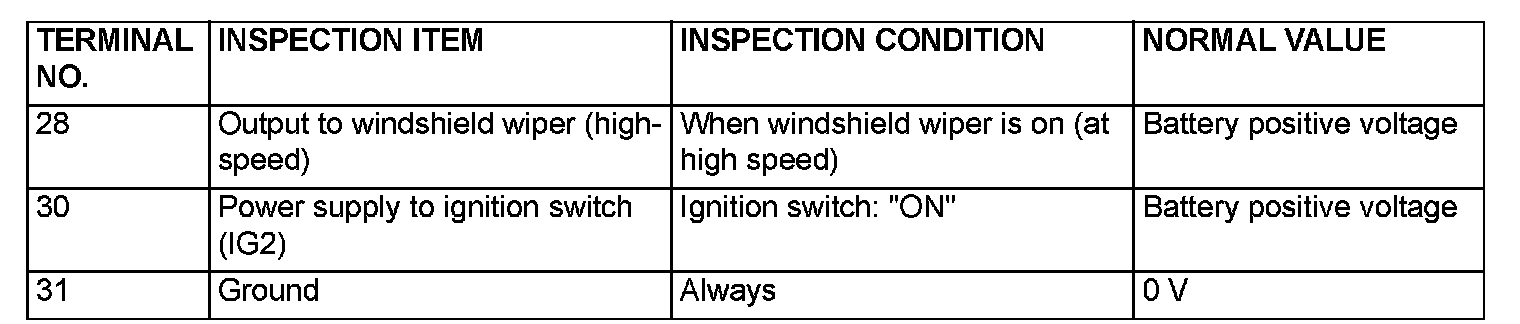

Front-ECU Terminal Arrangement And Terminal No: 28 - 31:

Sunroof Motor Assembly Terminal Arrangement And Terminal No: 2 - 31:
