Function Diagnosis
The table below shows the service data and their normal condition, which are displayed during the "FUNCTION DIAGNOSIS." The row "Normal conditions" shows values, which are shown when each operation is made.
Part 1:
Part 2:
Part 3:

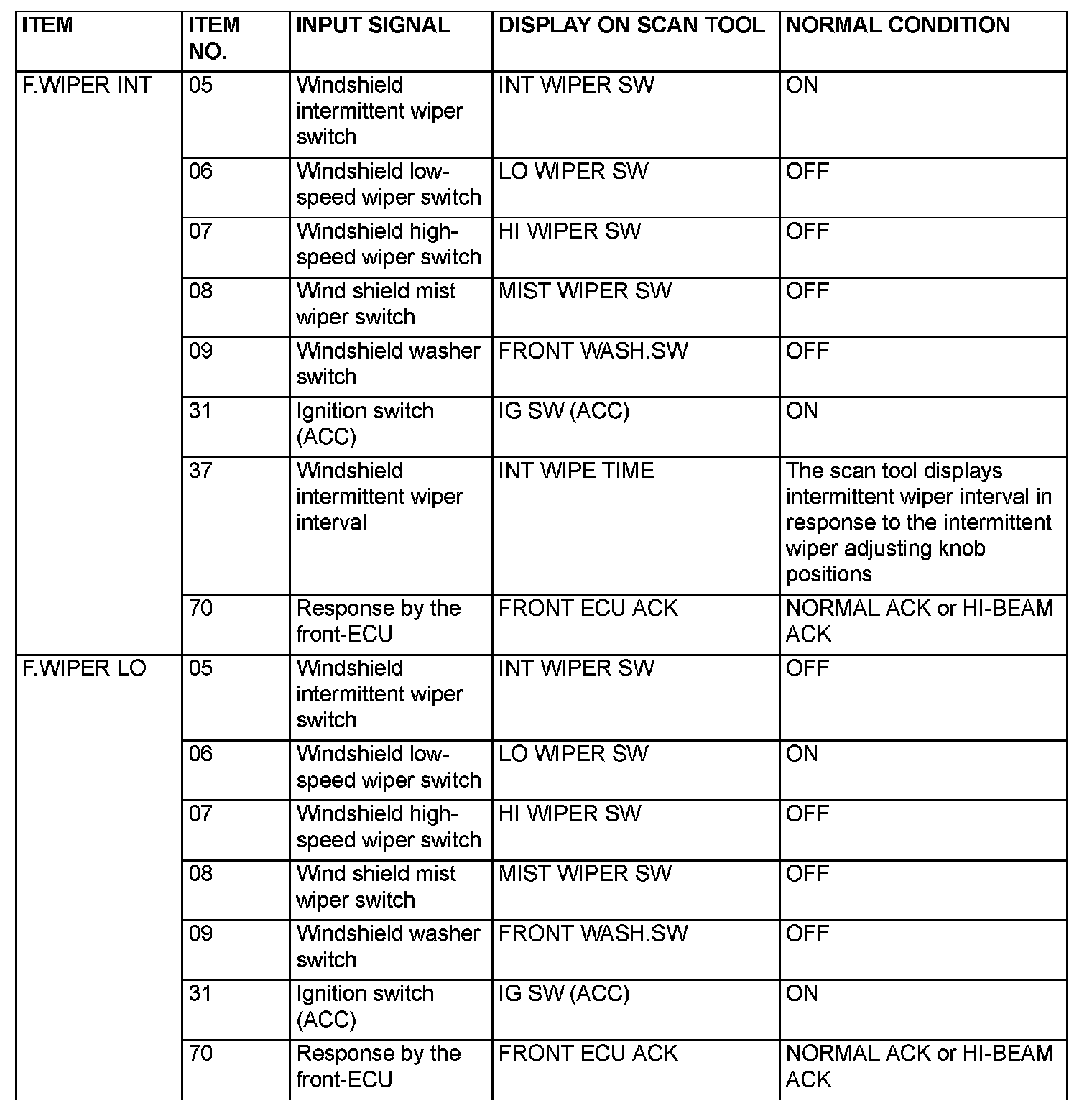

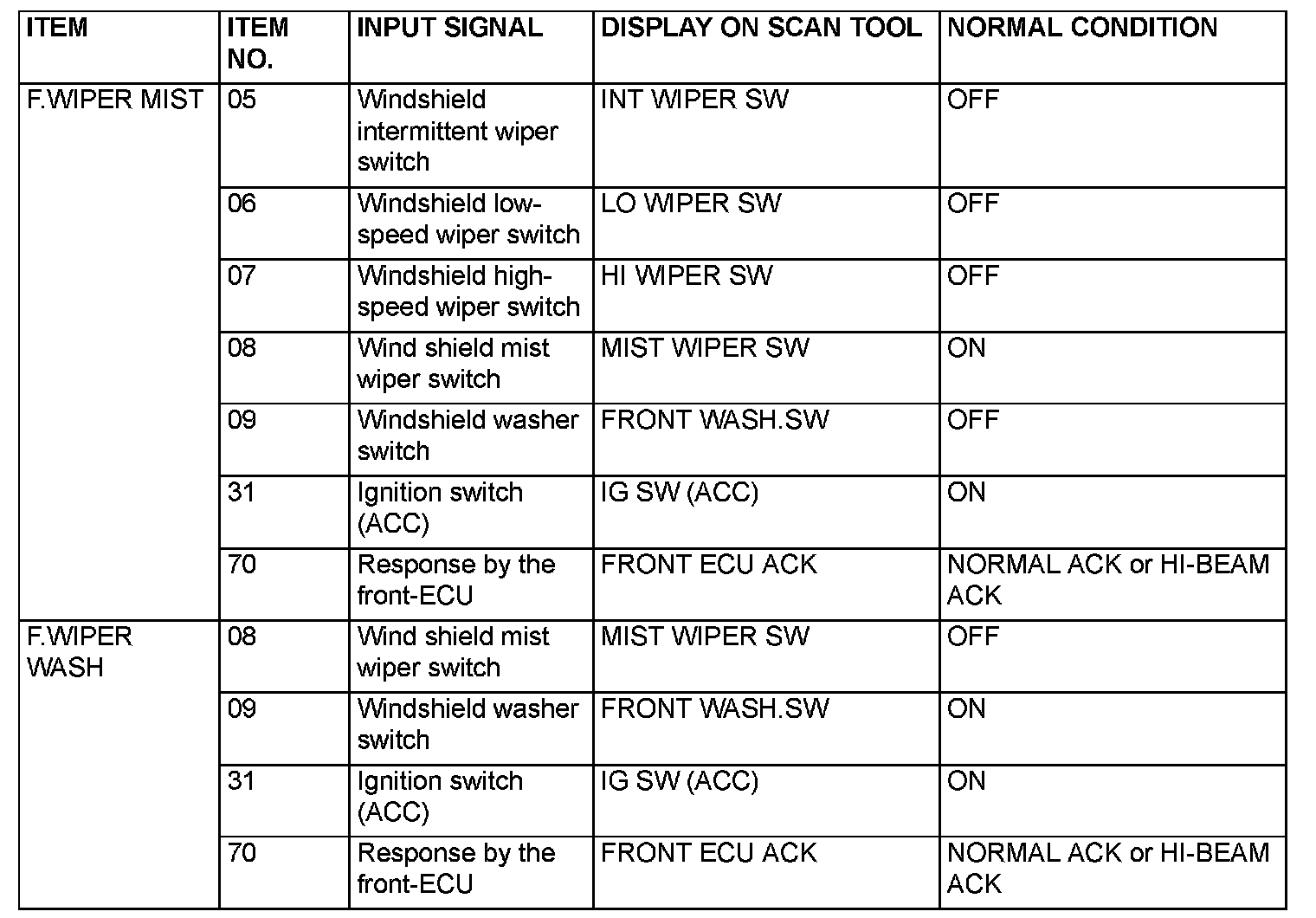

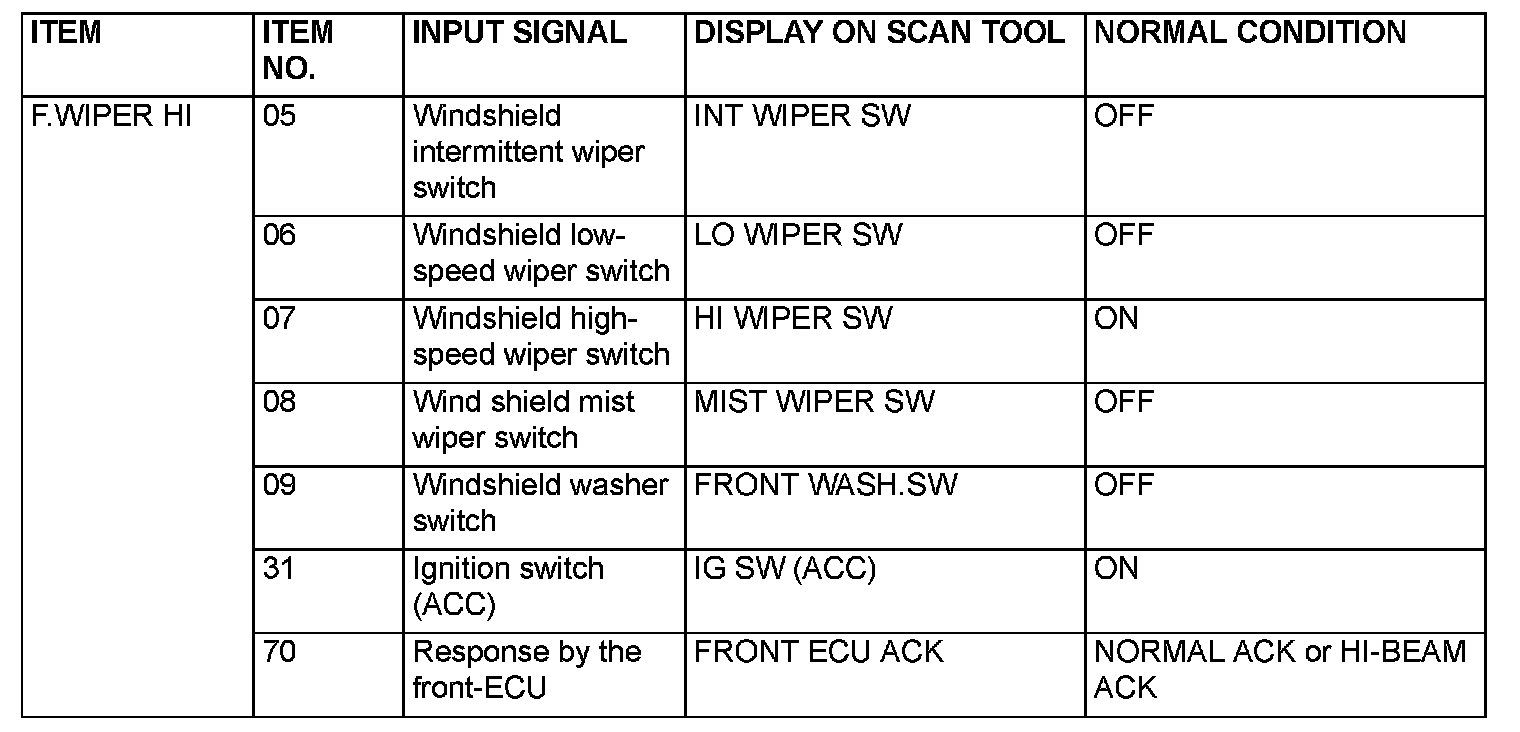

- WIPER

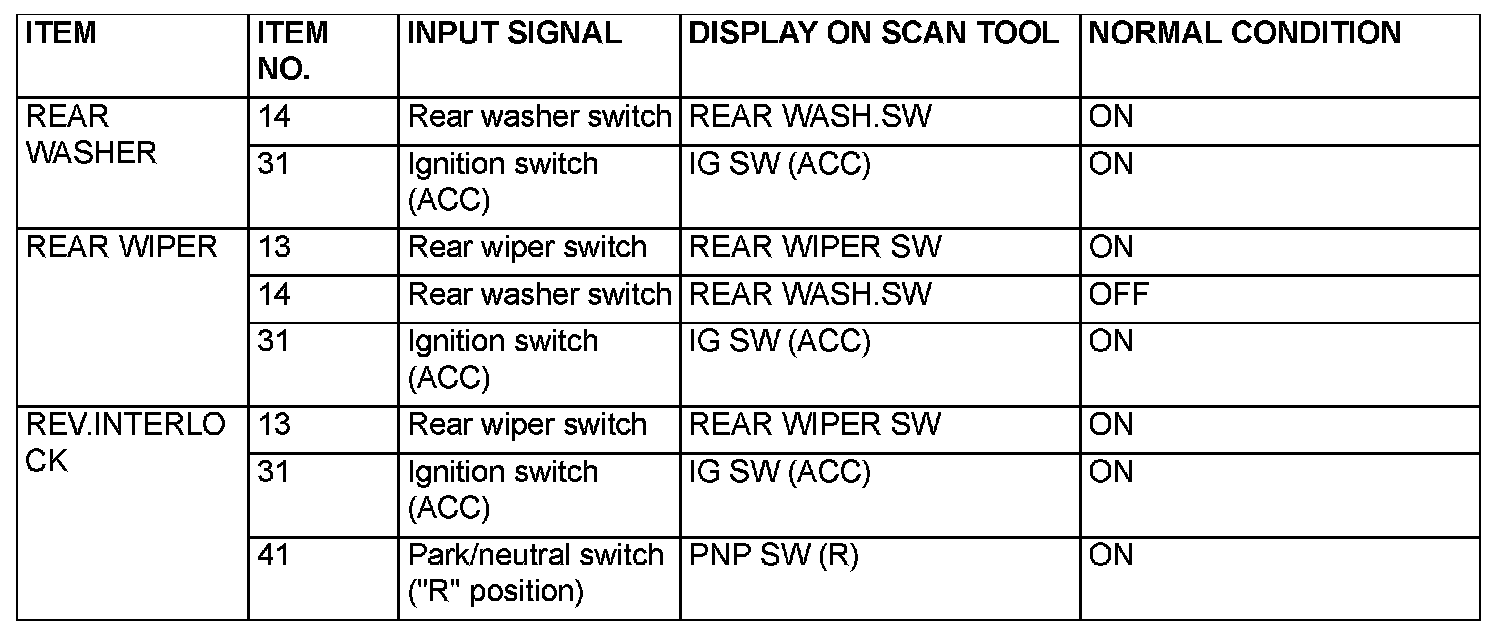

- REAR WIPER
Part 1:
Part 2:

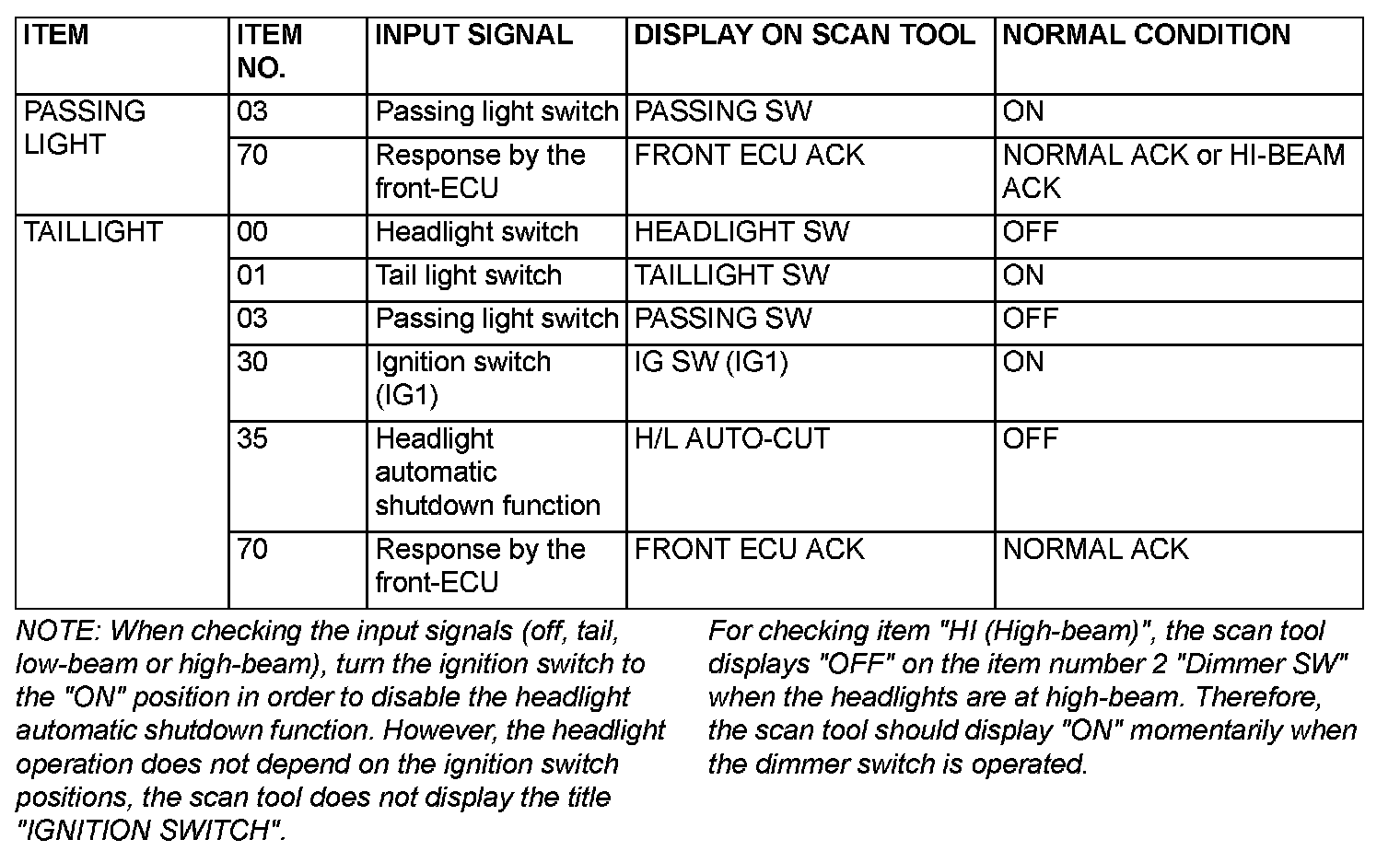

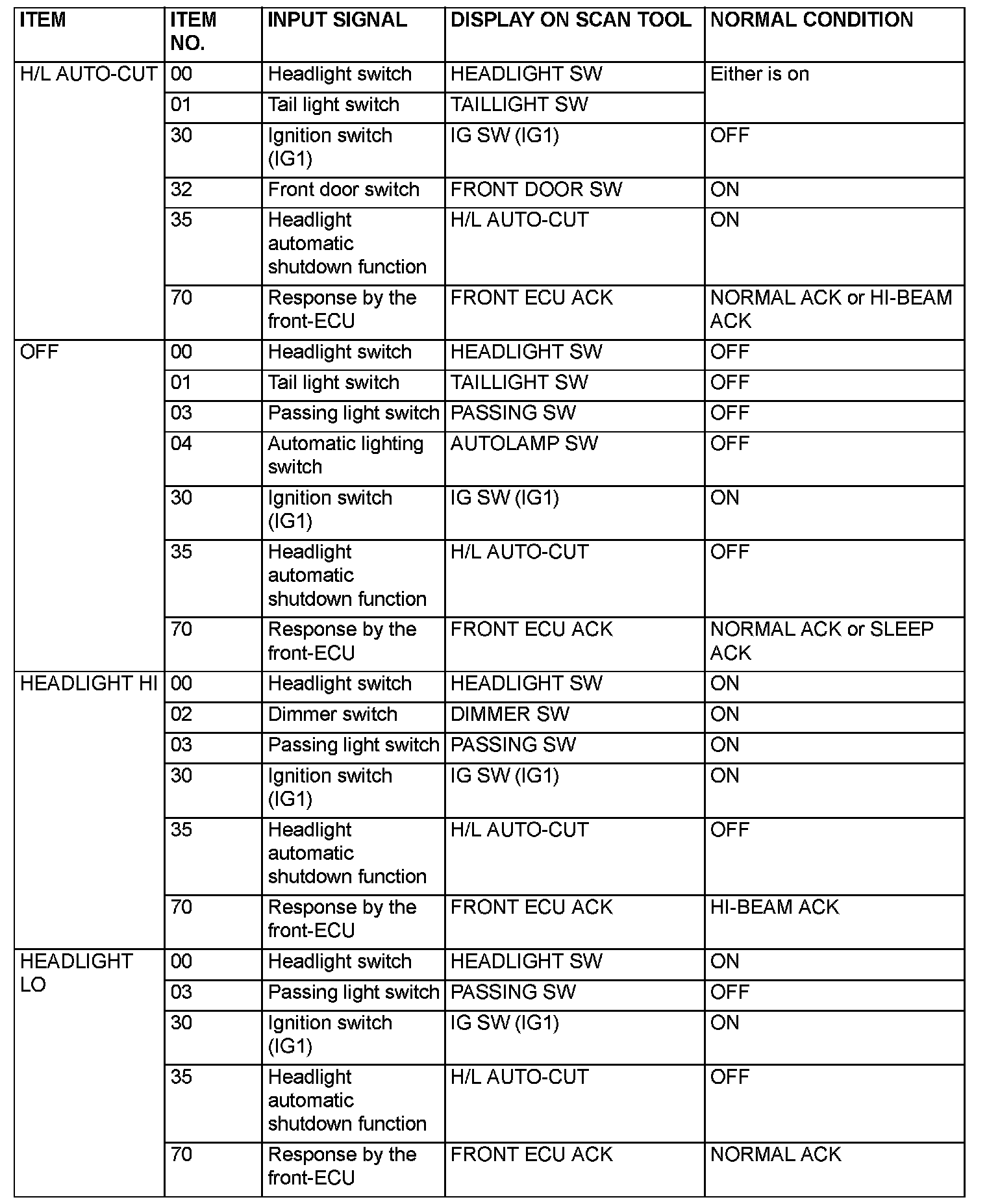

- LIGHTING

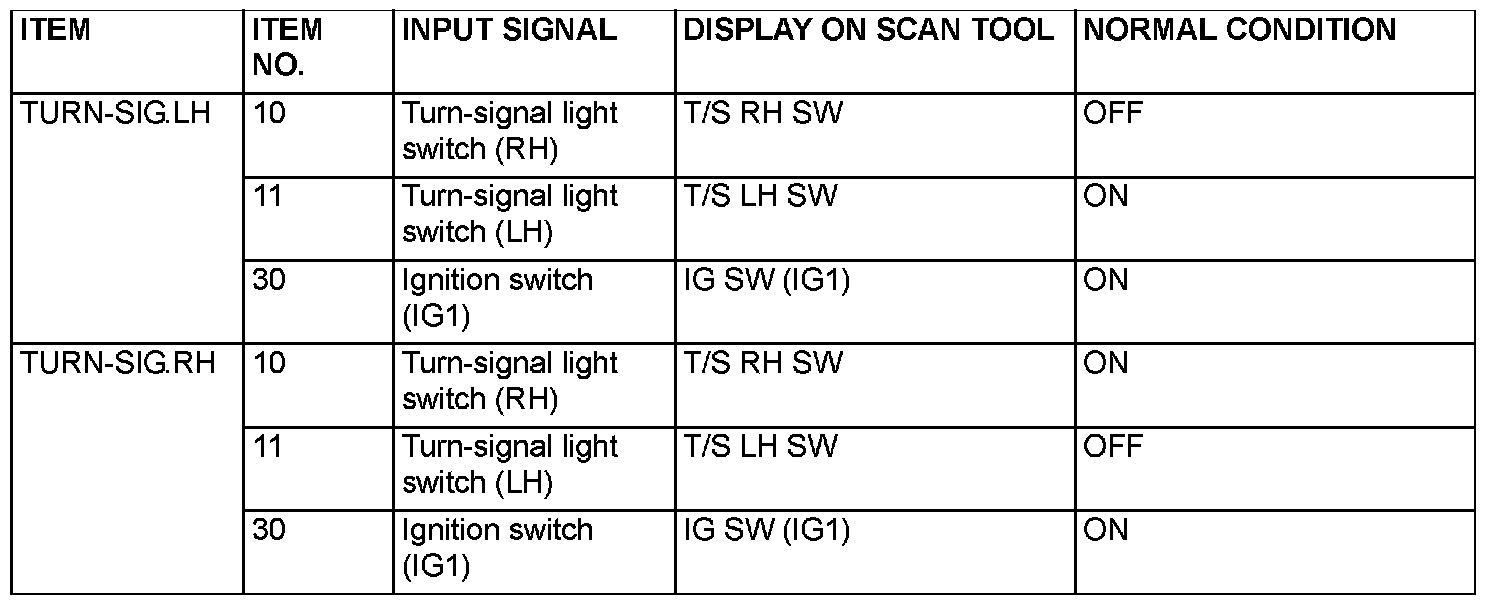

- TURN SIGNAL

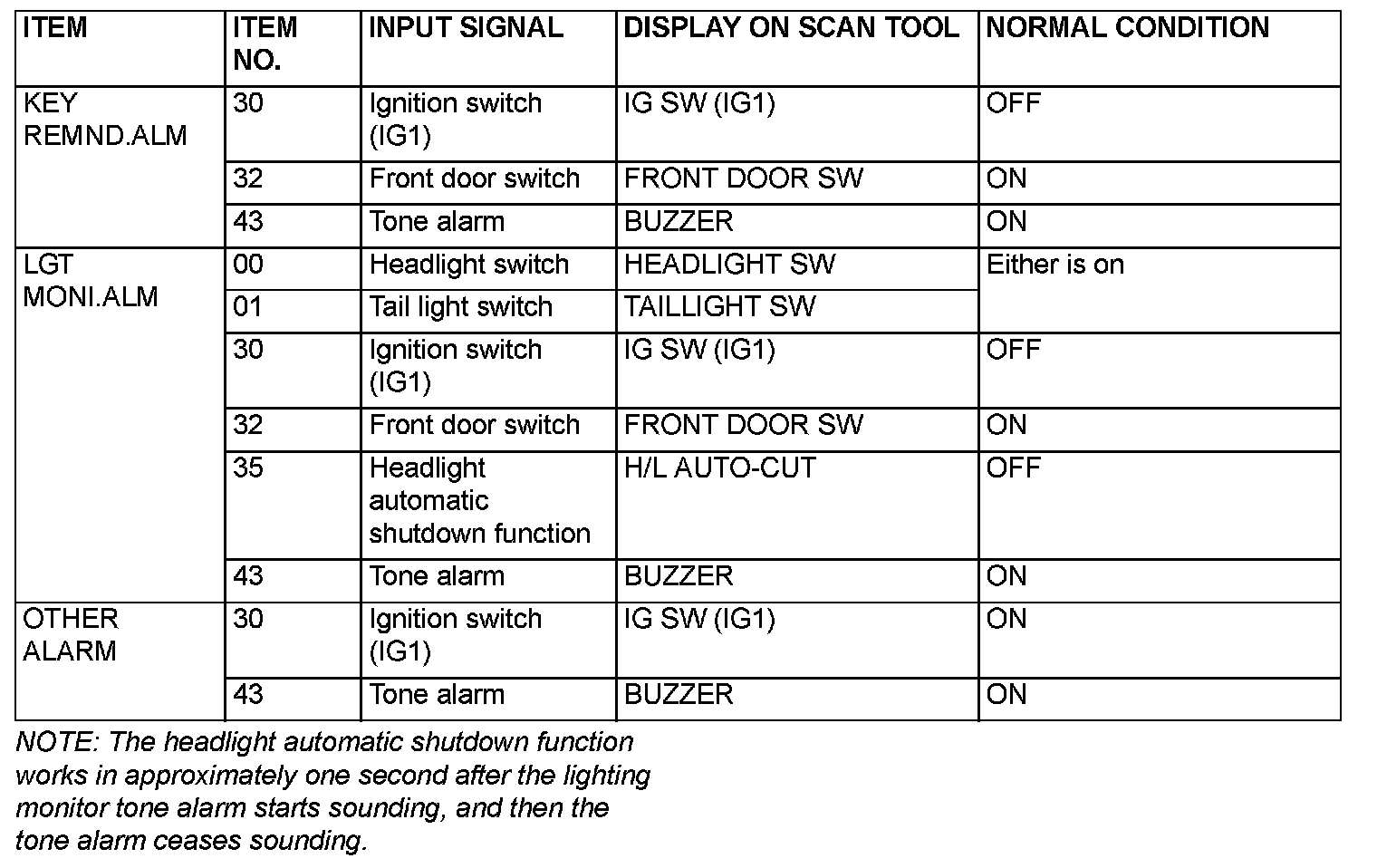

- BUZZER
