Road Test

ROAD TEST

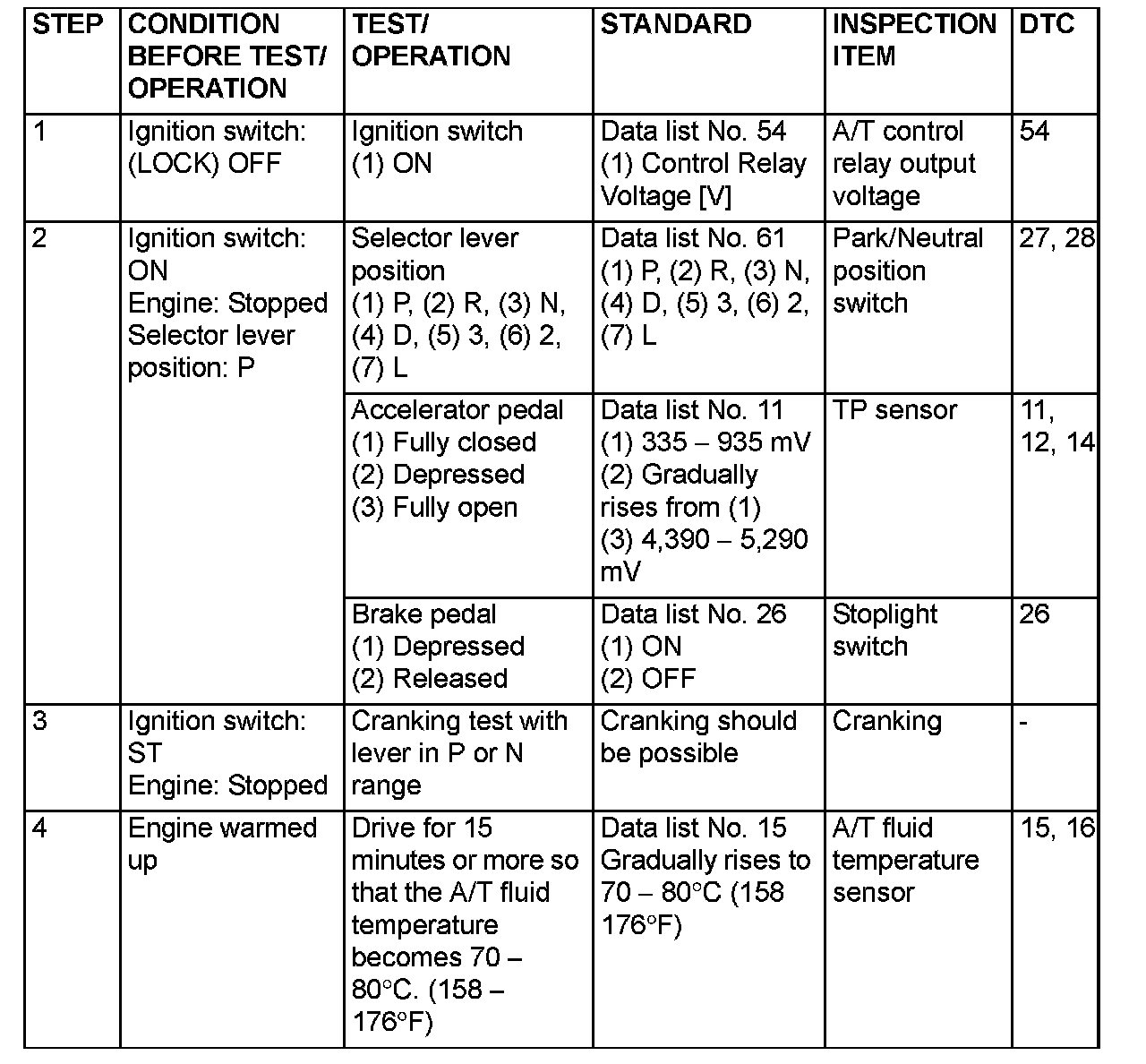

Steps 1-4:

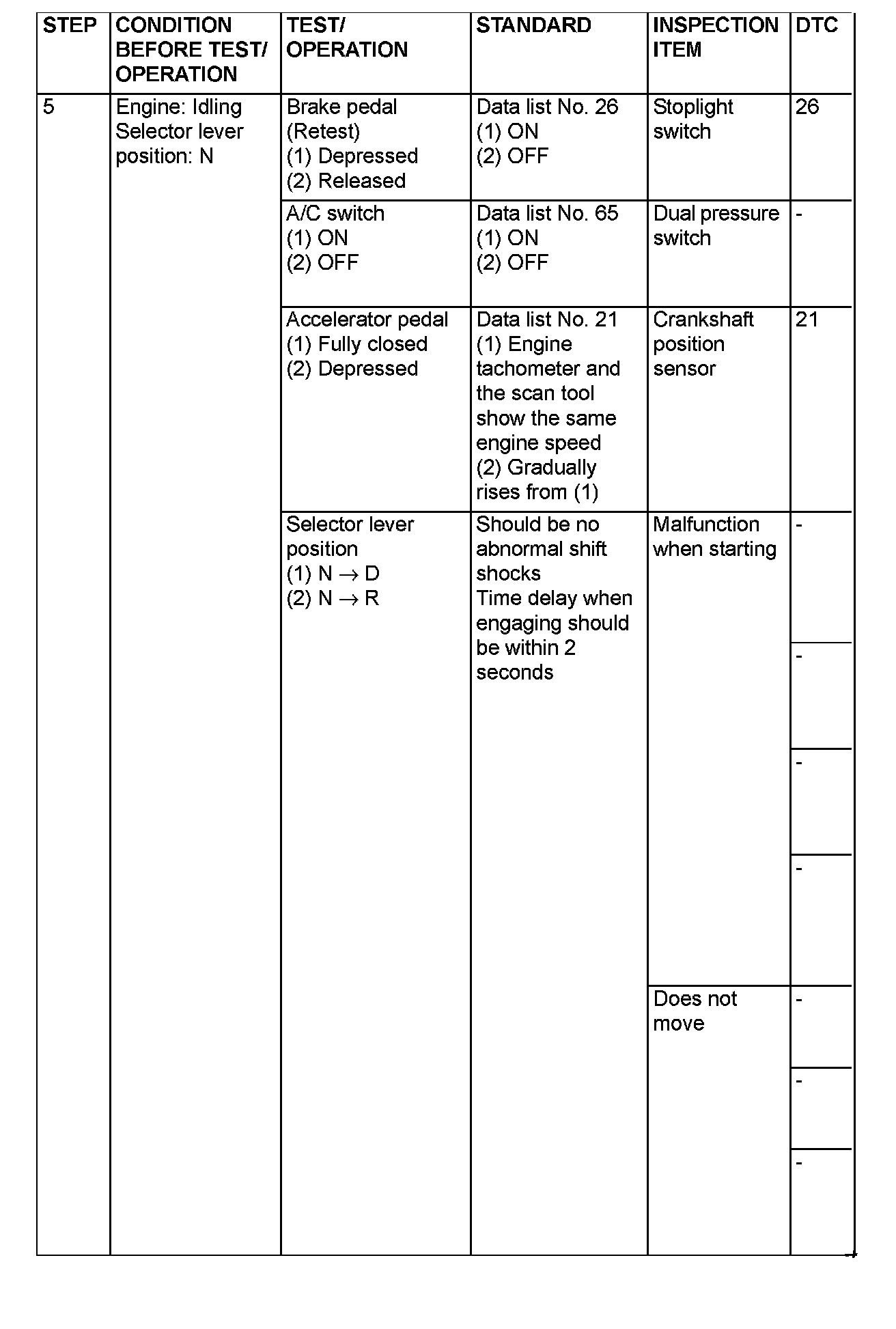

Continued Step 5:

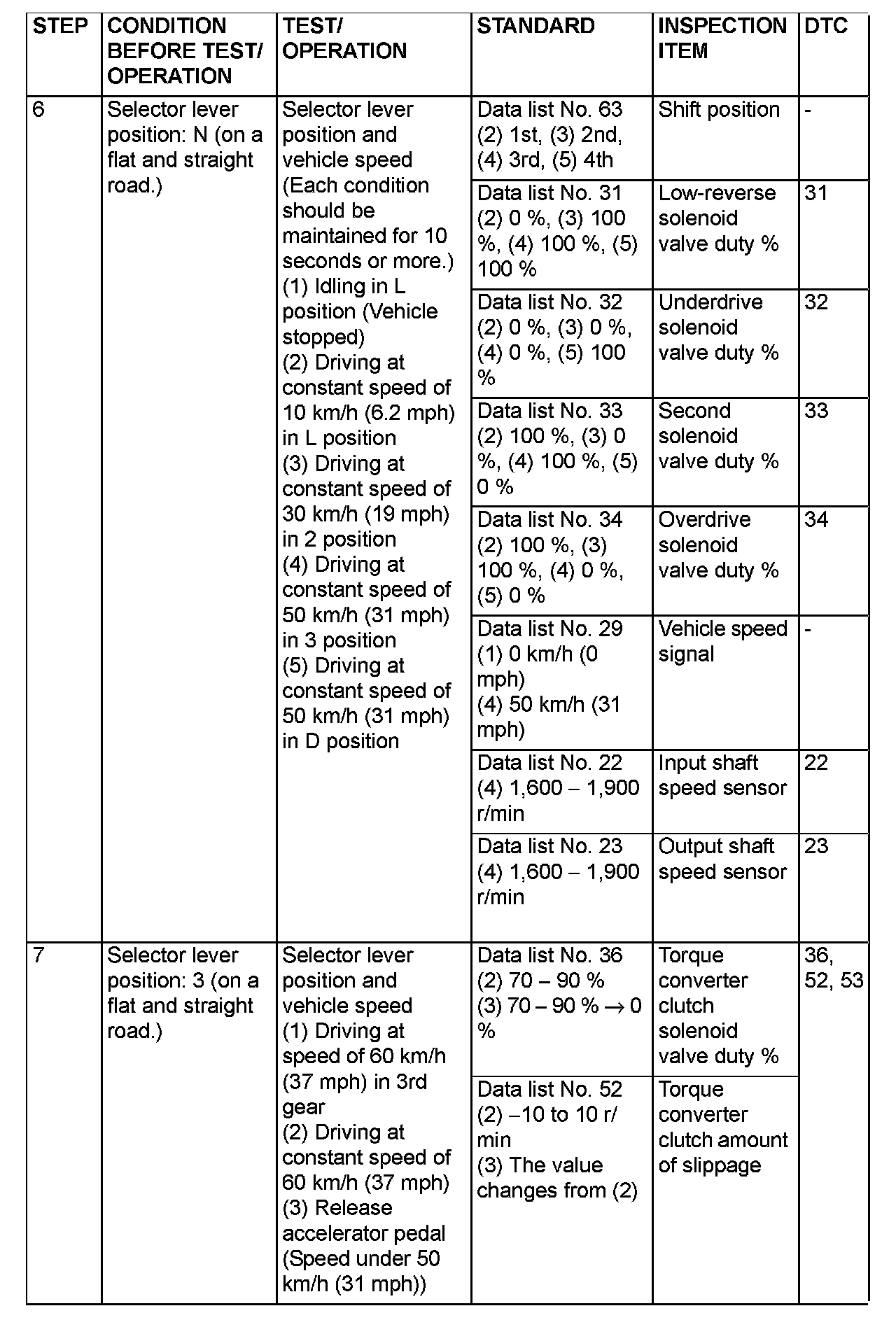

Continued Steps 6-7:

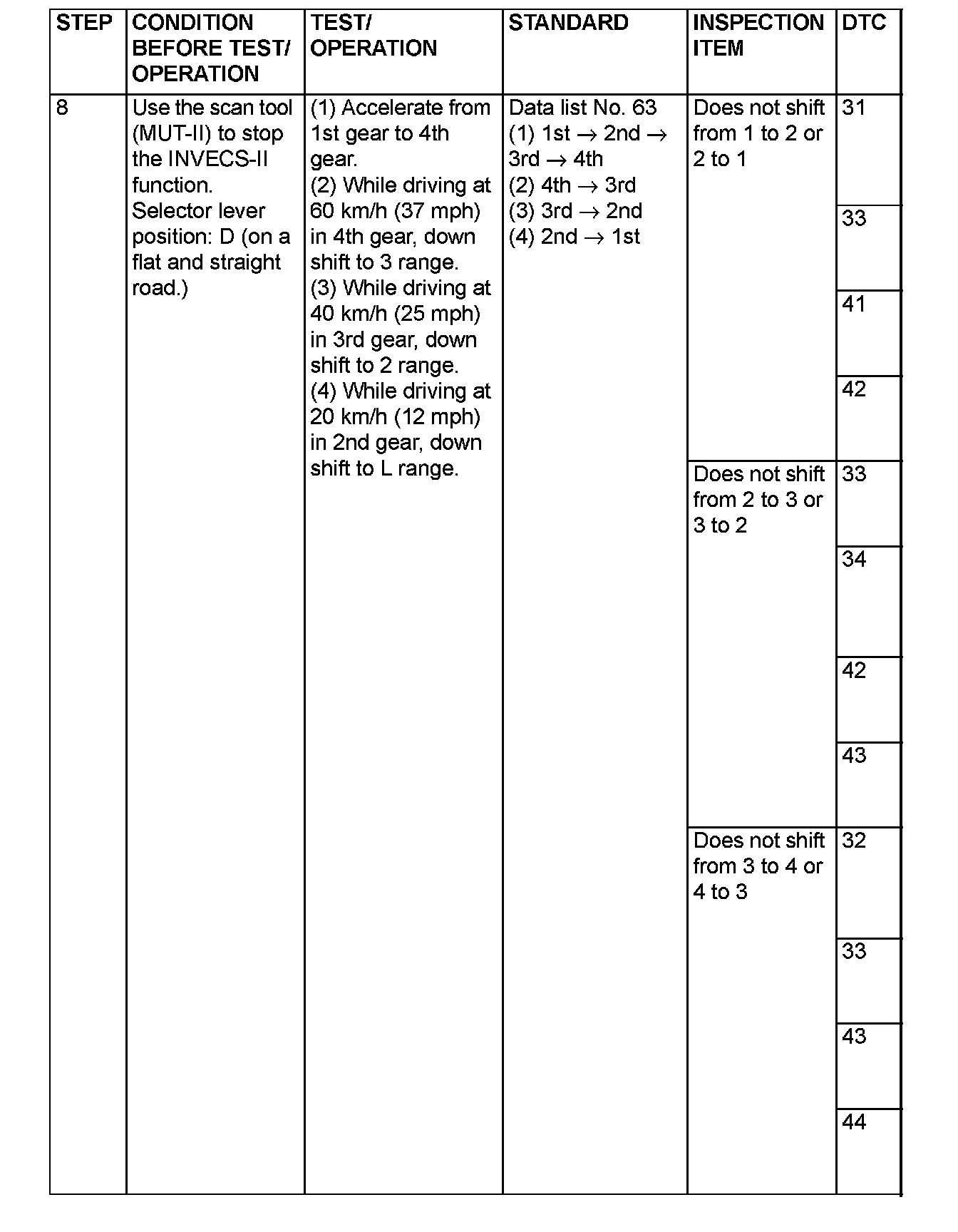

Continued Step 8:

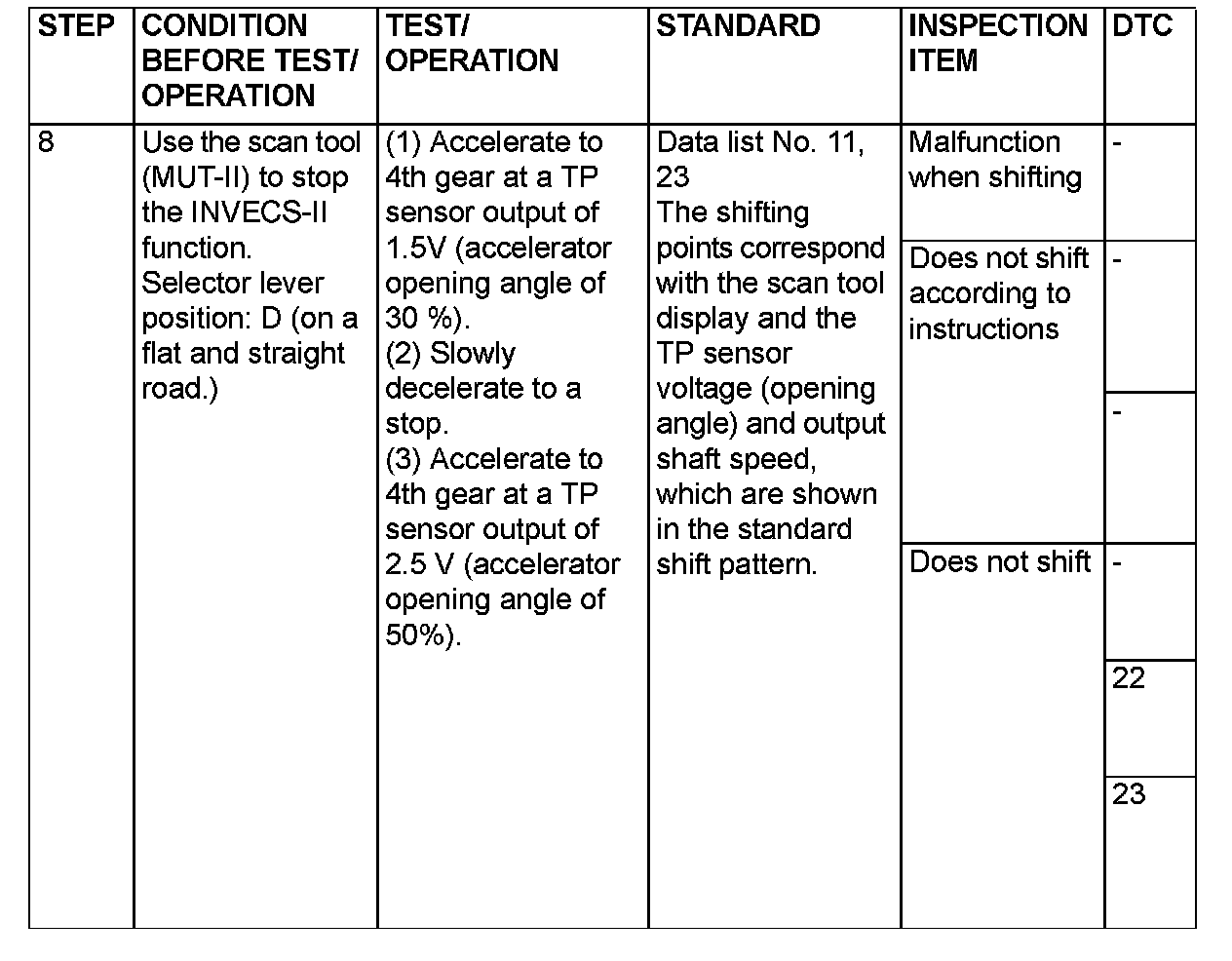

Continued Step 8:

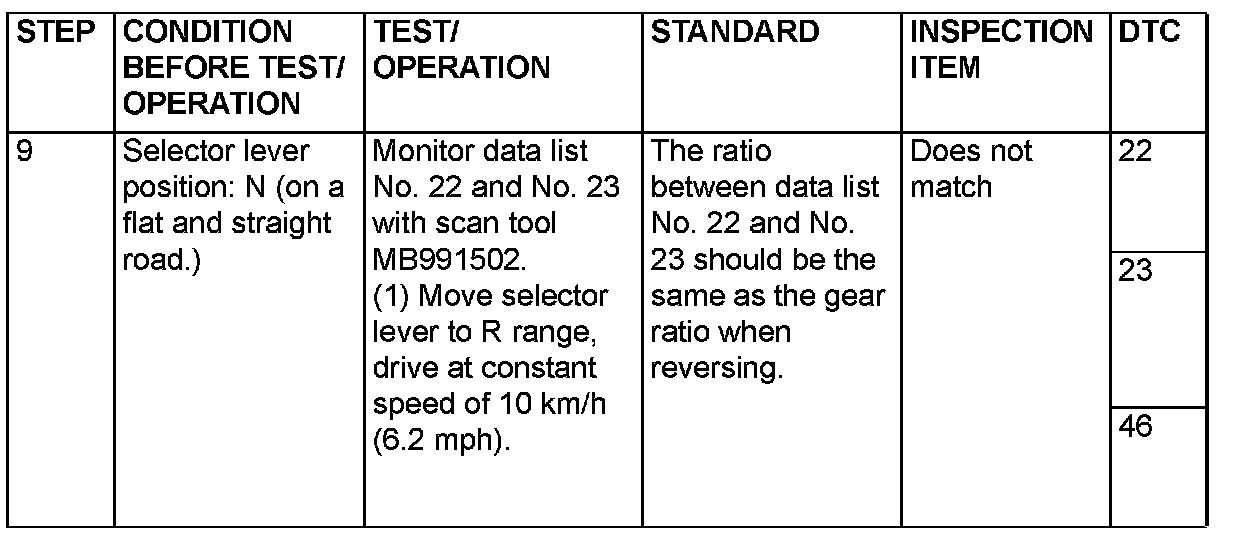

Continued Step 9:





Check using the following procedures.
