Fastener Tightening Specifications


FASTENER TIGHTENING SPECIFICATIONS

Note: The content of this article/image reflects the changes called out by TSB - 04-11-002

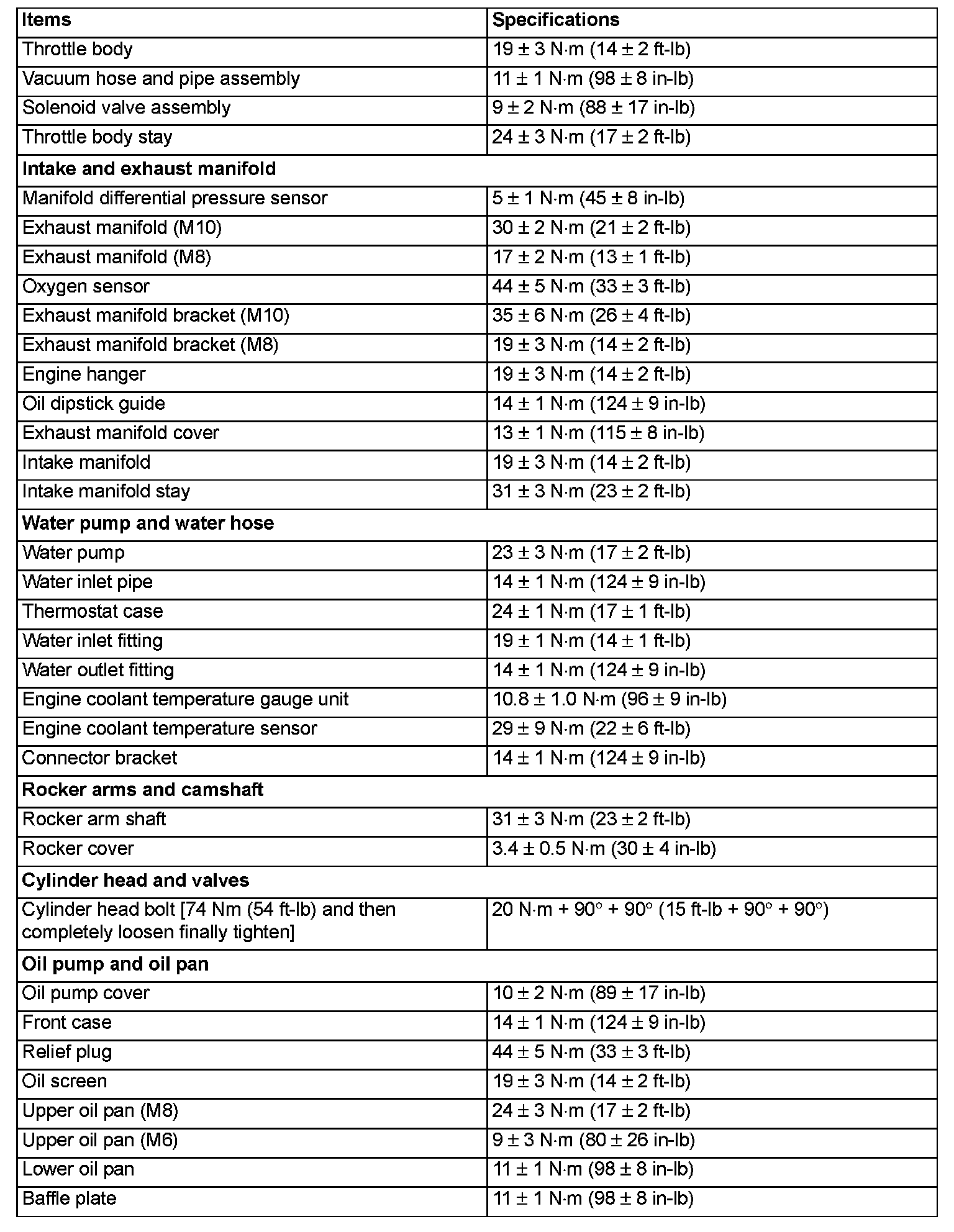

Part 1 Of 3:

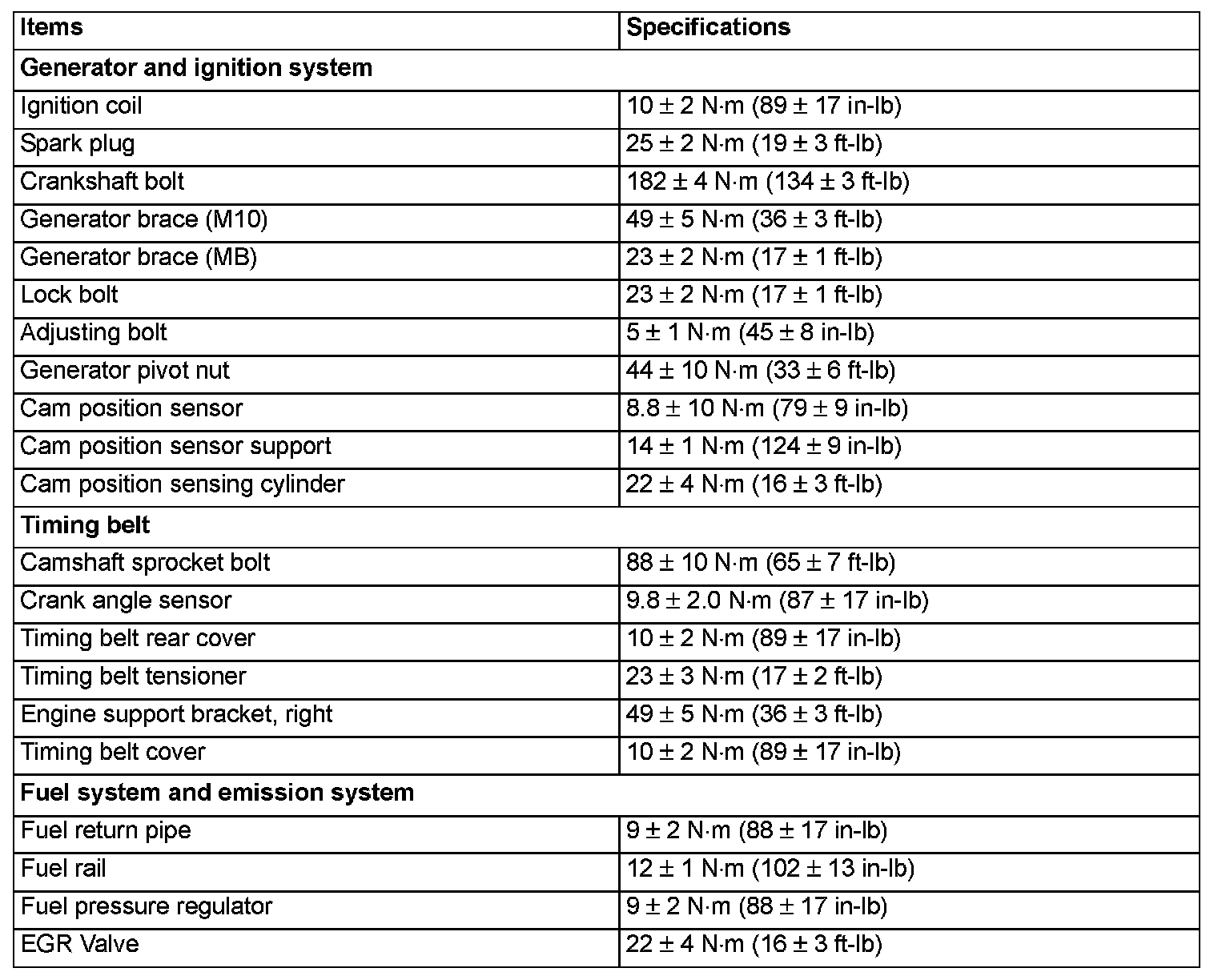

Part 2 Of 3:




Part 3 Of 3:
