Ignition Switch Lock Cylinder: Service and Repair

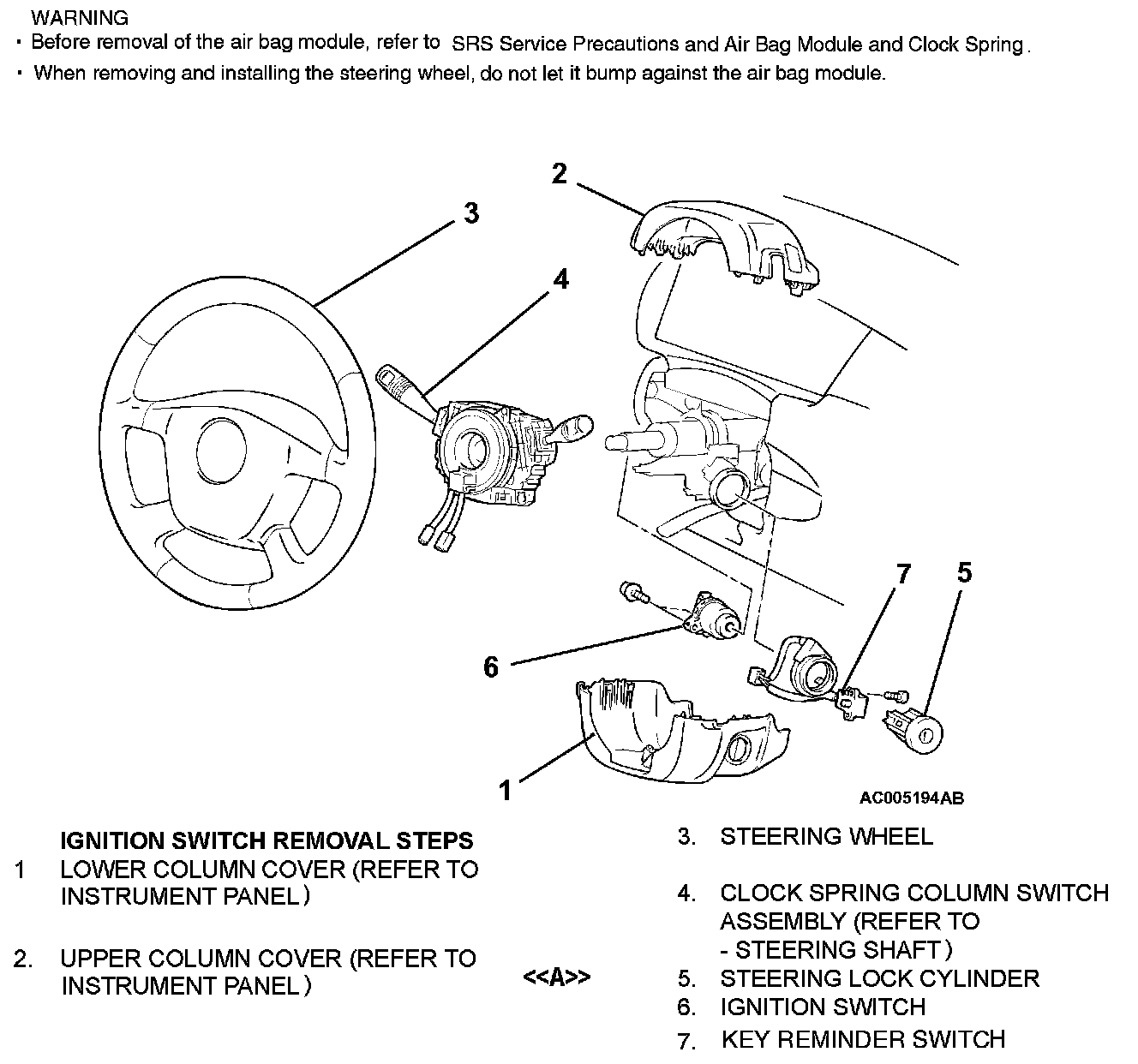

REMOVAL AND INSTALLATIONIgnition Switch:
REMOVAL SERVICE POINT
<> STEERING LOCK CYLINDER REMOVAL
1. Insert the key into steering lock cylinder to turn the ignition key to the "ACC" position.
2. Insert the locking pin with a small crosstipped screwdriver, etc., and remove the steering lock cylinder.
