Solar Sensor: Service and Repair

PHOTO SENSOR




REMOVAL AND INSTALLATION
1. Remove the floor console panel assembly.
2. Remove the ashtray
3. Remove heater, ventilation and A/C front panel and disconnect all hoses and harness connections.
4. Remove the clock.

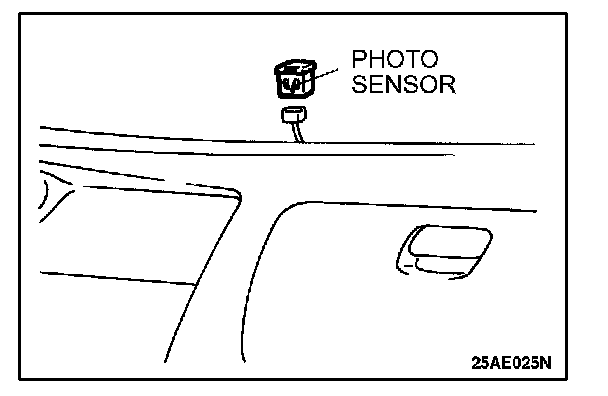

5. Remove the photo sensor.
