Component Locations

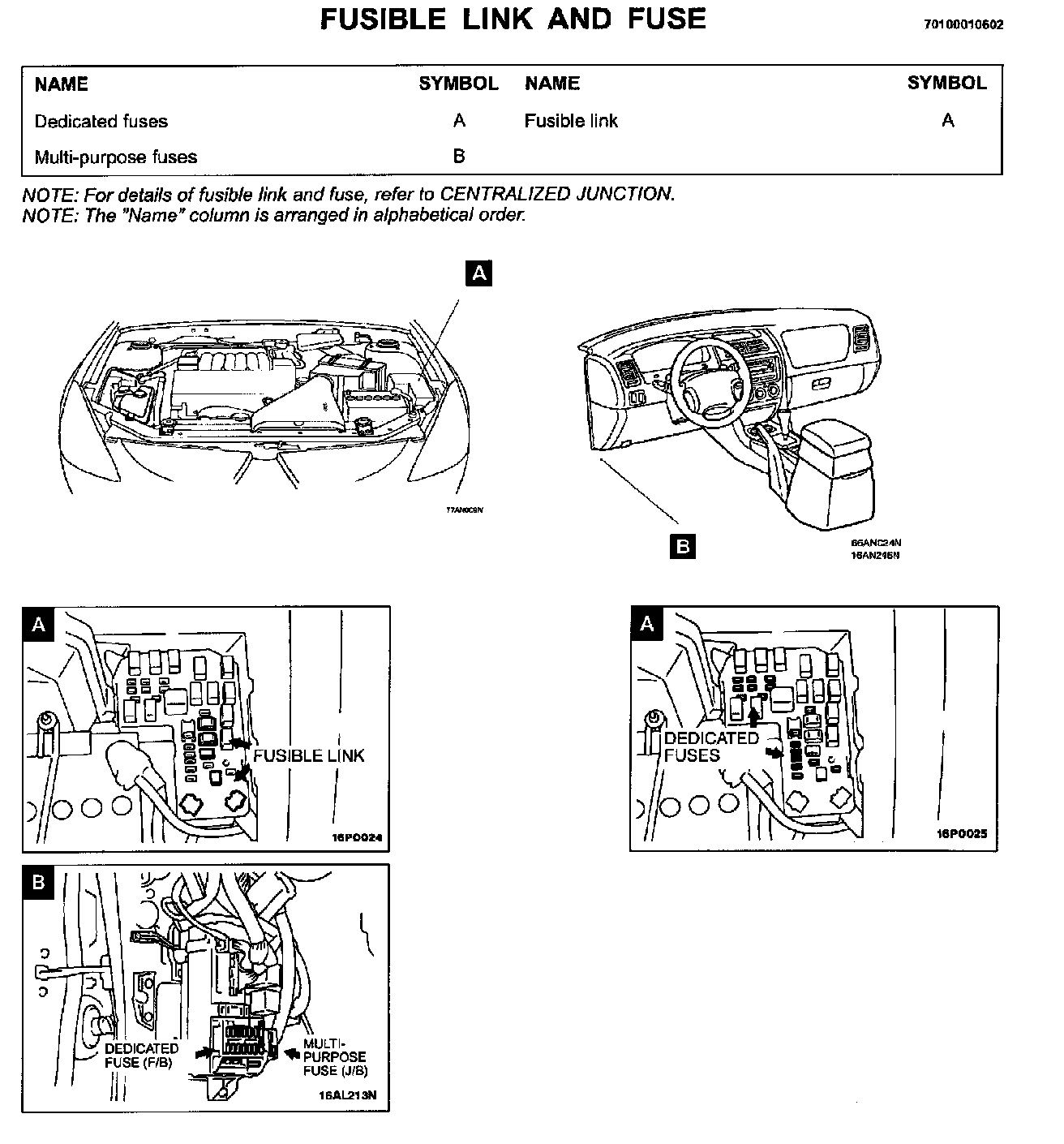

Locations:

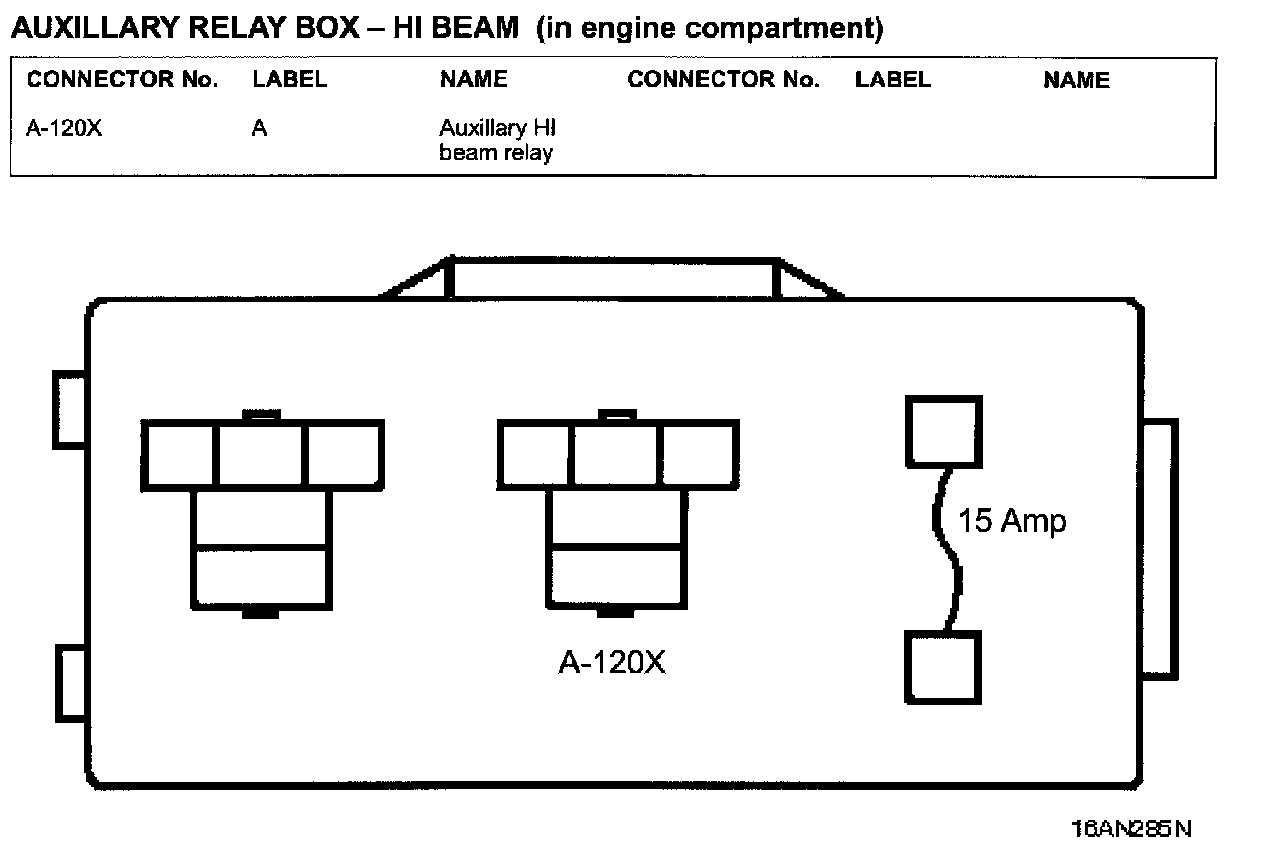

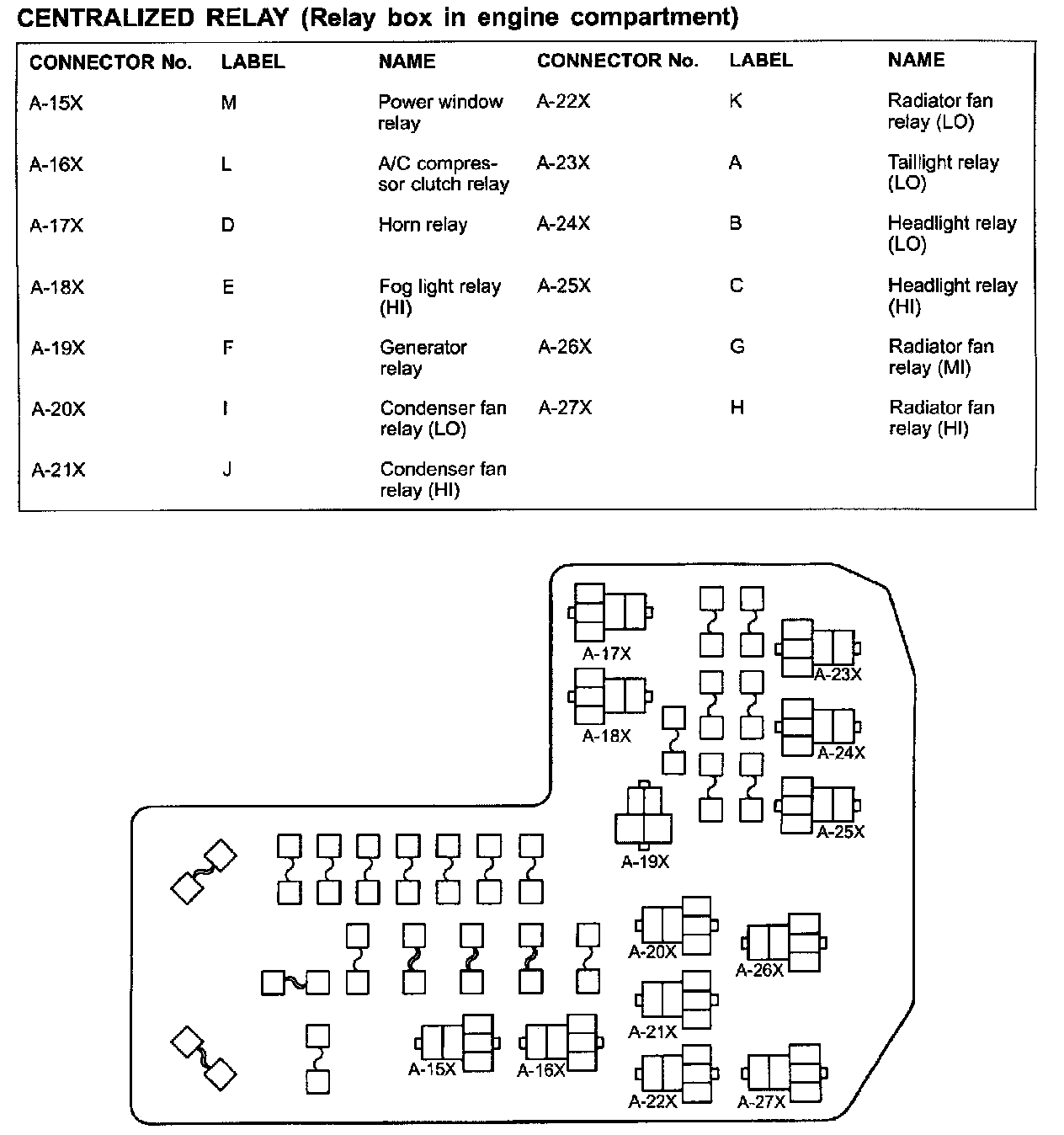

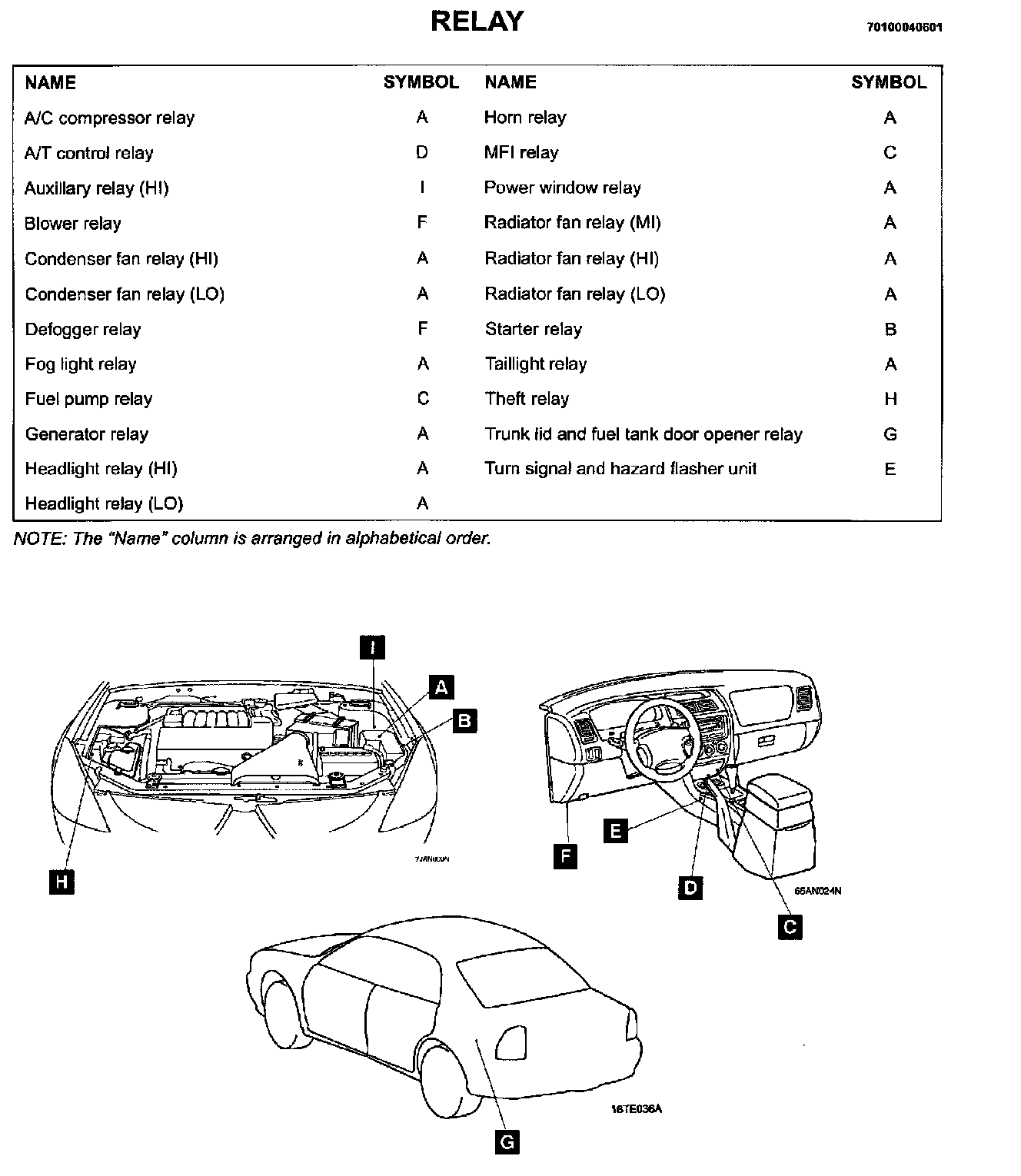

Relays (1 Of 2):

Relays (2 Of 2):

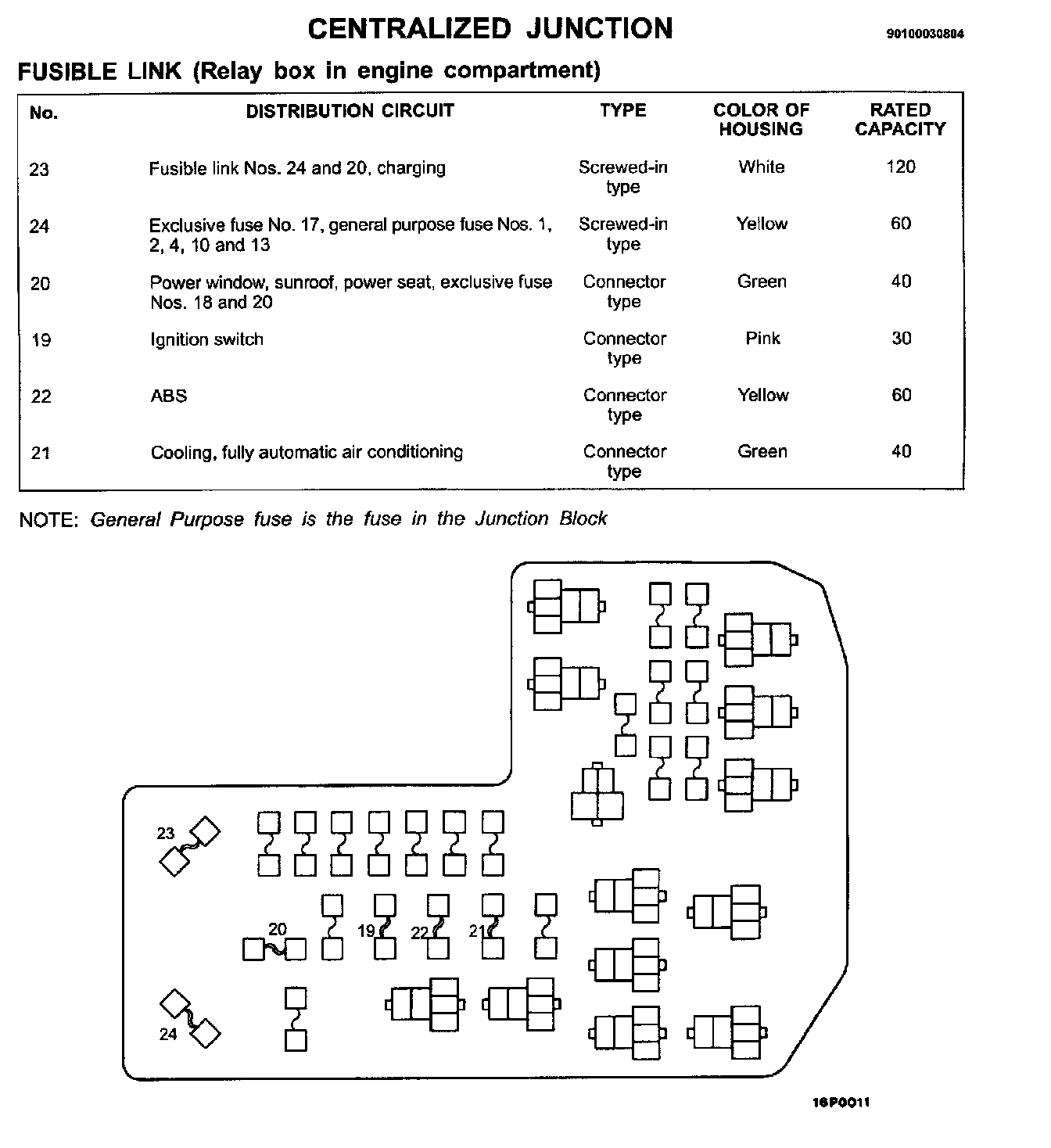

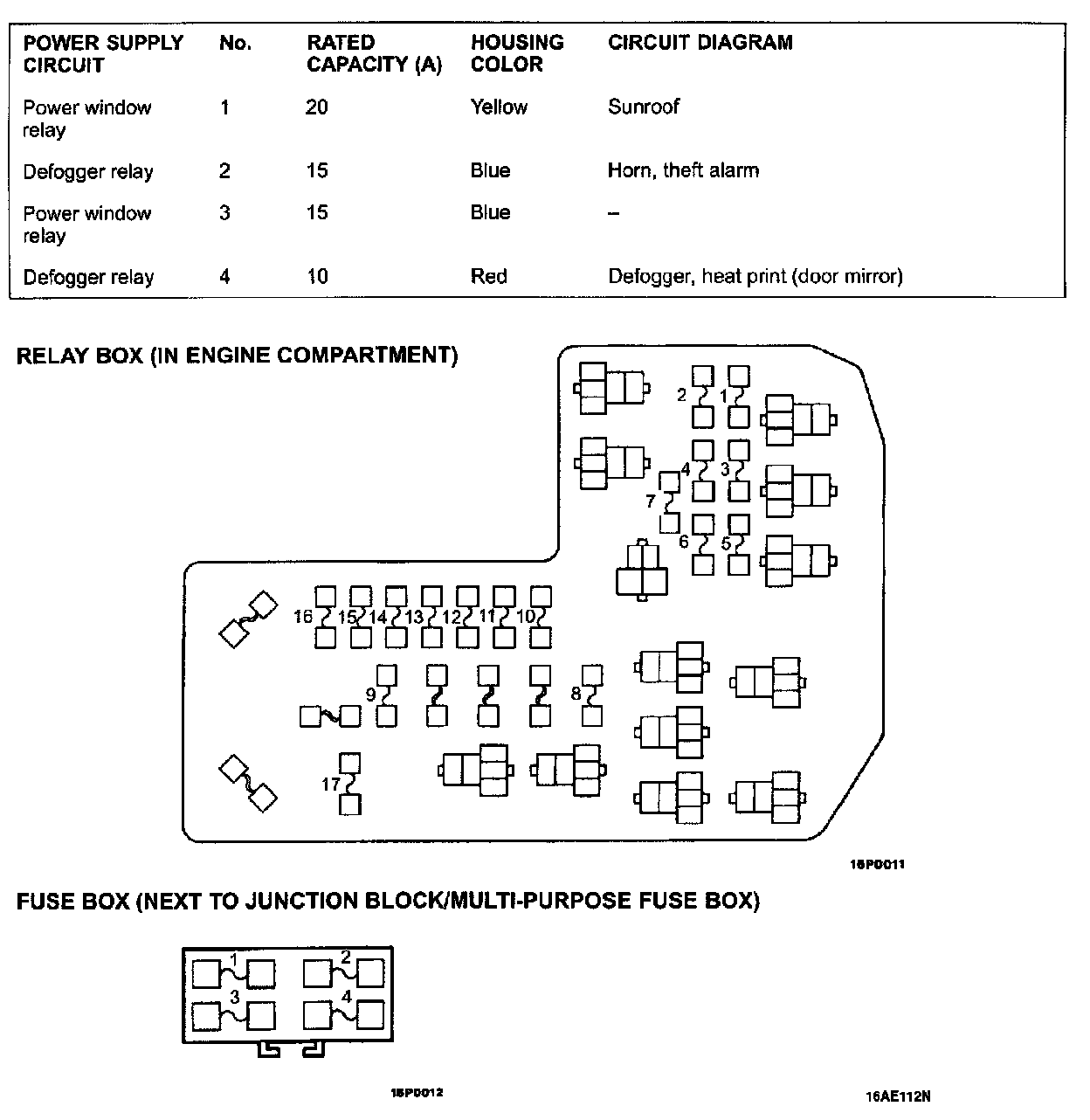

Fuse 1-17 (1 Of 2) Engine Compartment:

Fuse 1-17 (1 Of 2) Engine Compartment:

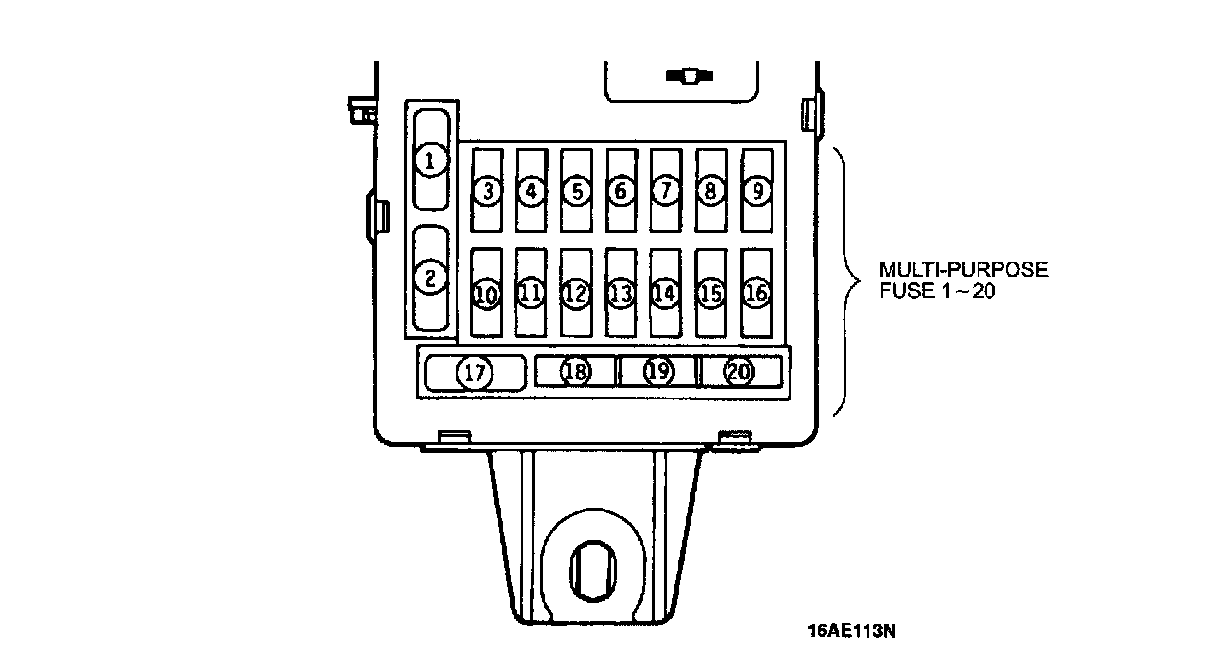

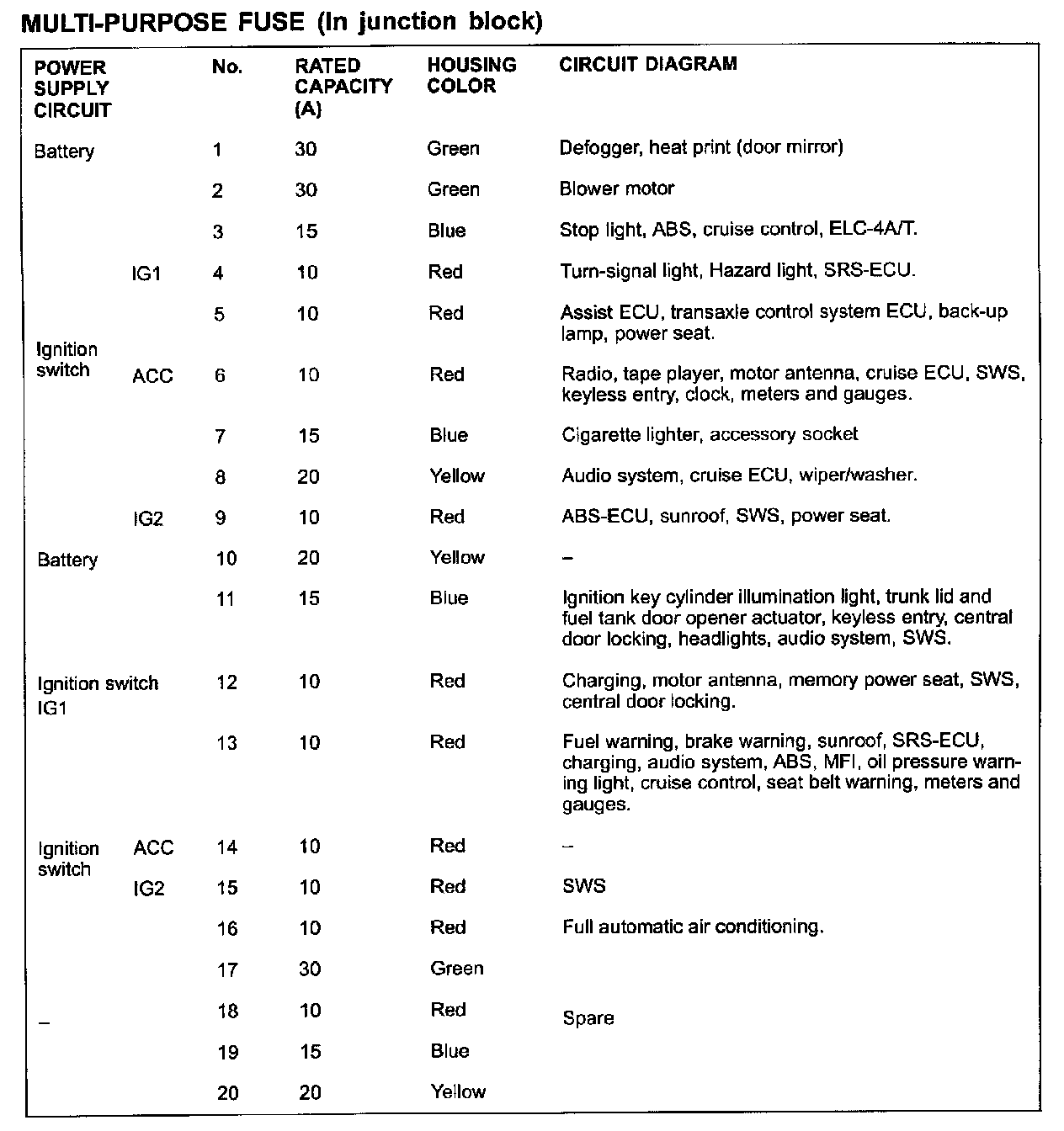

Fuse 1-20 (1 Of 2) Junction Block:

Fuse 1-20 (2 Of 2) Junction Block:
