Engine Controls - MFI System Fuse 14 Addition

No.: TSB-05-54-005

DATE: May, 2005

MODEL:
2004 Diamante

SUBJECT:
MFI SYSTEM FUSE # 14 - SERVICE MANUAL REVISION

PURPOSE

The affected service manual pages are missing fuse # 14. Fuse # 14 is added to the corrected Dedicated Fuse chart and Power Distribution circuit diagram contained in this bulletin.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.

AFFECTED VEHICLES
2004 Diamante

AFFECTED SERVICE MANUALS
2004 Diamante, Volume 2, pages 90-13 and 90-20

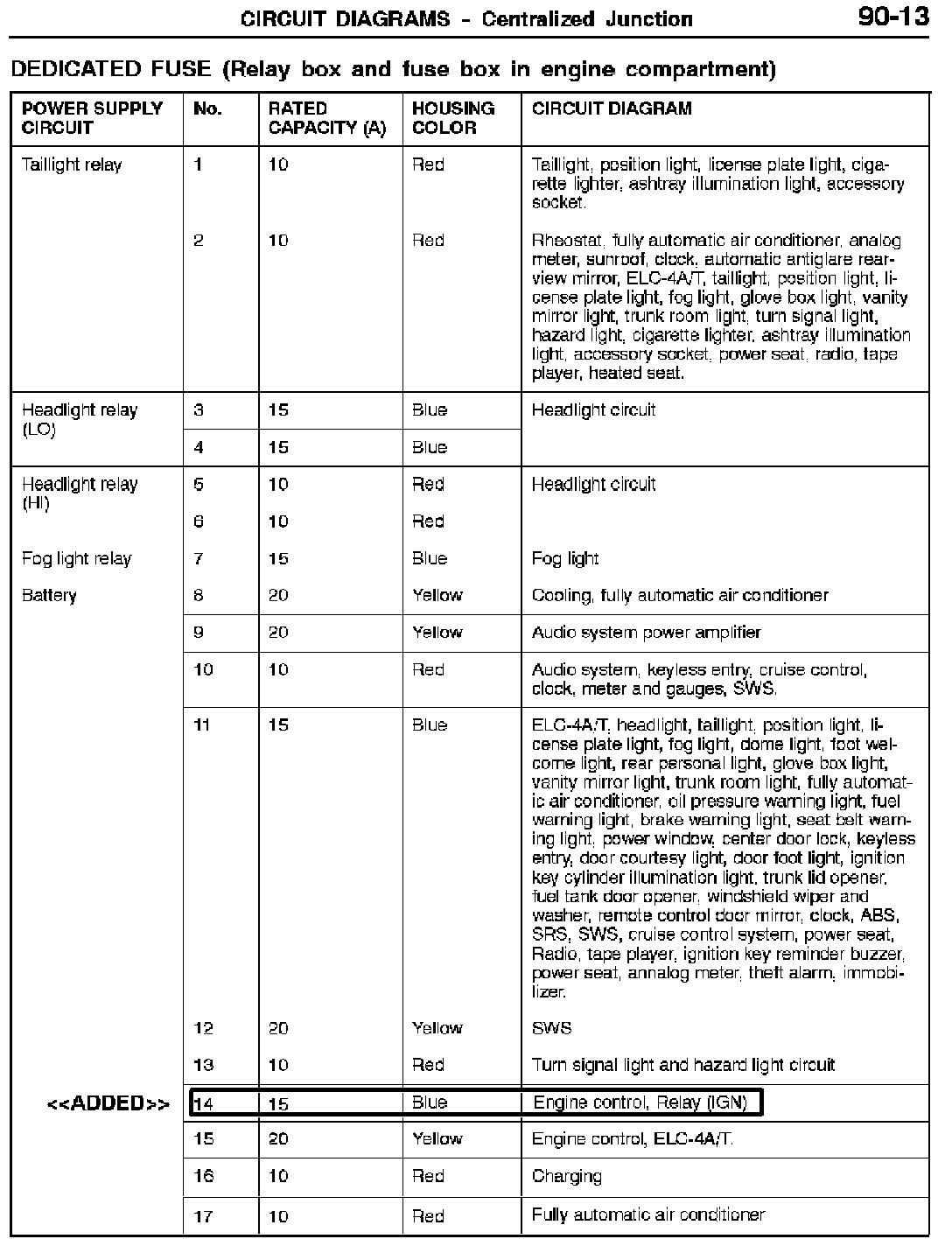

2004 Diamante, page 90-13





2004 Diamante, page 90-20
