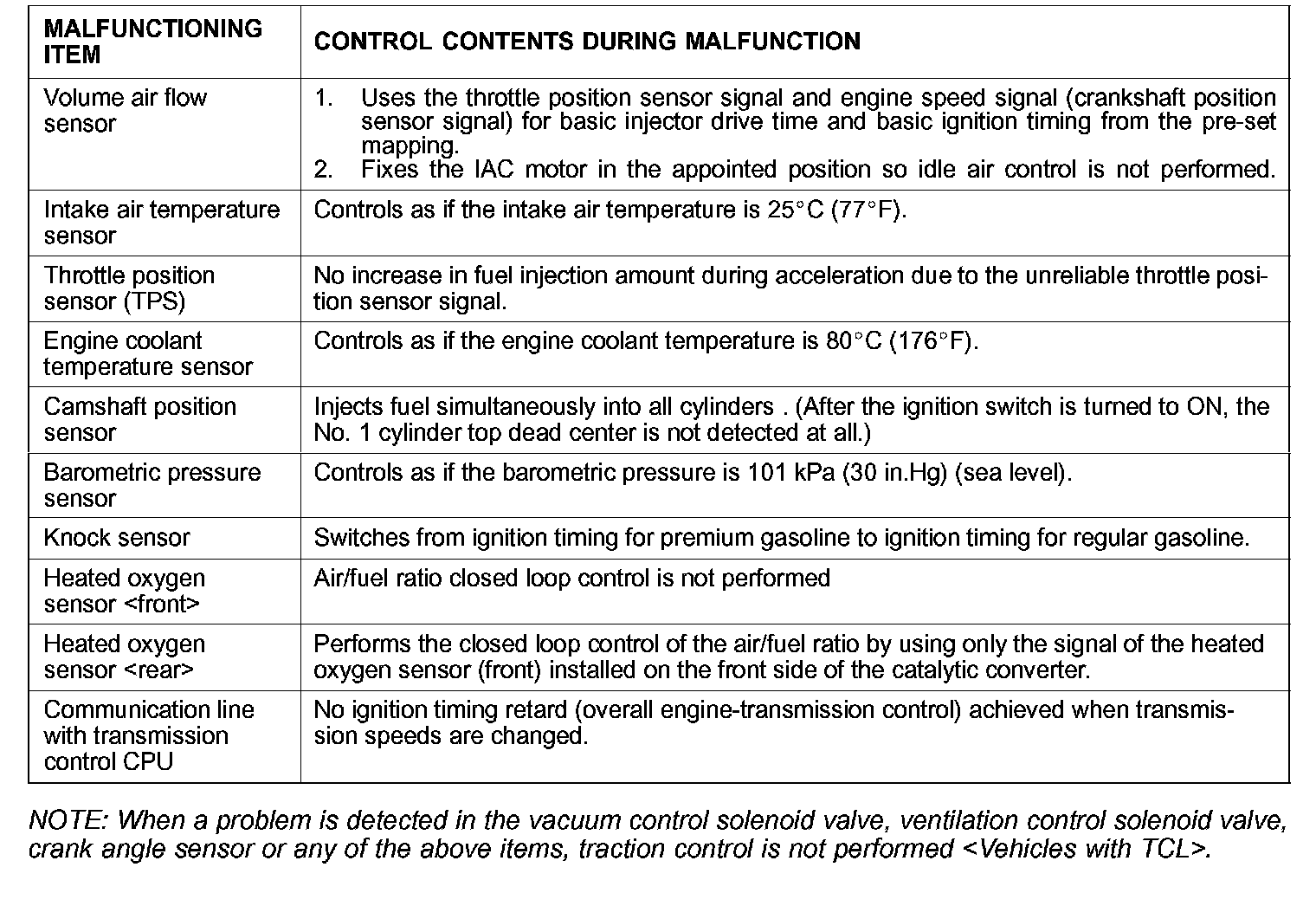

Fail-Safe/Backup Function Table

FAIL-SAFE/BACKUP FUNCTION TABLE




When the main sensor malfunctions are detected by the diagnostic test mode, the vehicle is controlled by means of the following defaults.
