Actuator Test Reference Table

ACTUATOR TEST REFERENCE TABLE

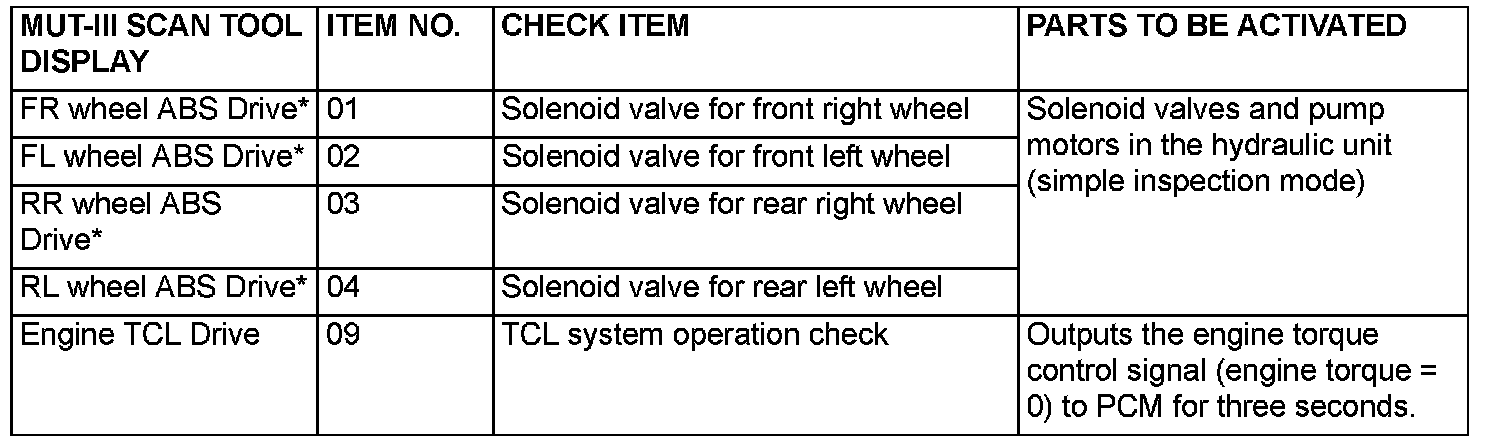

Actuator Test Reference Table:

The scan tool activates the given actuators for testing.

NOTE: Since the TCL system is controlled with the same ABS/TCL-ECU used to control the ABS system, the FR, FL, RR or RL Wheel ABS Drive testing items (No.01 to 04) used only for the ABS system also appear.
