Data List Reference Table

DATA LIST REFERENCE TABLE

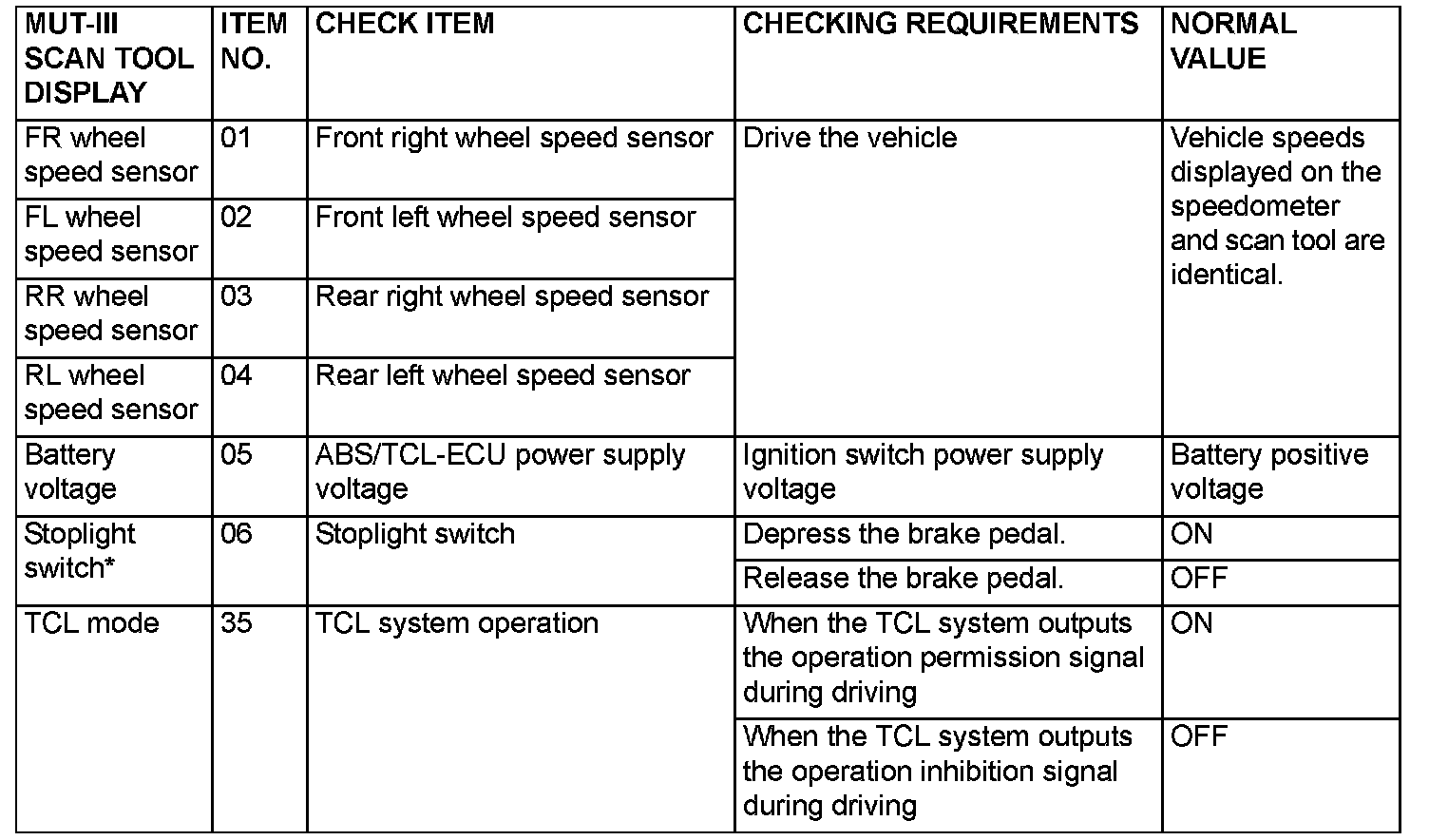

Data List Reference Table:

The given items can be read by the scan tool from the ABS/TCL-ECU input data.

NOTE: Since the TCL system is controlled with the same ABS/TCL-ECU used to control the ABS system, the stoplight switch check item (No. 6) used only for the ABS system also appear.
