Home >> Mitsubishi >> 2004 >> Galant L4-2.4L (4G69) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> System Diagram >> Transaxle Connection >> F4A5A

F4A5A

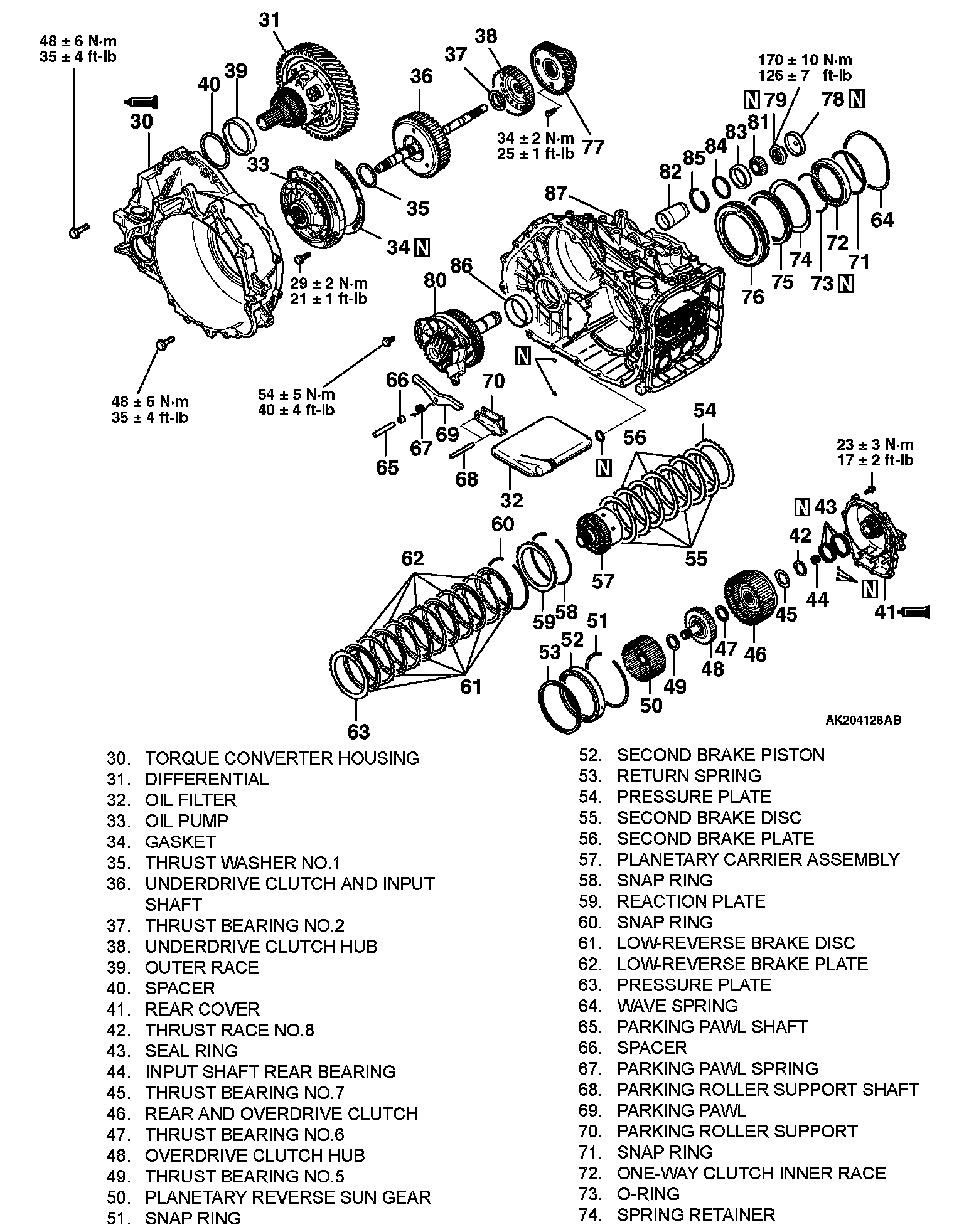

Part 1 Of 3:

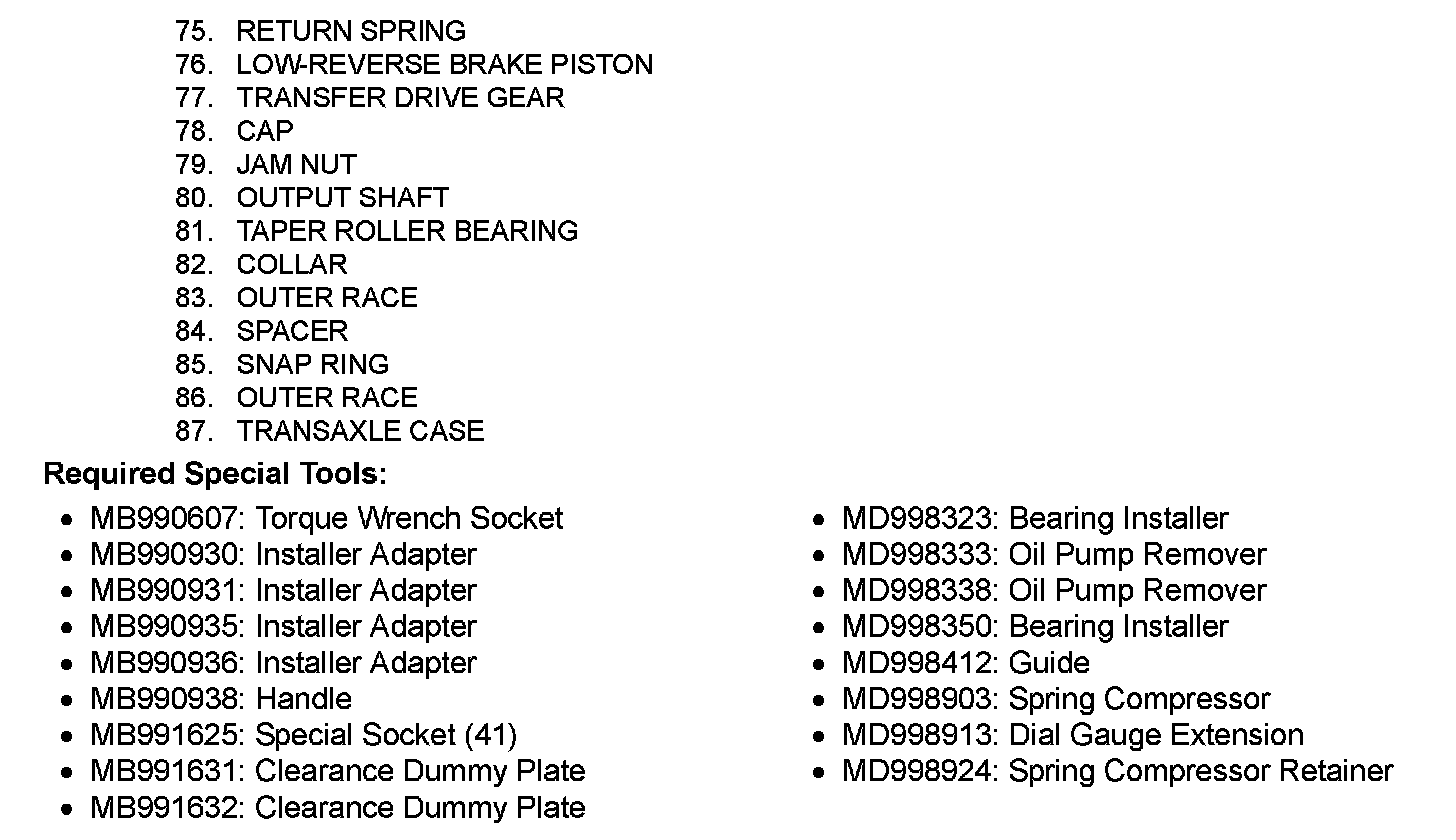

Part 2 Of 3:

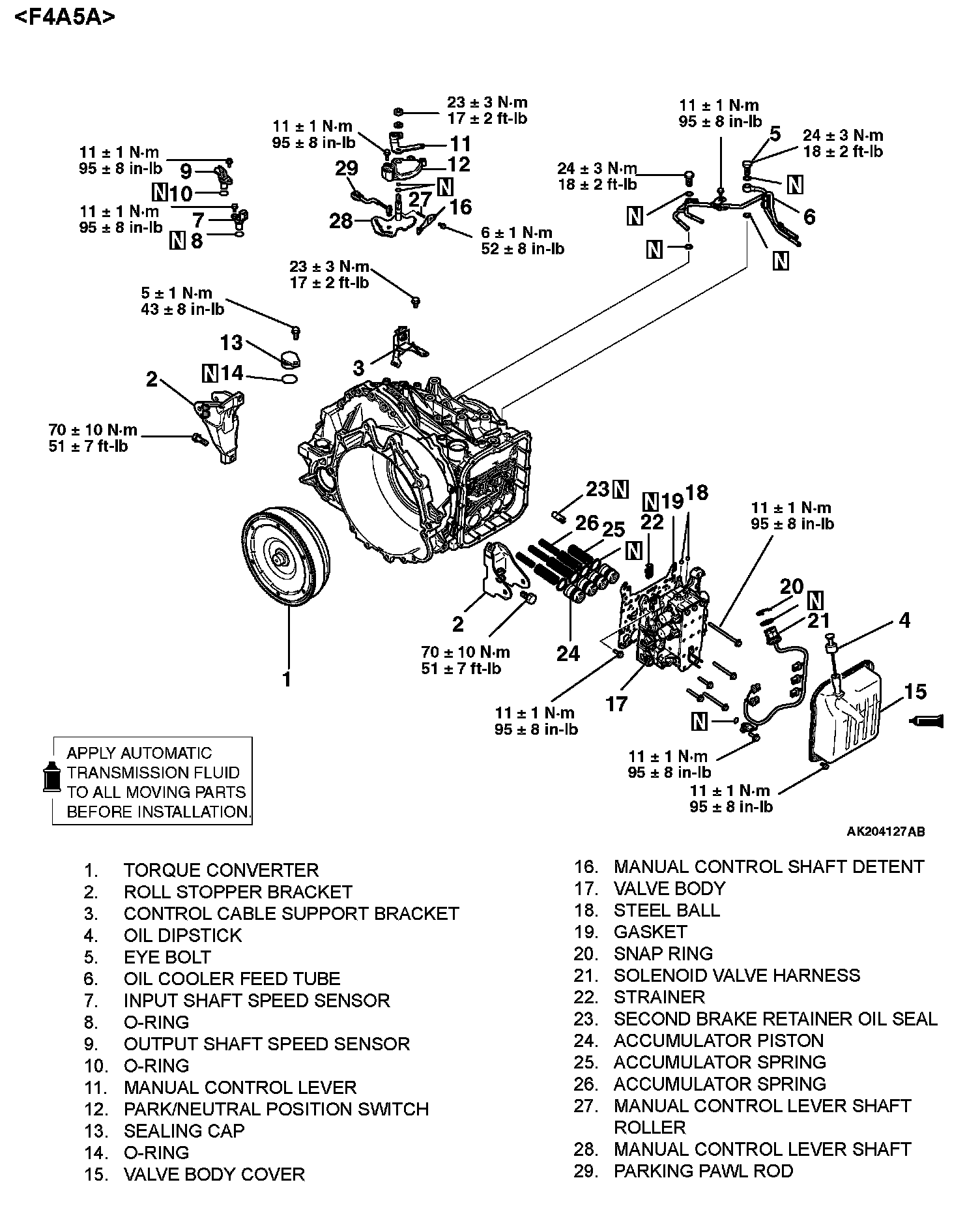

Part 3 Of 3:
