Oxygen Sensor: Service and Repair

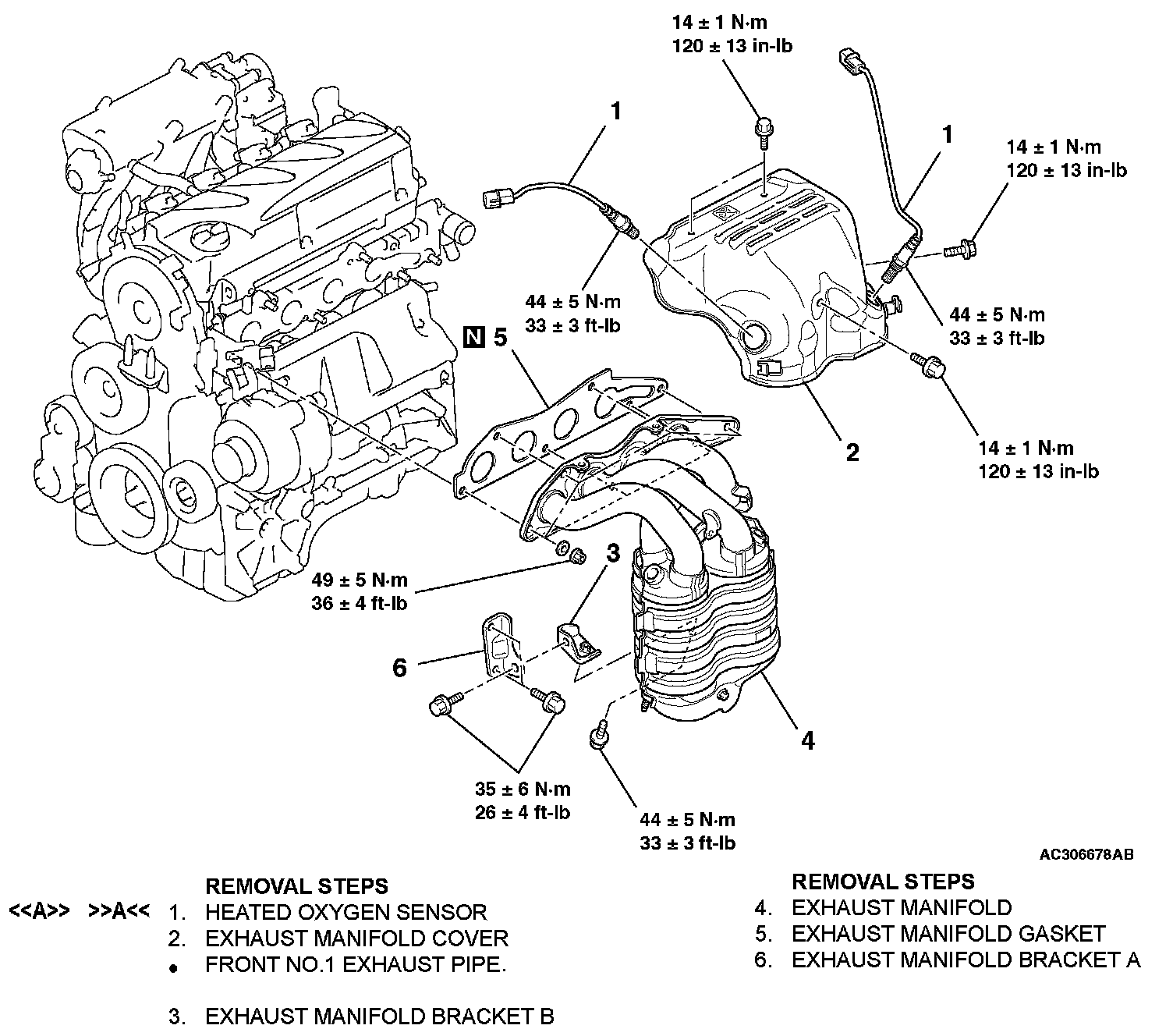

EXHAUST MANIFOLD




REMOVAL AND INSTALLATION

Required Special Tool:
- MB991953: Oxygen sensor wrench

REMOVAL SERVICE POINT




<> HEATED OXYGEN SENSOR REMOVAL

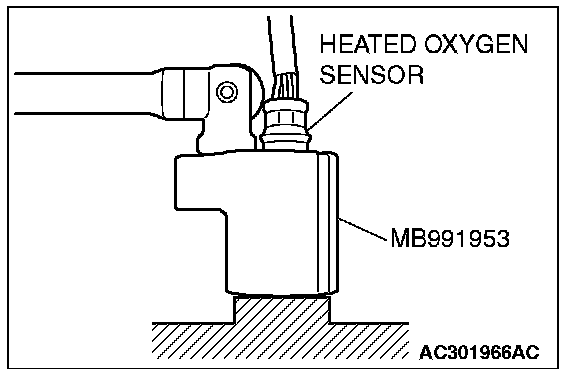

Use special tool MB991953 to remove the heated oxygen sensor.

INSTALLATION SERVICE POINT




>>A<< HEATED OXYGEN SENSOR INSTALLATION

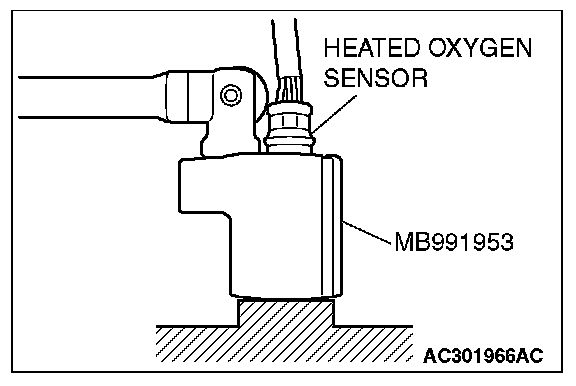

Use special tool MB991953 to install the heated oxygen sensor.
