Camshaft, Engine

CAMSHAFT AND VALVE STEM SEAL REPLACEMENT W/ RELATED COMPONENTS

CAUTION:
*Remove and assemble the marked parts in each cylinder unit.

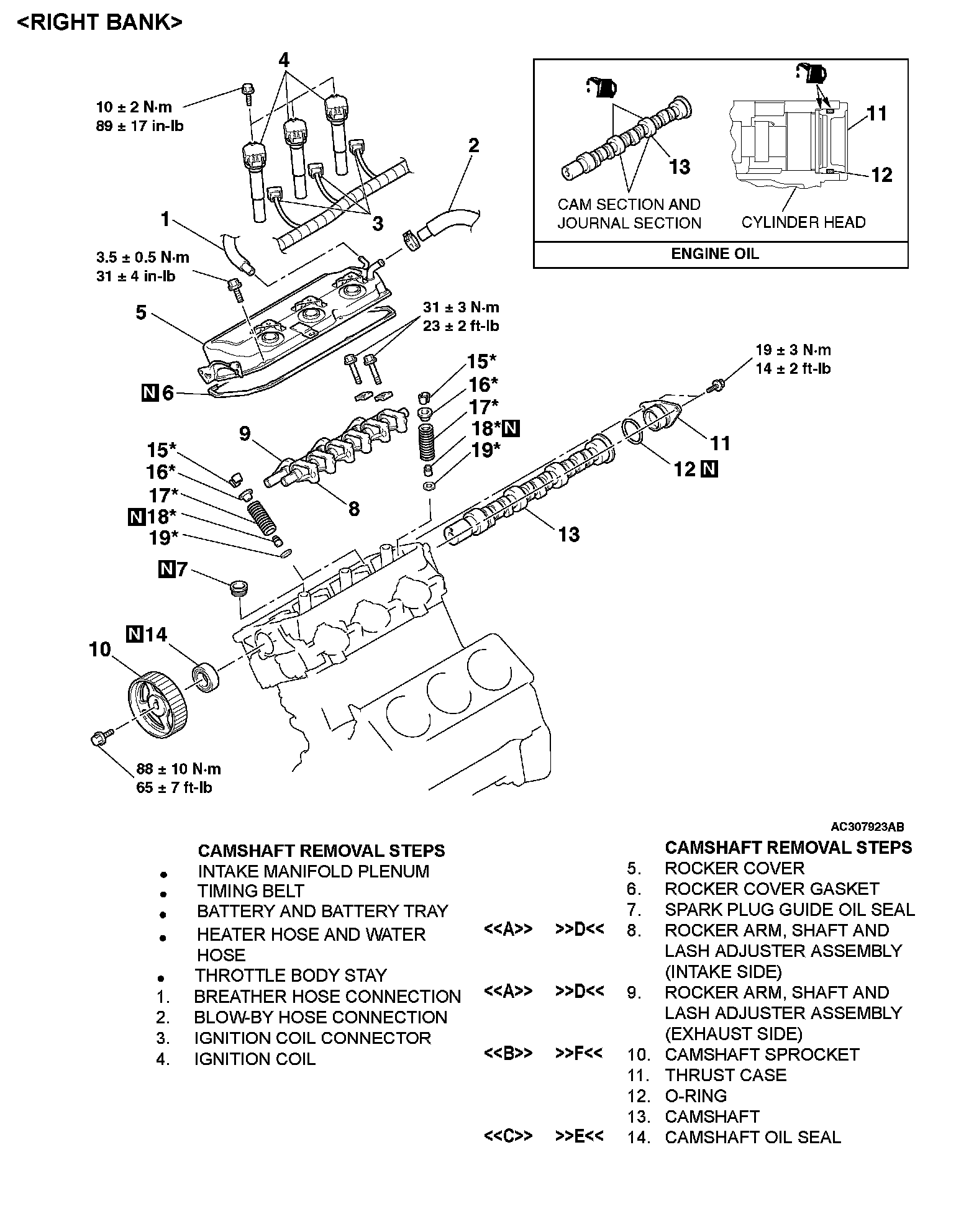

Part 1 Of 2:

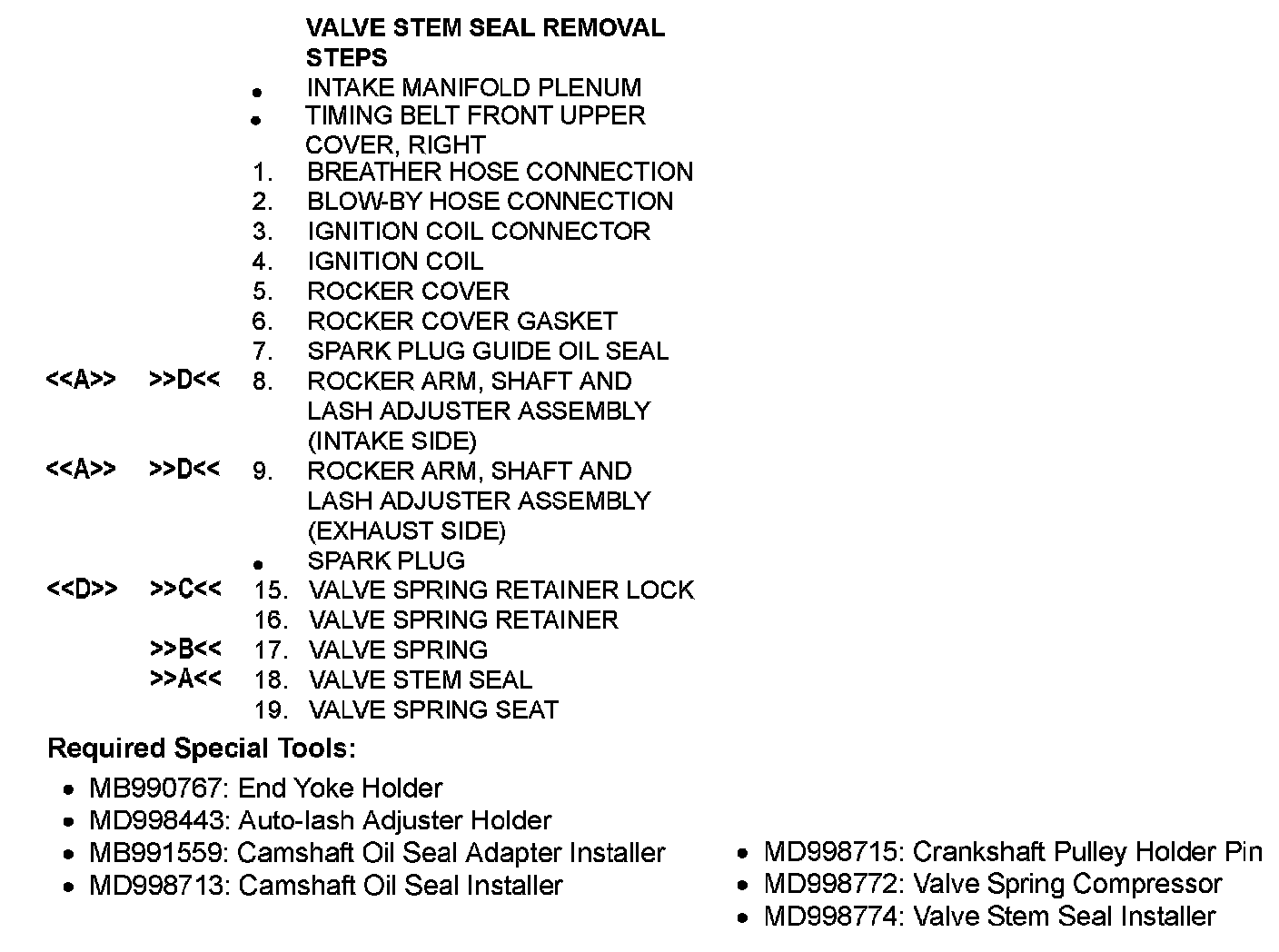

Part 2 Of 2:

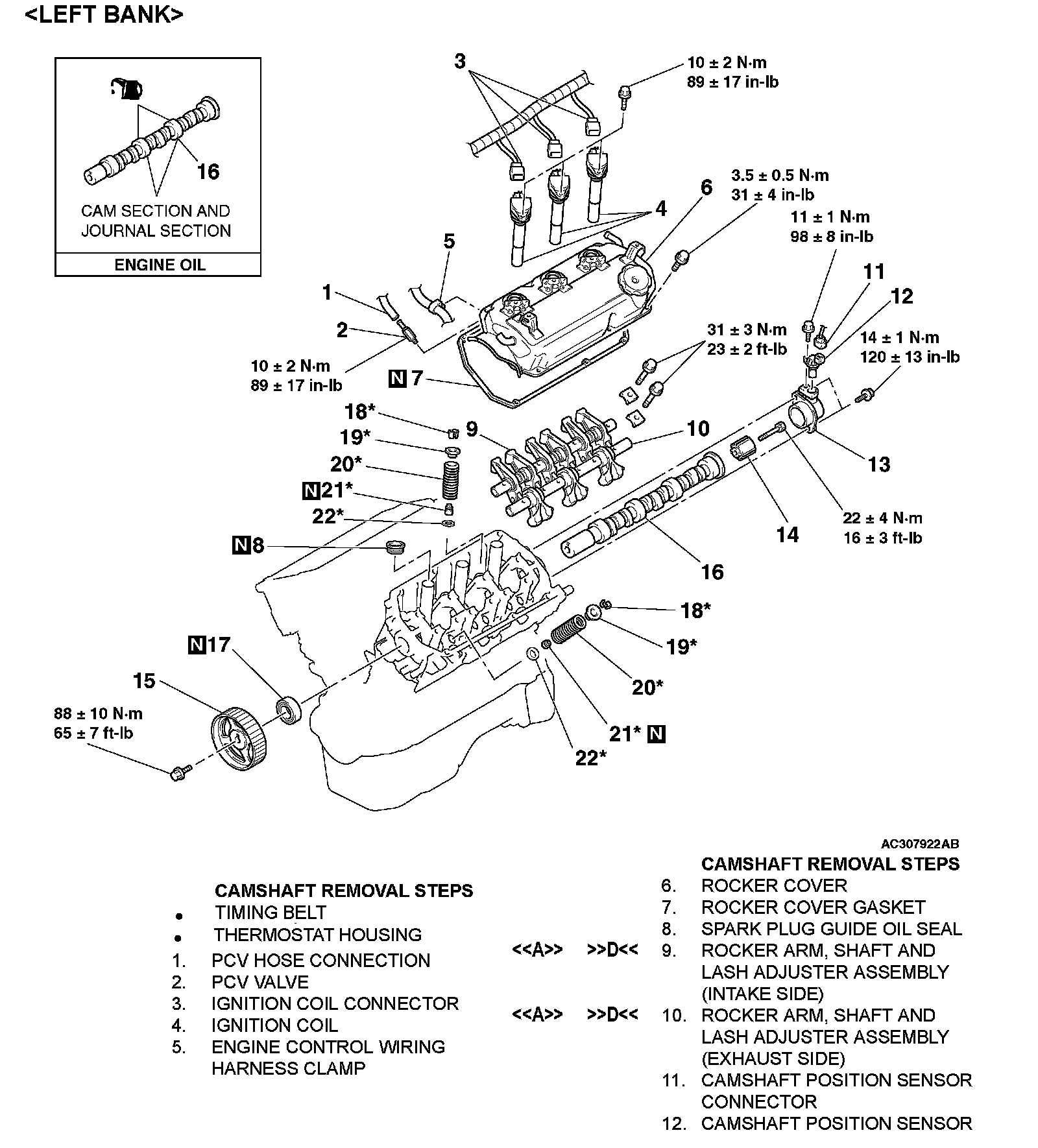

Part 1 Of 2:

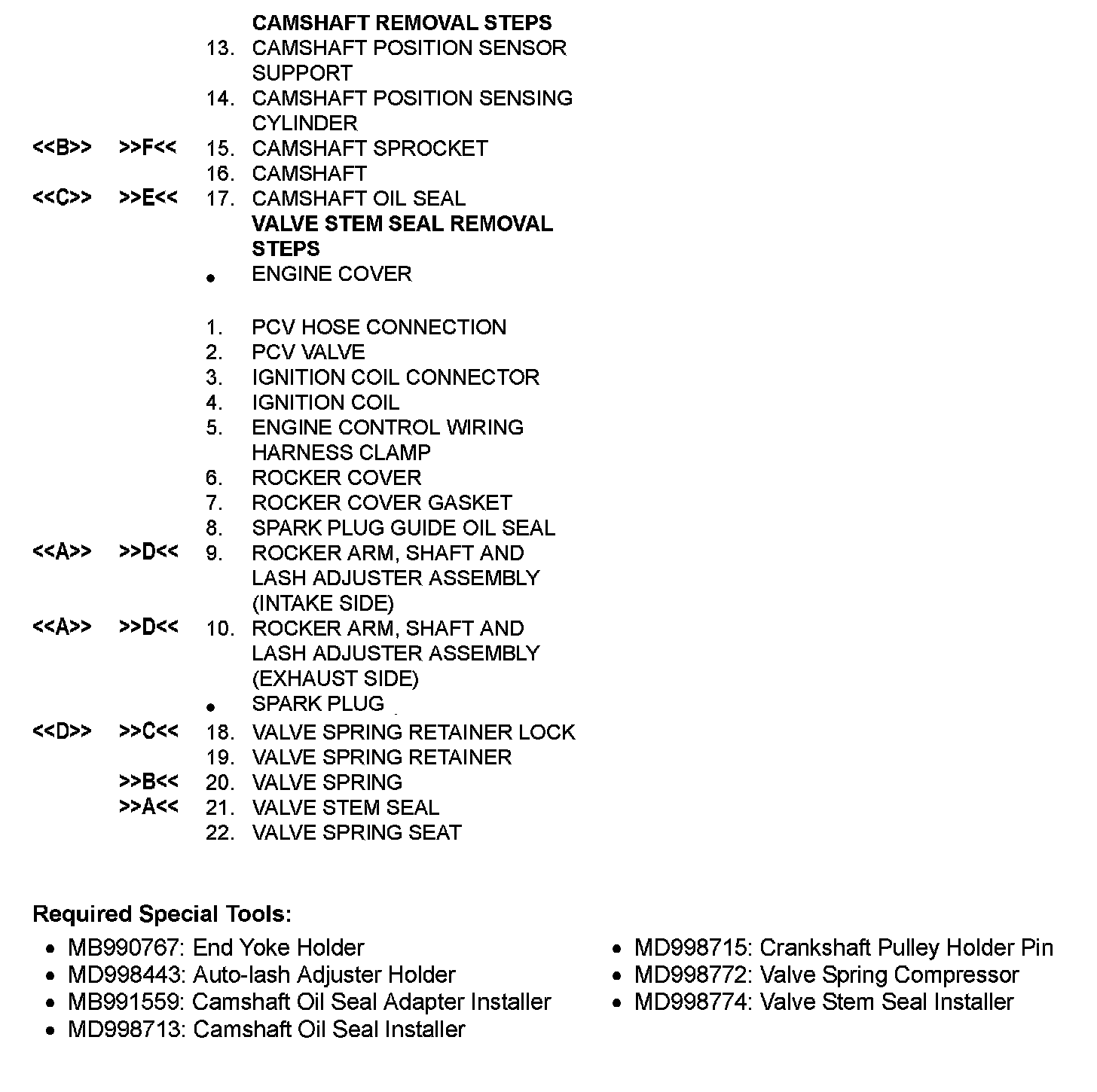

Part 2 Of 2:
