Evaporative Emissions System: Service and Repair

Part 1:

Part 2:

Part 3:

1. Remove the rear seat cushion assembly. (Refer to Rear Seat Assembly.)

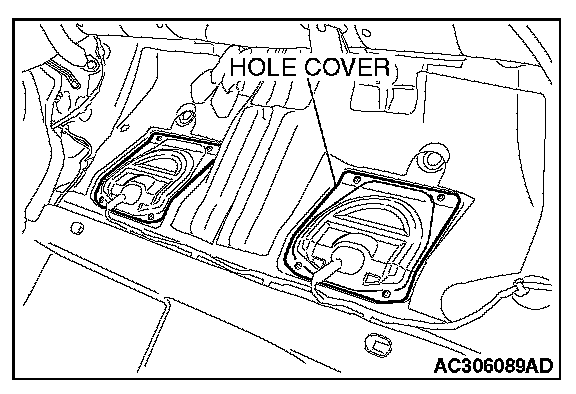

2. Remove the hole cover (LH).

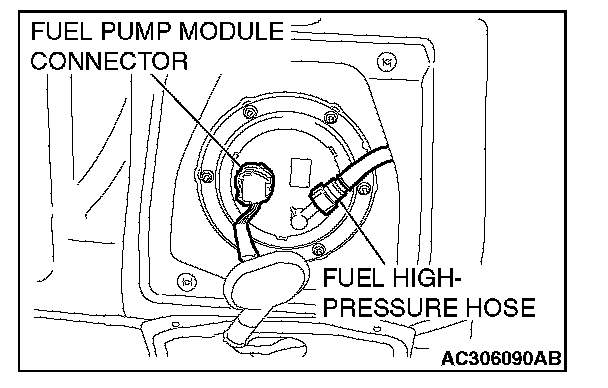

3. Disconnect the fuel pump module connector.

<> FUEL TANK DIFFERENTIAL PRESSURE SENSOR CONNECTOR/

FUEL LEVEL SENSOR (SUB) CONNECTOR CONNECTION REMOVAL

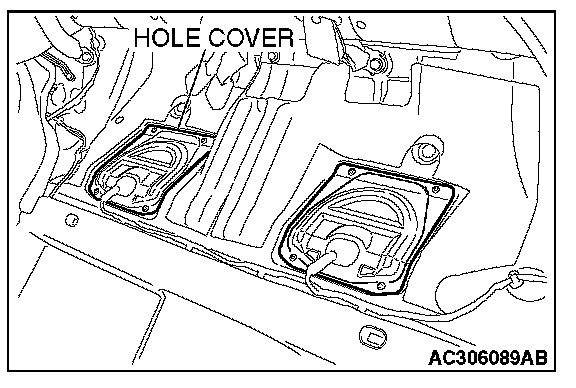

1. Remove the hole cover (RH).

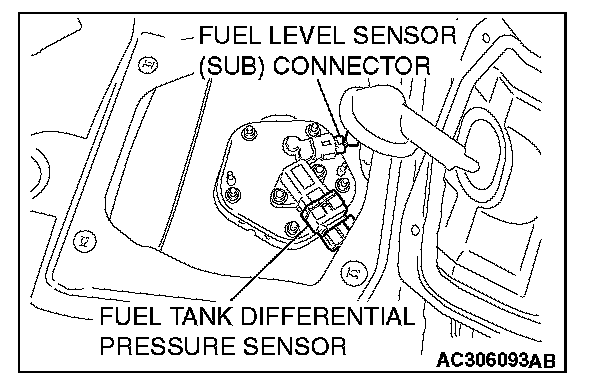

2. Disconnect the fuel level sensor (sub) connector and fuel tank differential pressure sensor connector.

<> FUEL HIGH-PRESSURE HOSE CONNECTION REMOVAL

CAUTION: As there will be some pressure remaining in the fuel pipe line, cover it with a shop towel to prevent fuel from spraying out.

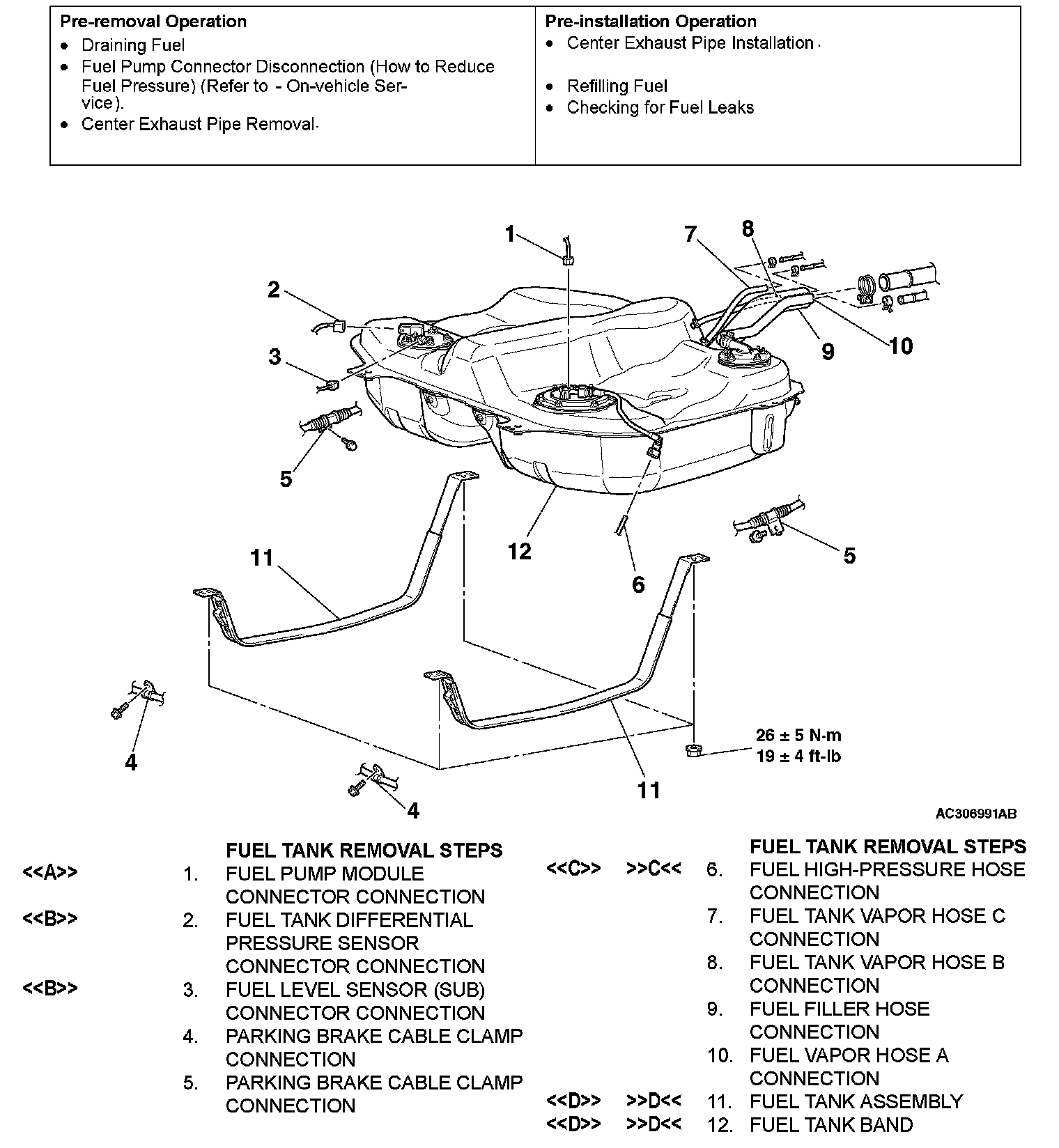

<> FUEL TANK ASSEMBLY/FUEL TANK BAND REMOVAL
1. Support the fuel tank with a transaxle jack.
2. Remove the fuel tank band and fuel tank assembly as follows.
1. Remove the front securing nut of the fuel tank band.
2. Tilt the fuel tank assembly forward and lower it gradually to remove it.
3. Remove the fuel tank band.

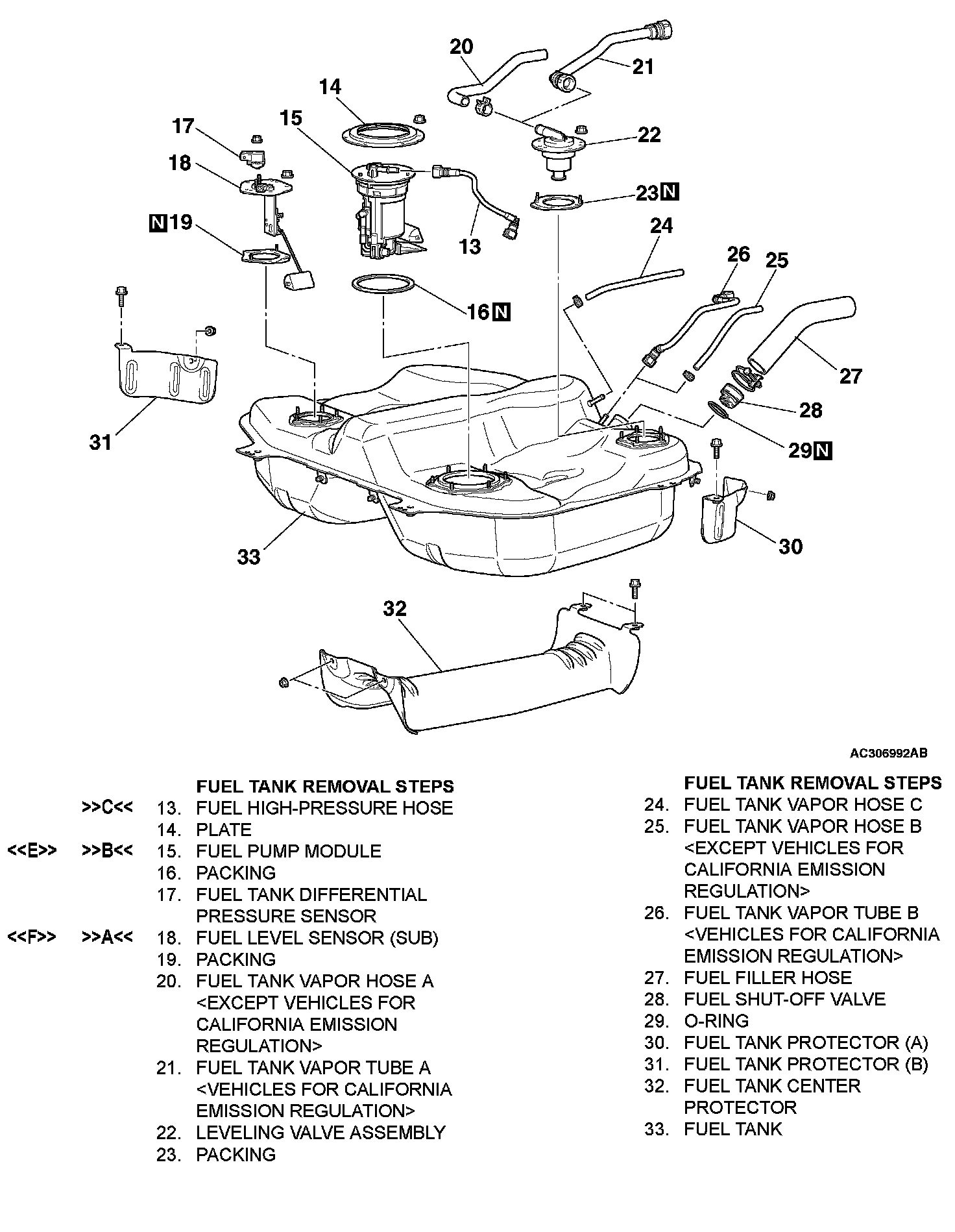

<> FUEL PUMP MODULE REMOVAL

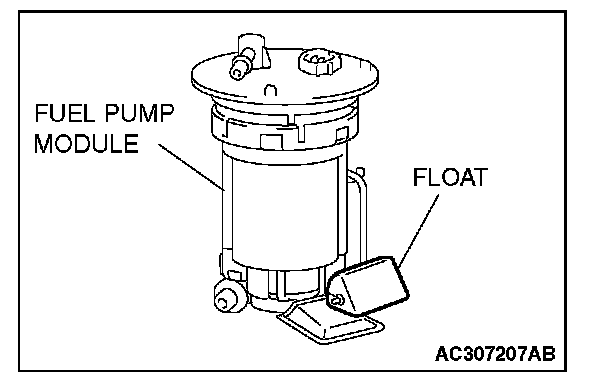

CAUTION: When withdrawing the fuel pump module from the fuel tank, be careful not to damage the module unit and the float.

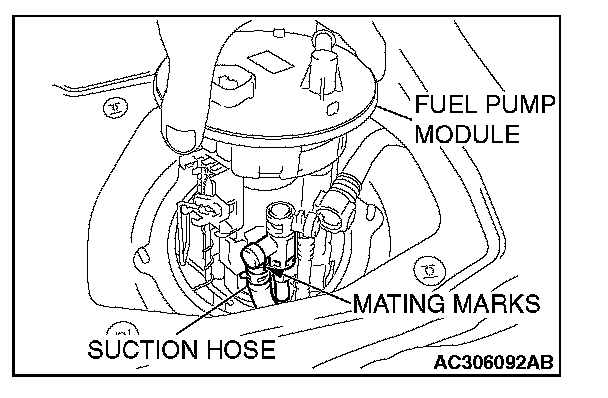

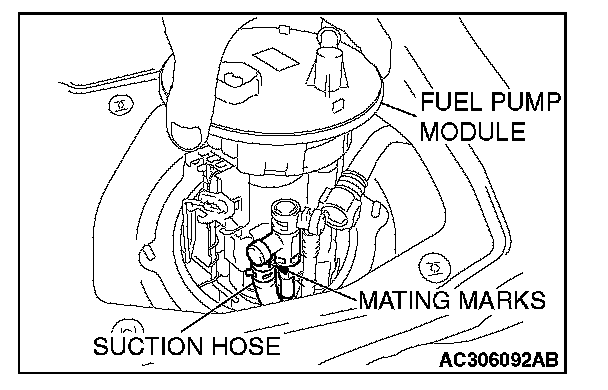

Make alignment marks between the suction hose and the fuel pump module and then disconnect the suction hose to remove the fuel pump module.

<> FUEL LEVEL SENSOR (SUB) REMOVAL

CAUTION: When withdrawing the fuel level sensor (sub) from the fuel tank, be careful not to damage the sensor unit and the float.

INSTALLATION SERVICE POINTS

>>A<< FUEL LEVEL SENSOR (SUB) INSTALLATION

CAUTION: When inserting the fuel level sensor (sub) into the fuel tank, be careful not to damage the sensor unit and the float.

>>B<< FUEL PUMP MODULE INSTALLATION

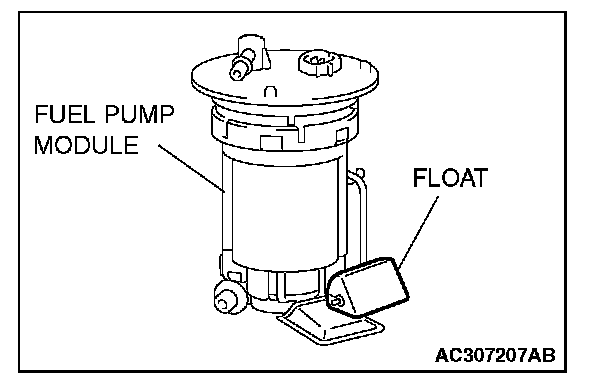

CAUTION: When installing the fuel pump module into the fuel tank, be careful not to damage the module unit and the float.

1. Align the mark of the suction hose with that of the fuel pump module, and then connect the suction hose to the fuel pump module.
2. Install the fuel pump module into the fuel tank while ensuring that the suction hose is not kinked.

>>C<< FUEL HIGH-PRESSURE HOSE/FUEL

HIGH-PRESSURE HOSE CONNECTION INSTALLATION

CAUTION: Connect the fuel high-pressure hose, and then pull it gently in the direction of removal to check that the hose is firmly connected.

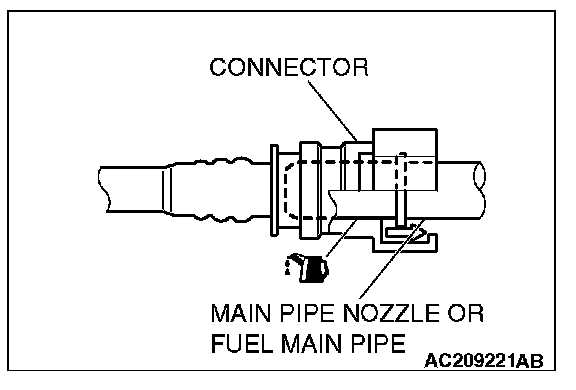

Apply clean engine oil to the tips of the main pipe nozzle and the fuel main pipe, and connect connector of the fuel high-pressure hose to them.

>>D<< FUEL TANK ASSEMBLY/FUEL TANK BAND INSTALLATION
1. Raise the fuel tank assembly carefully with a transaxle jack.
2. Ensure that the fuel tank assembly does not interfere with surrounding parts. Then install the fuel tank band and tighten the mounting nuts to the specified torque.

Tightening torque: 26 ± 4 N.m (19 ± 3 ft-lb)

3. Again, ensure that the fuel tank assembly does not interfere with surrounding components. If the fuel tank assembly interferes surrounding components, remove the fuel tank assembly and the tank band and reinstall them.
