How to Read Circuit Diagrams
How to Read Circuit Diagrams

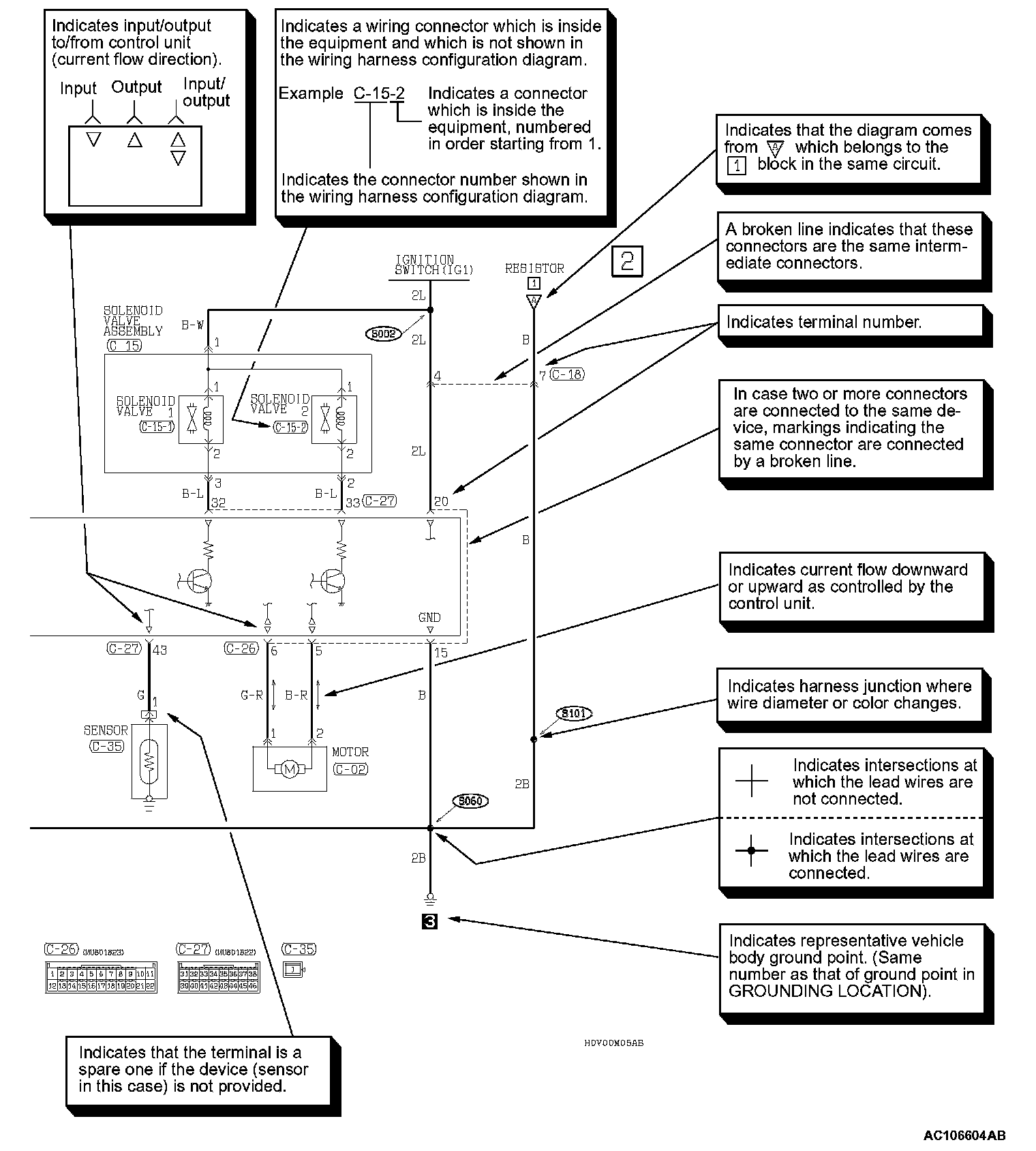

How To Read Circuit Diagrams Part 1:

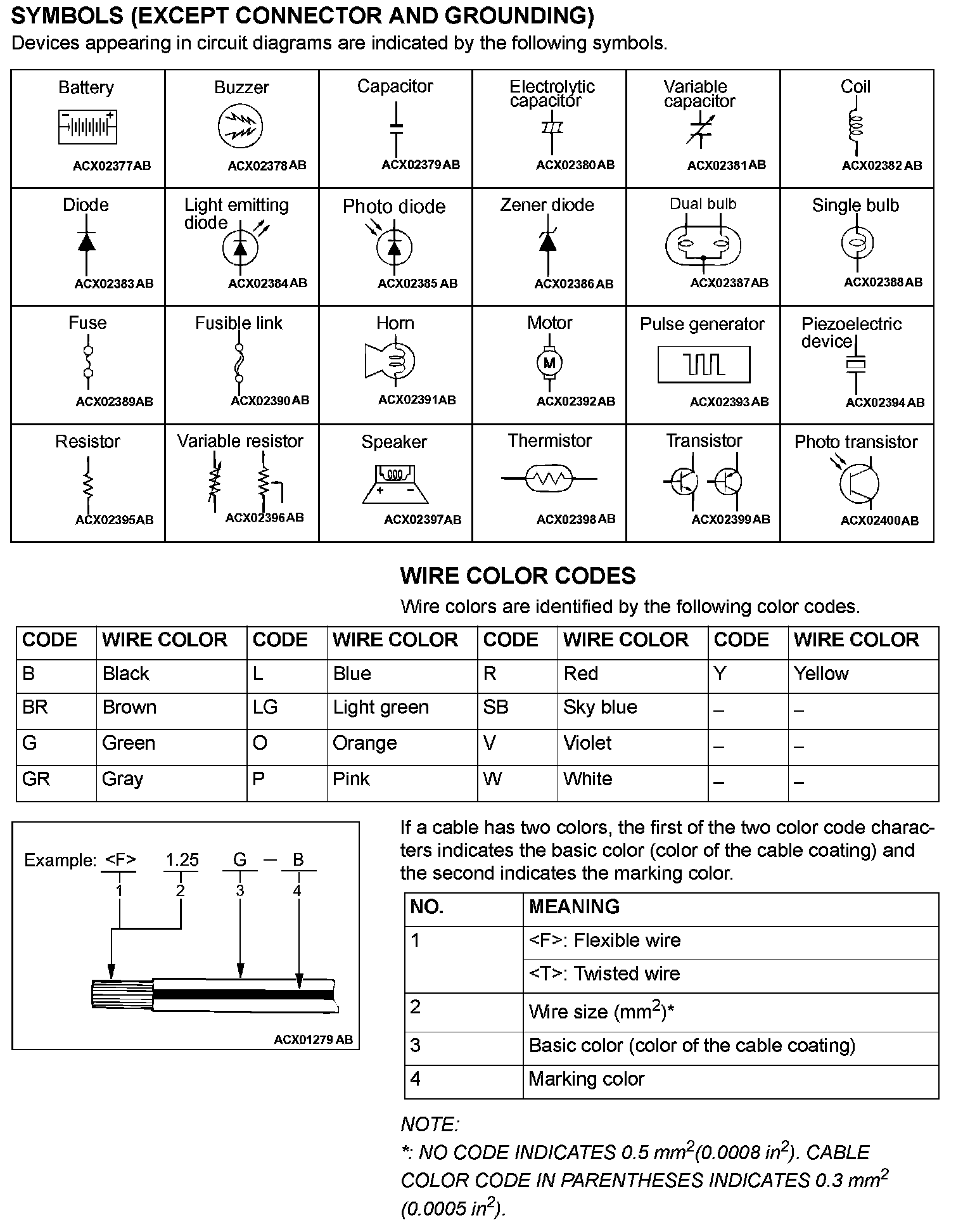

How To Read Circuit Diagrams Part 2:

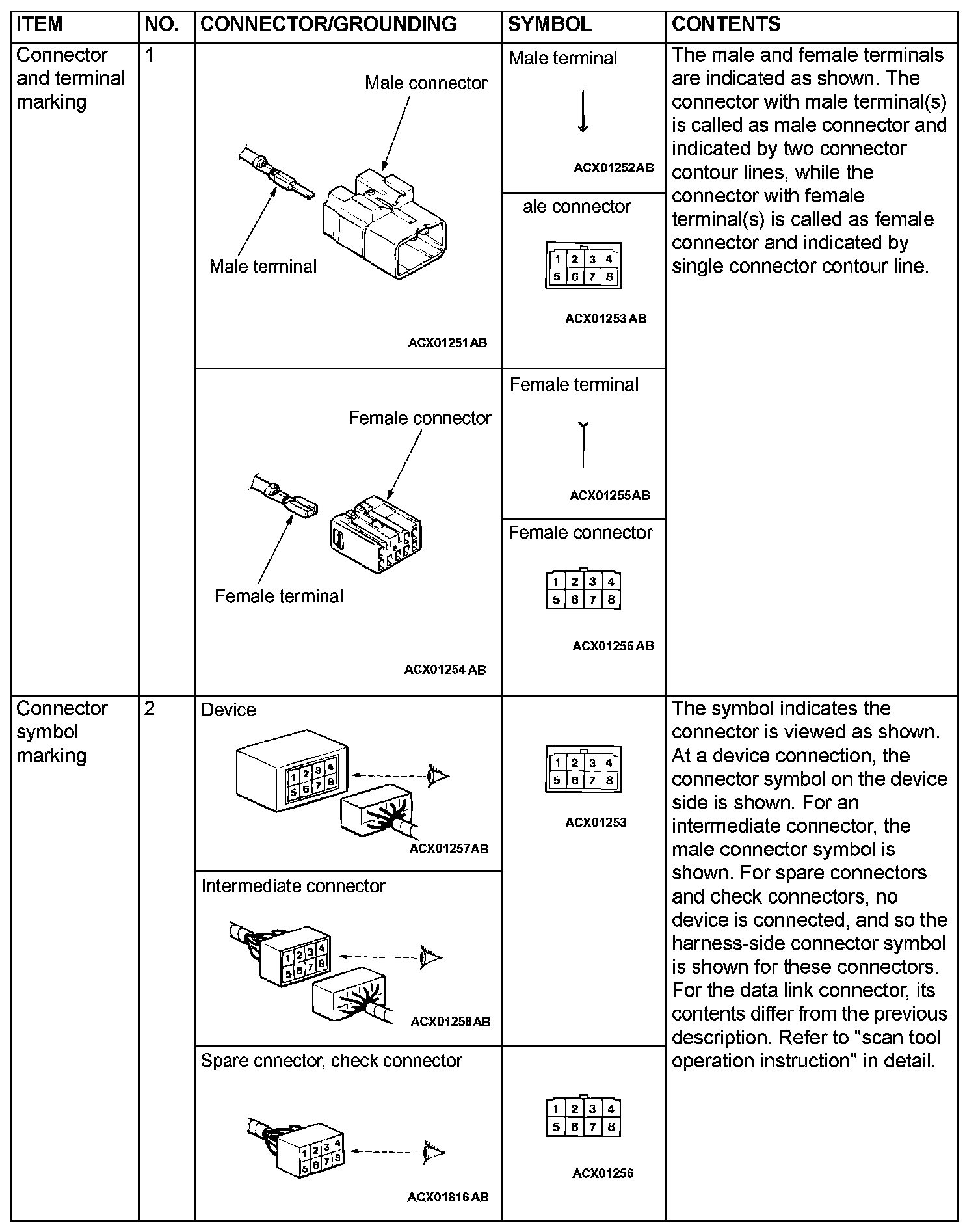

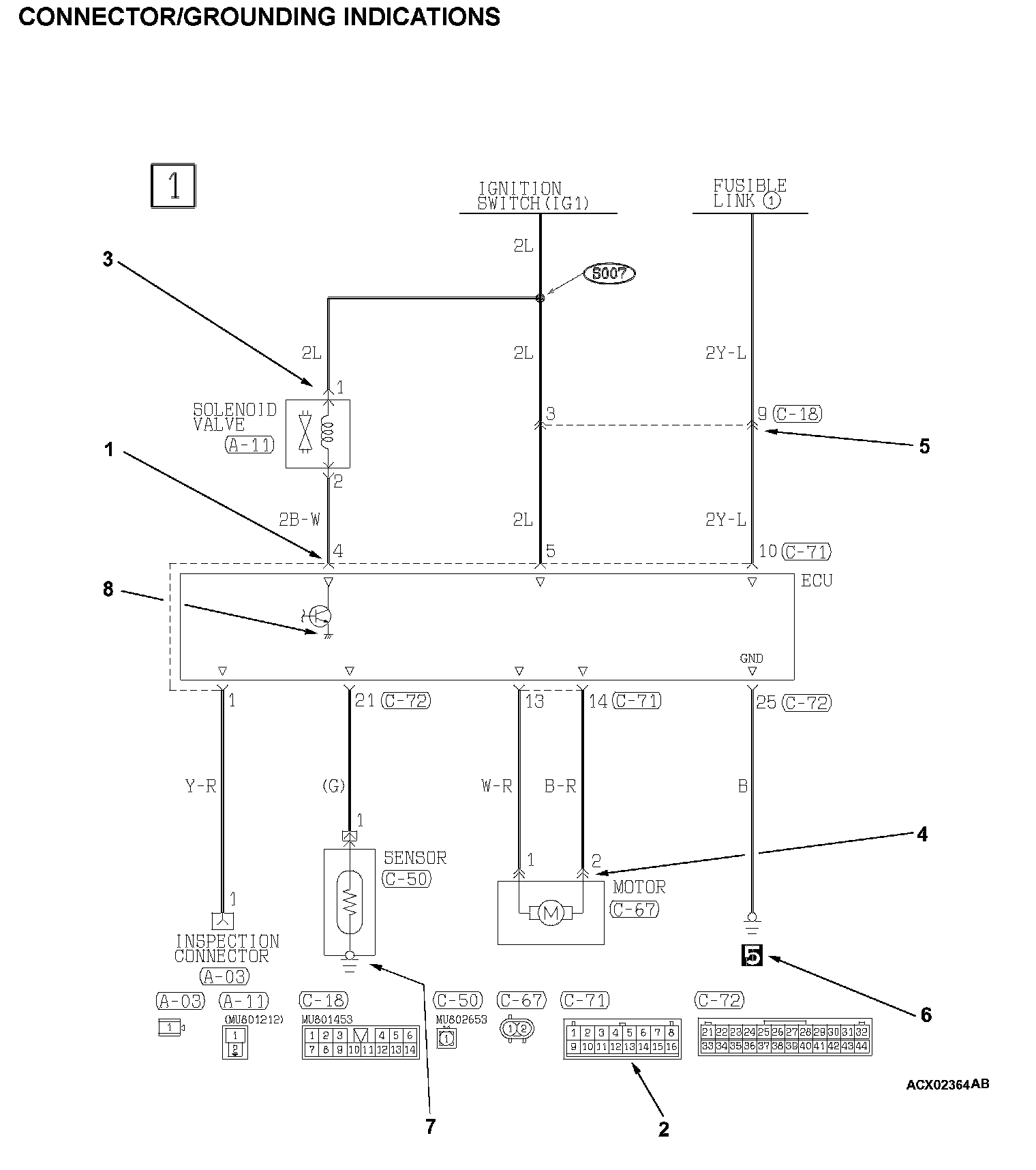

Connector/Grounding Indications:
