Power Steering Line/Hose: Service and Repair

Part 1 Of 2:

Part 2 Of 2:

POWER STEERING HOSES
REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINTS

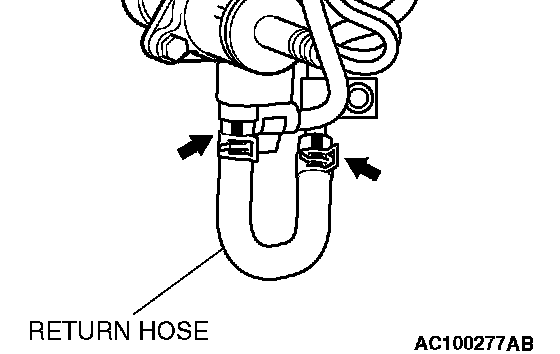

]]A[[ RETURN HOSE INSTALLATION








Install the return hose so that the markings are positioned as shown in the illustration.

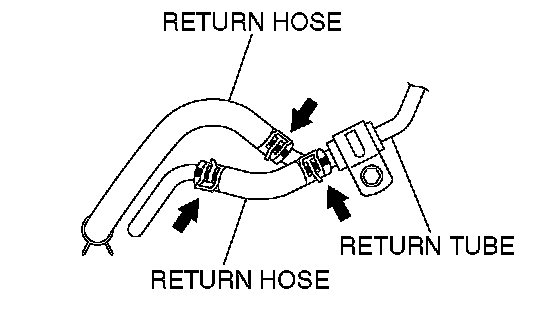

]]B[[ RETURN HOSE INSTALLATION





Install the return hose so that the markings are positioned as shown in the illustration.

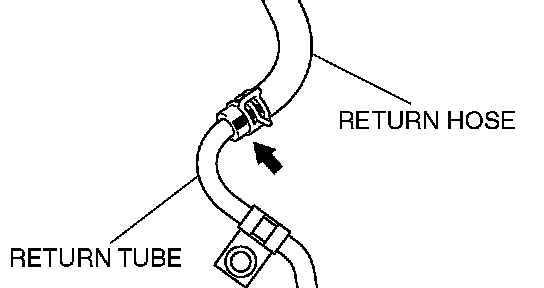

]]C[[ RETURN HOSE INSTALLATION





Install the return hose so that the marking is positioned as shown in the illustration.

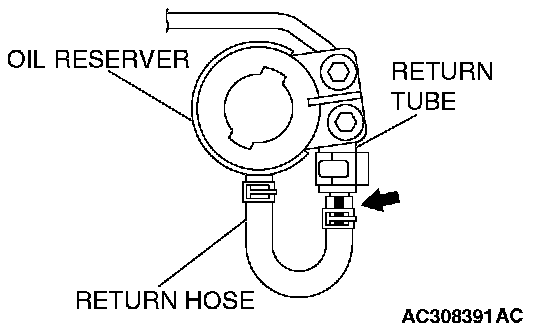

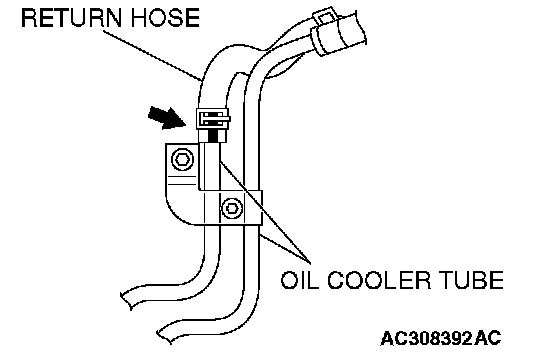

]]D[[ RETURN HOSE INSTALLATION





Install the return hose so that the markings are positioned as shown in the illustration.

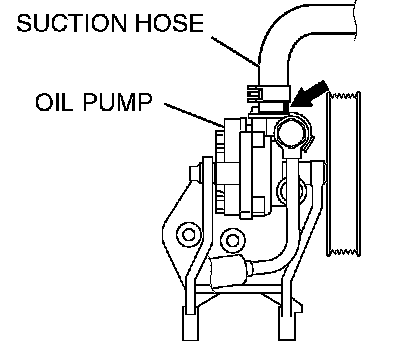

]]E[[ SUCTION HOSE INSTALLATION





Install the suction hose so that the marking is positioned as shown in the illustration.
