Pinout Values and Diagnostic Parameters

CHECK AT ECU TERMINAL

Check At ECU Terminal - Part 1:

Check At ECU Terminal - Part 2:

Check At ECU Terminal - Part 3:

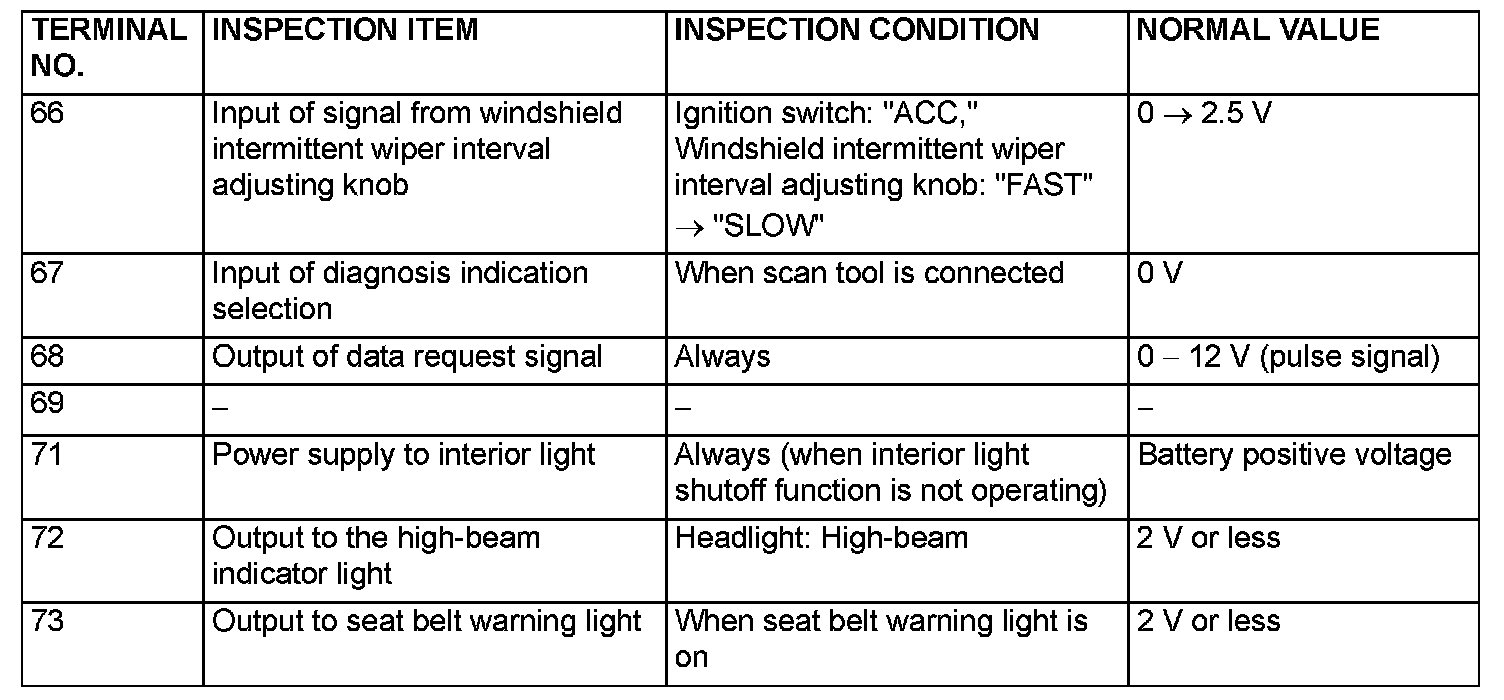

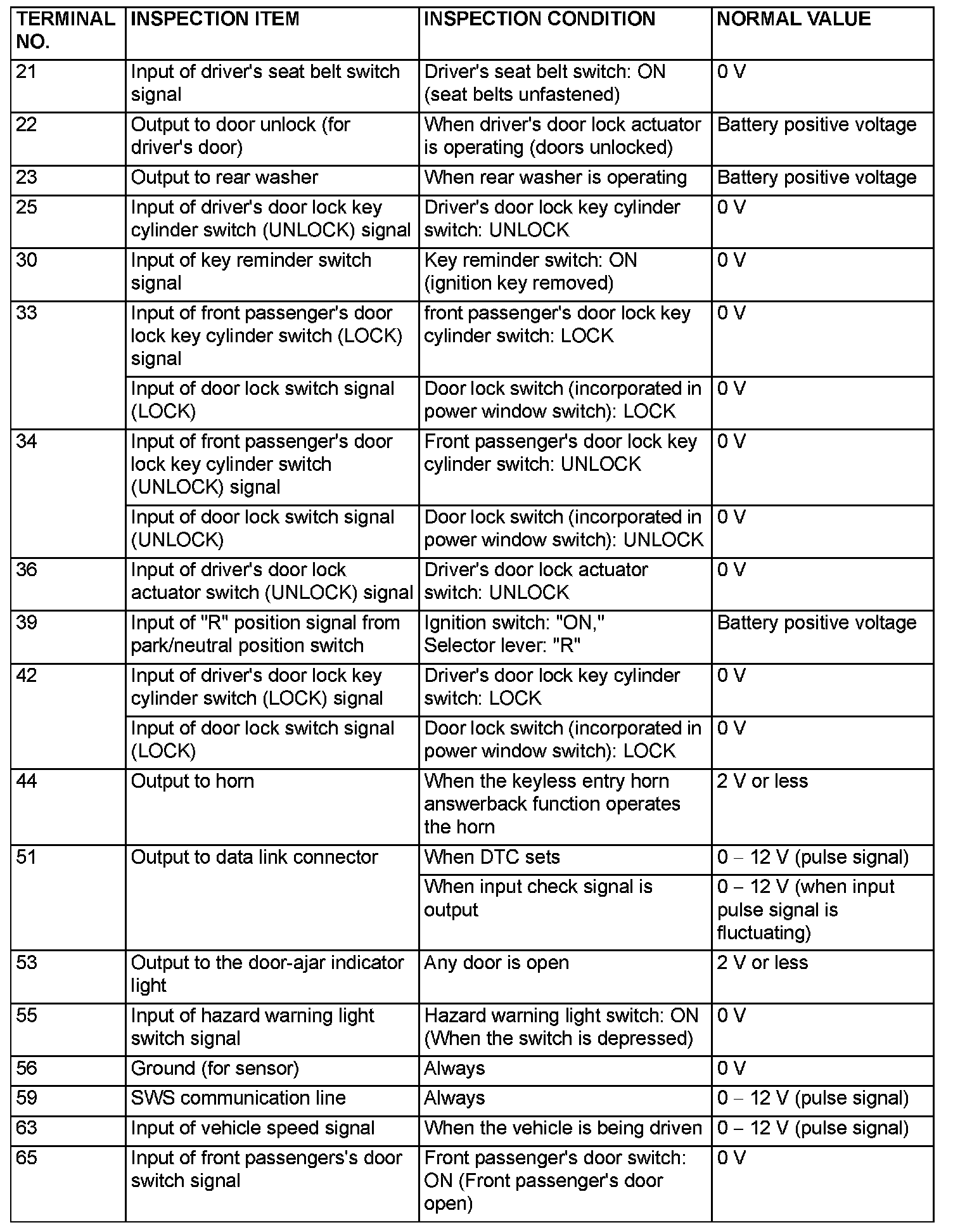

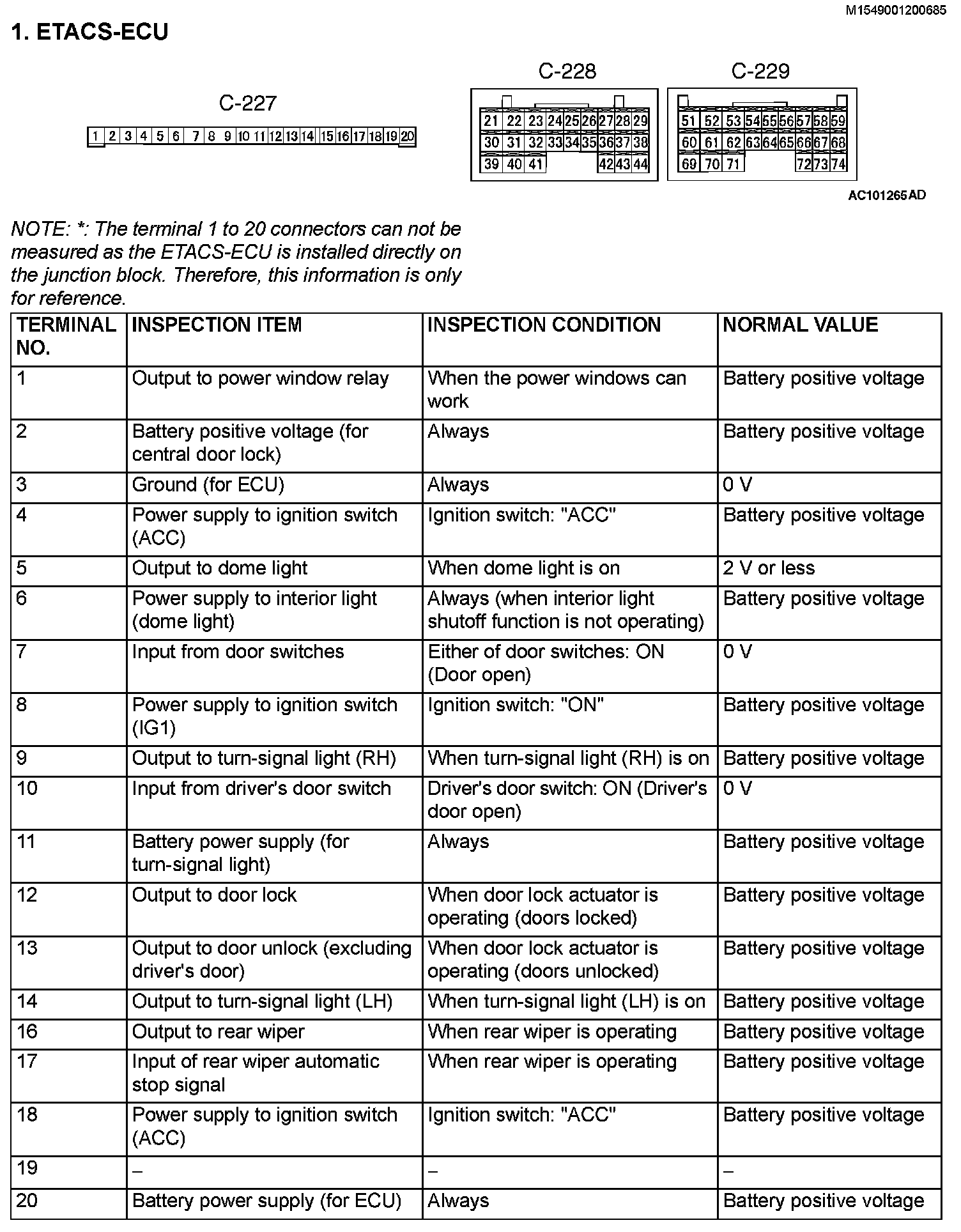

ETACS-ECU

Check At ECU Terminal:

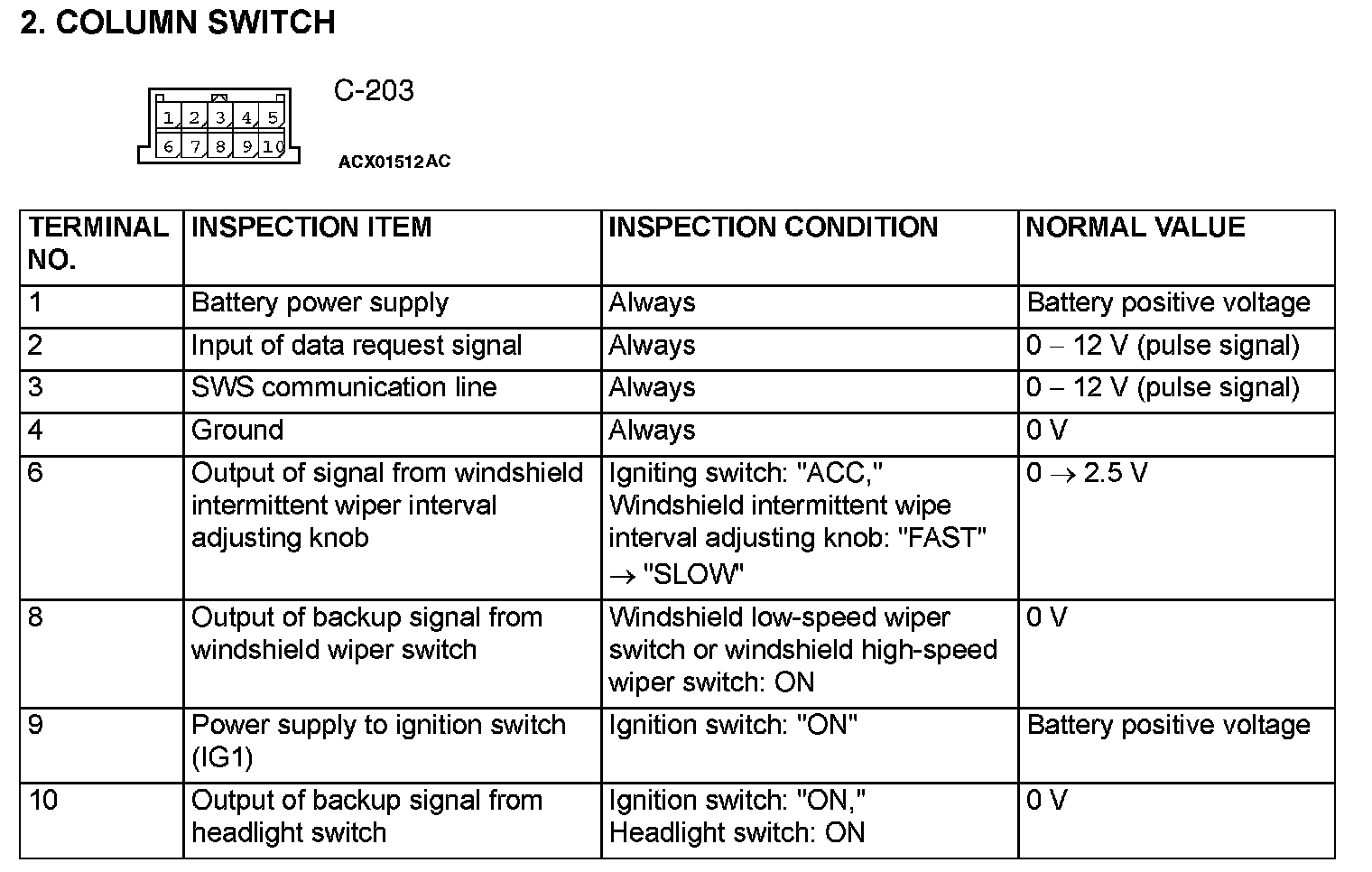

COLUMN SWITCH

Check At ECU Terminal:

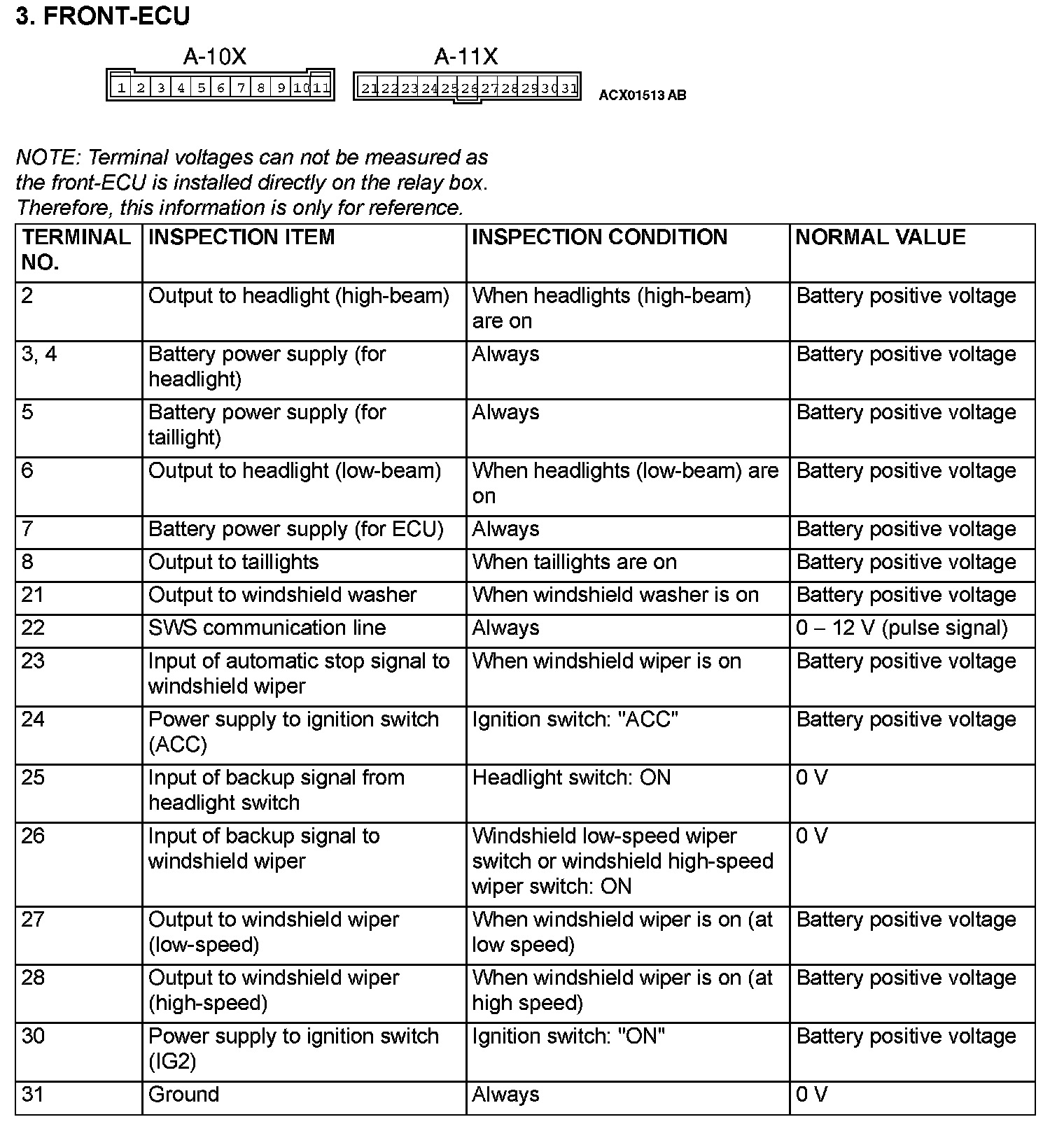

FRONT-ECU
