Information Bus: Adjustments
ON-VEHICLE SERVICE
Part 1:
Part 2:

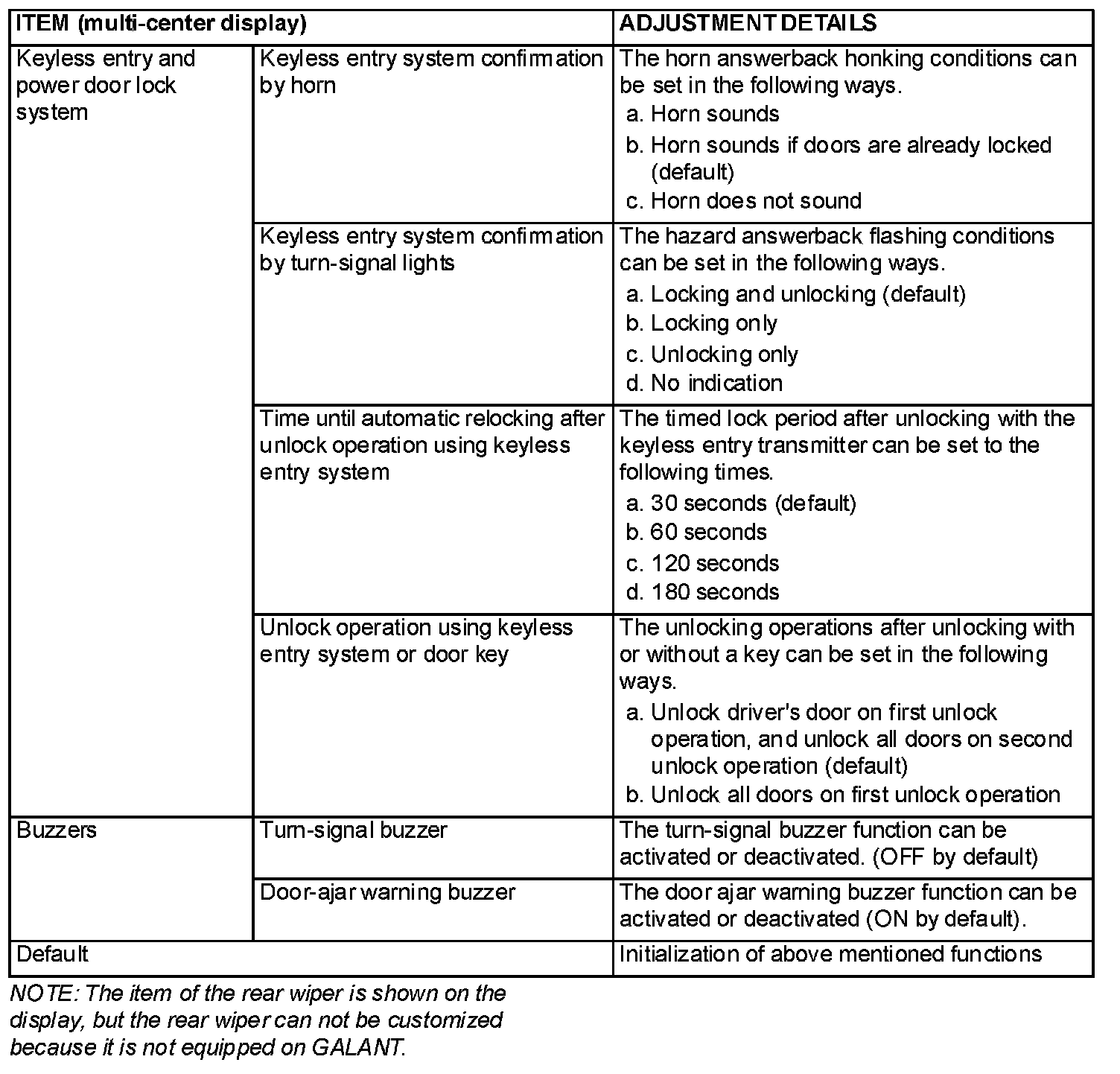

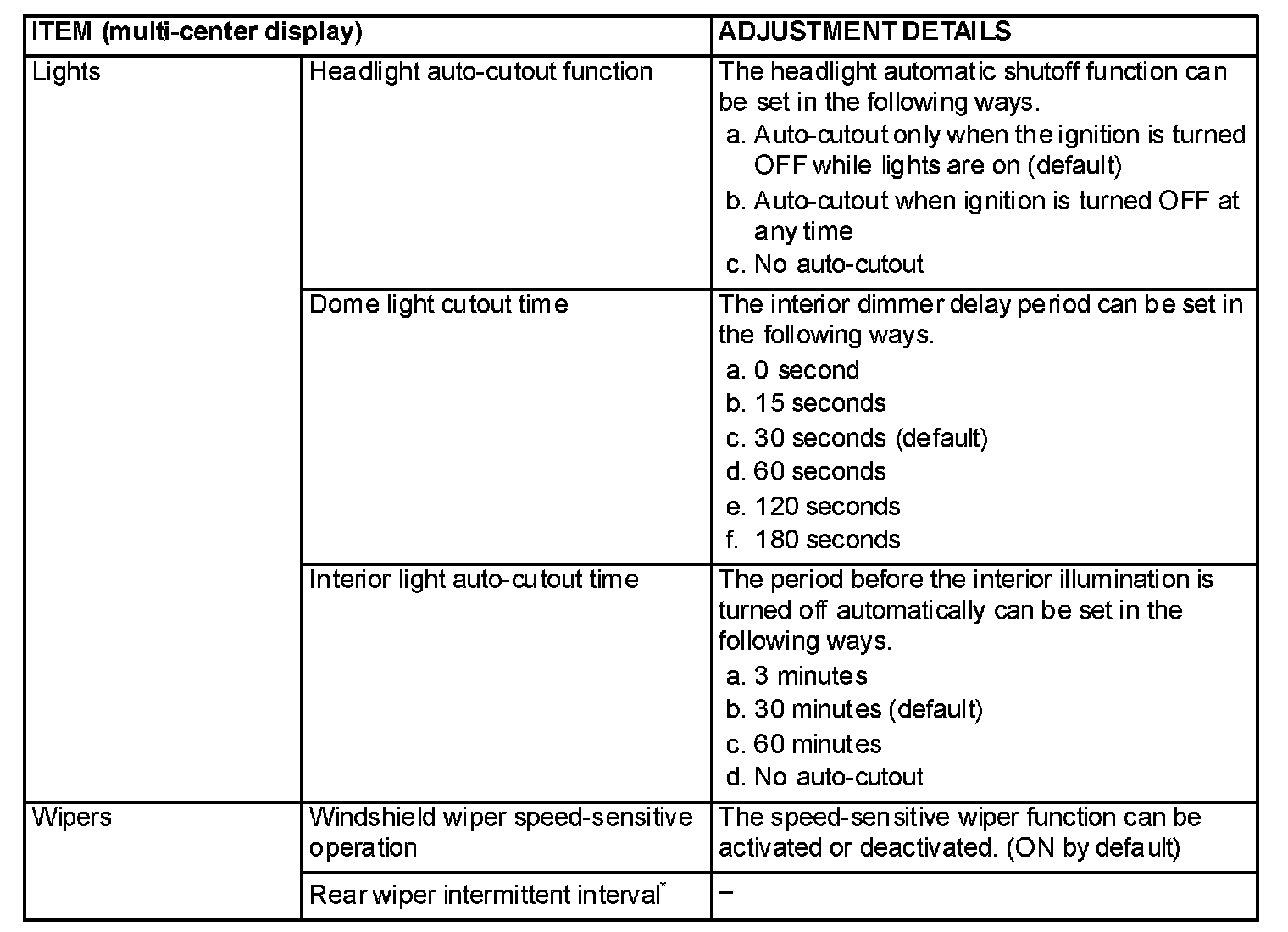

CONFIGURATION FUNCTION

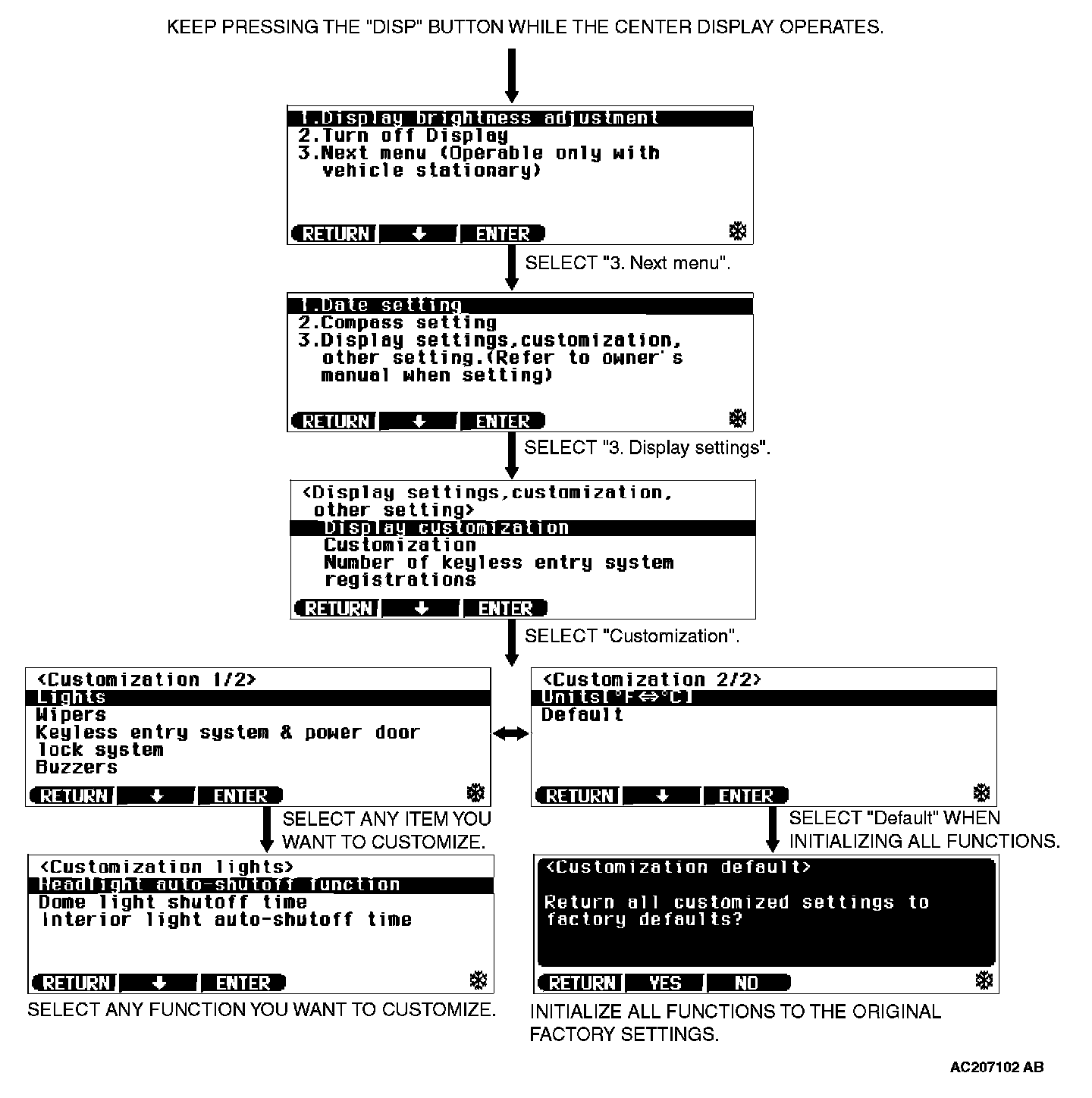

ADJUSTMENT BY OPERATING THE MULTI CENTER DISPLAY
The given function and system customizations are possible by using the multi center display.
