CAN Communication Signal Table
CAN Communication Signal Table

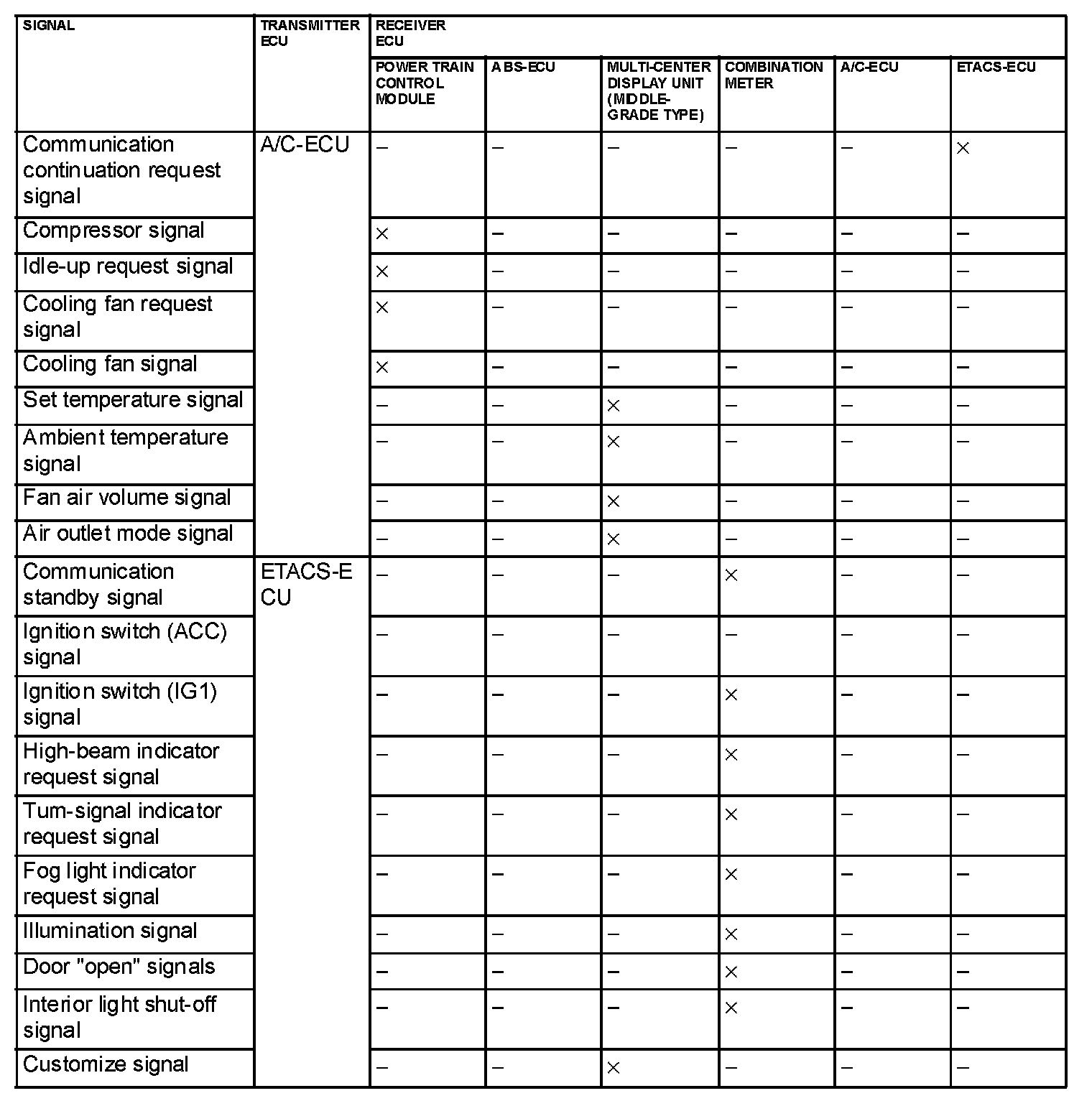

Can Communication Signal Table Part 1:

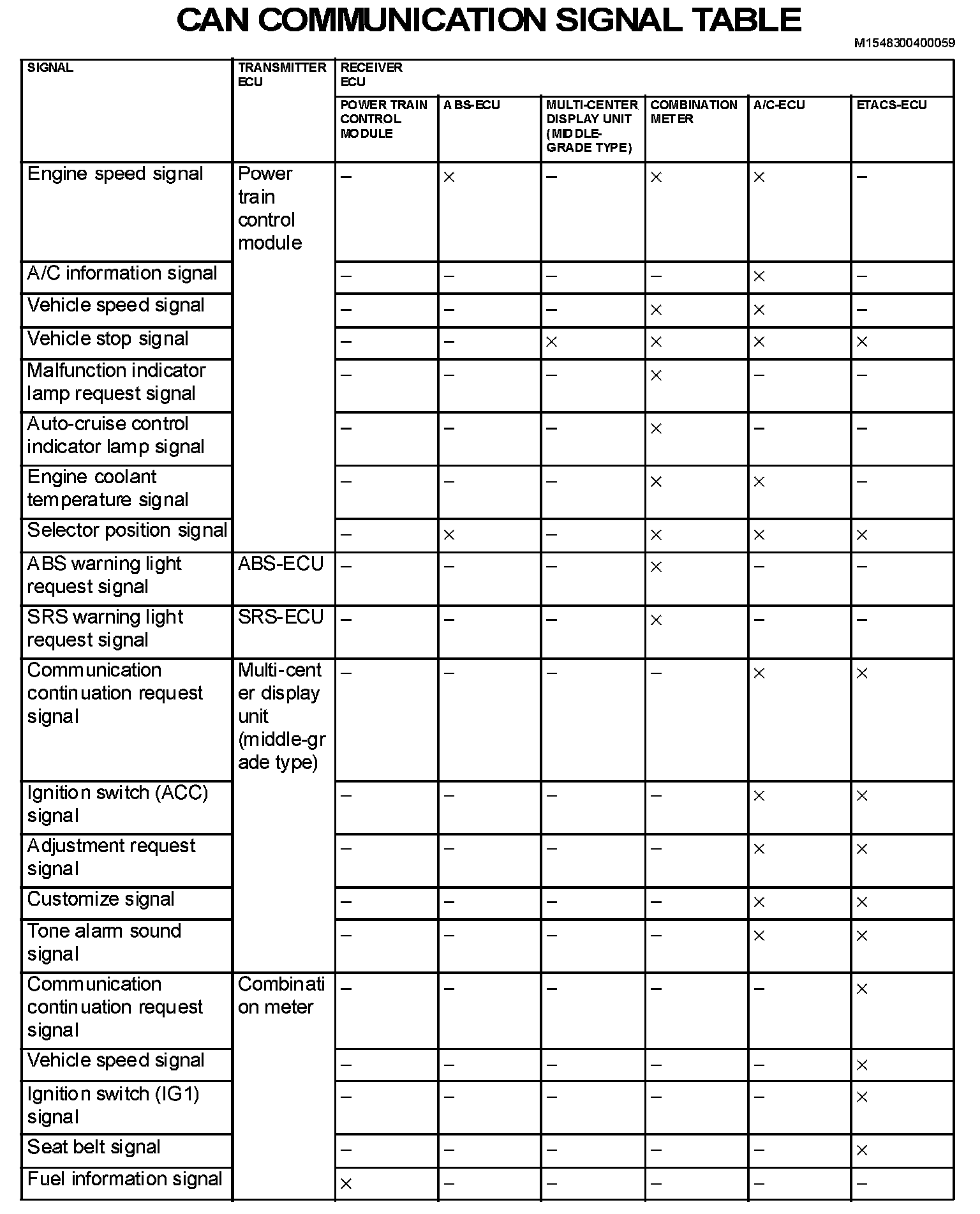

Can Communication Signal Table Part 2:
