Operation CHARM: Car repair manuals for everyone.
Home >> Mitsubishi >> 2005 >> Galant L4-2.4L (4G69) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Main Relay (Computer/Fuel System) >> Locations

Main Relay (Computer/Fuel System): Locations

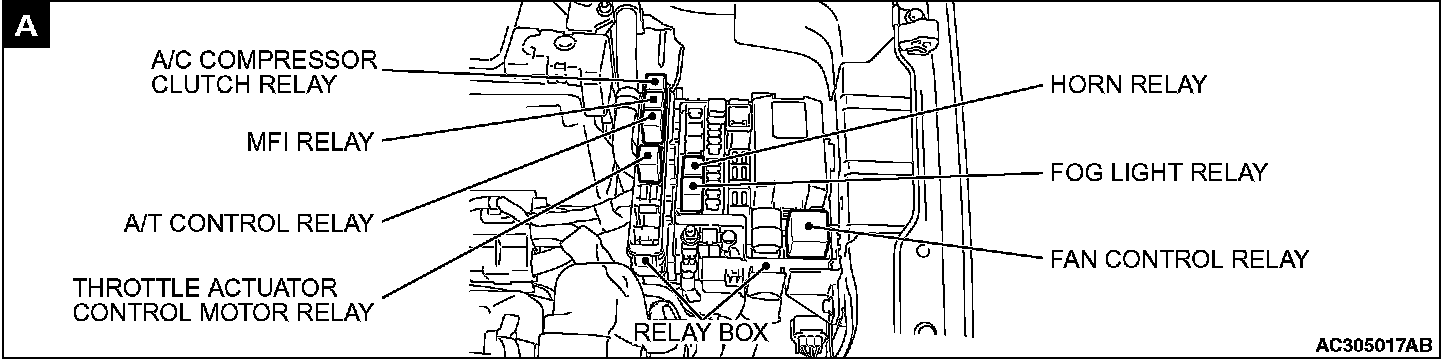

View A:

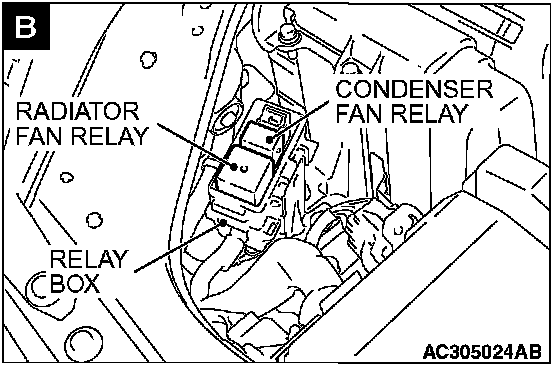

View B:

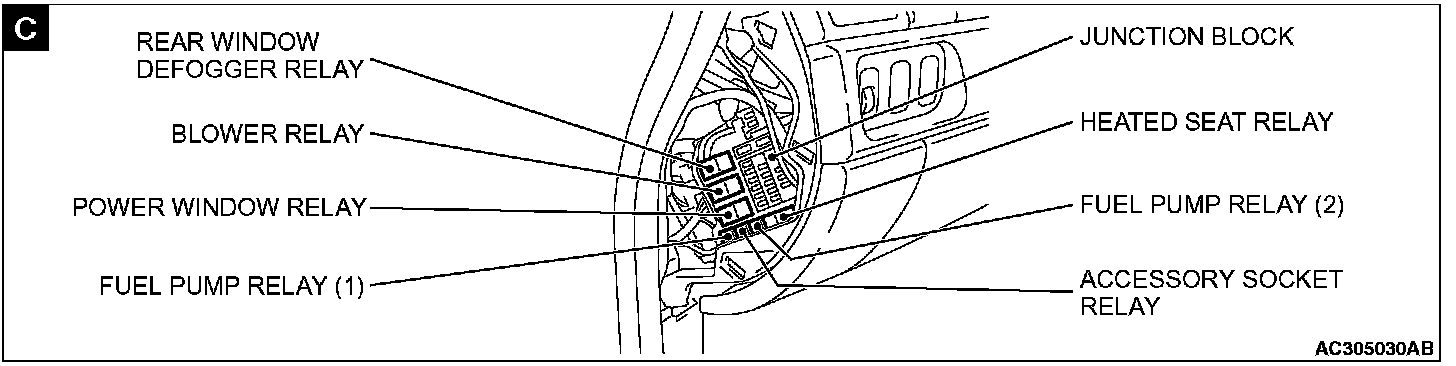

View C:

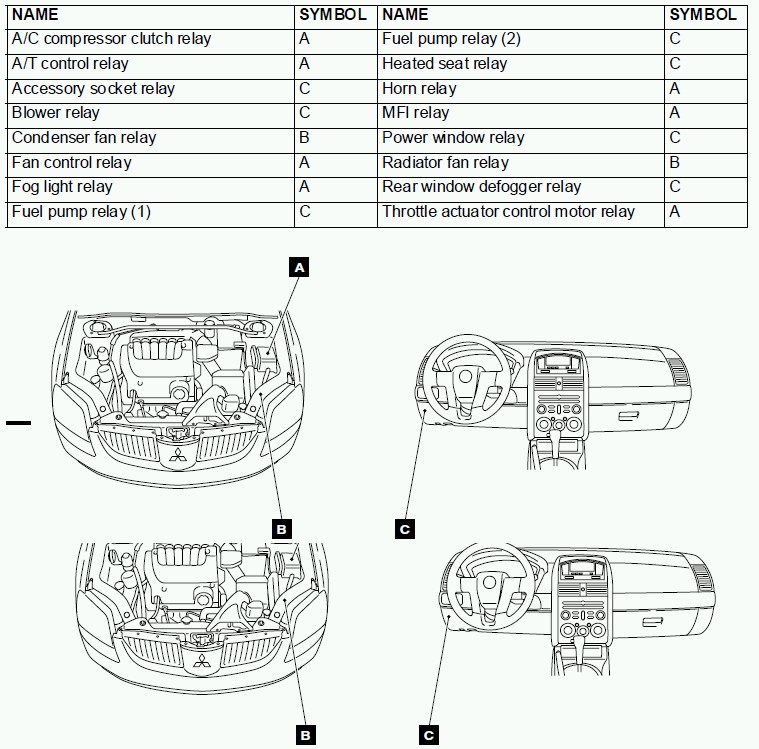

Overall View:
