Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2006
>>
Galant L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Locations
>>
Component Locations
Component Locations

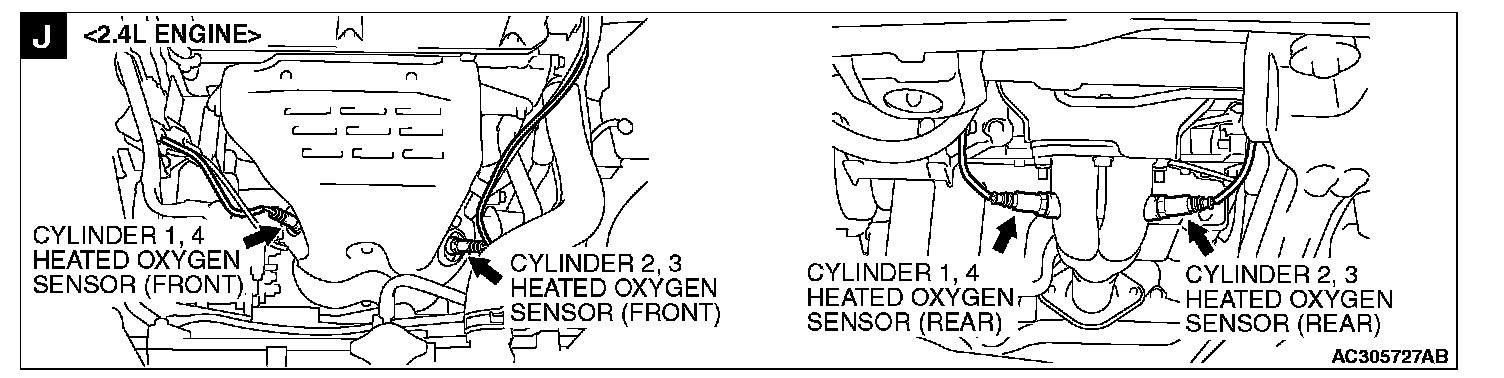

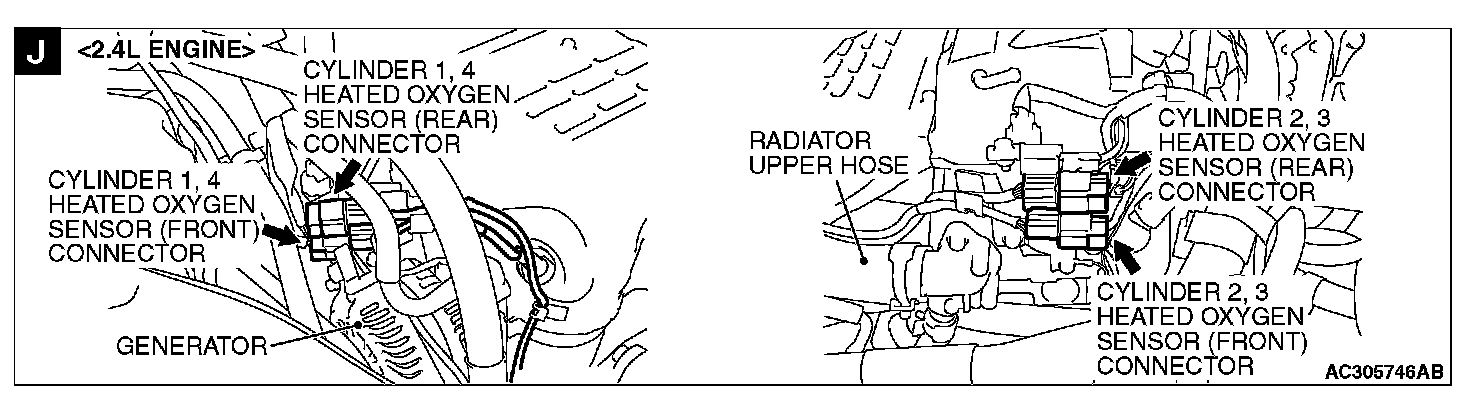

View J:
View J:
Overall View:
