How to Use SWS Monitor

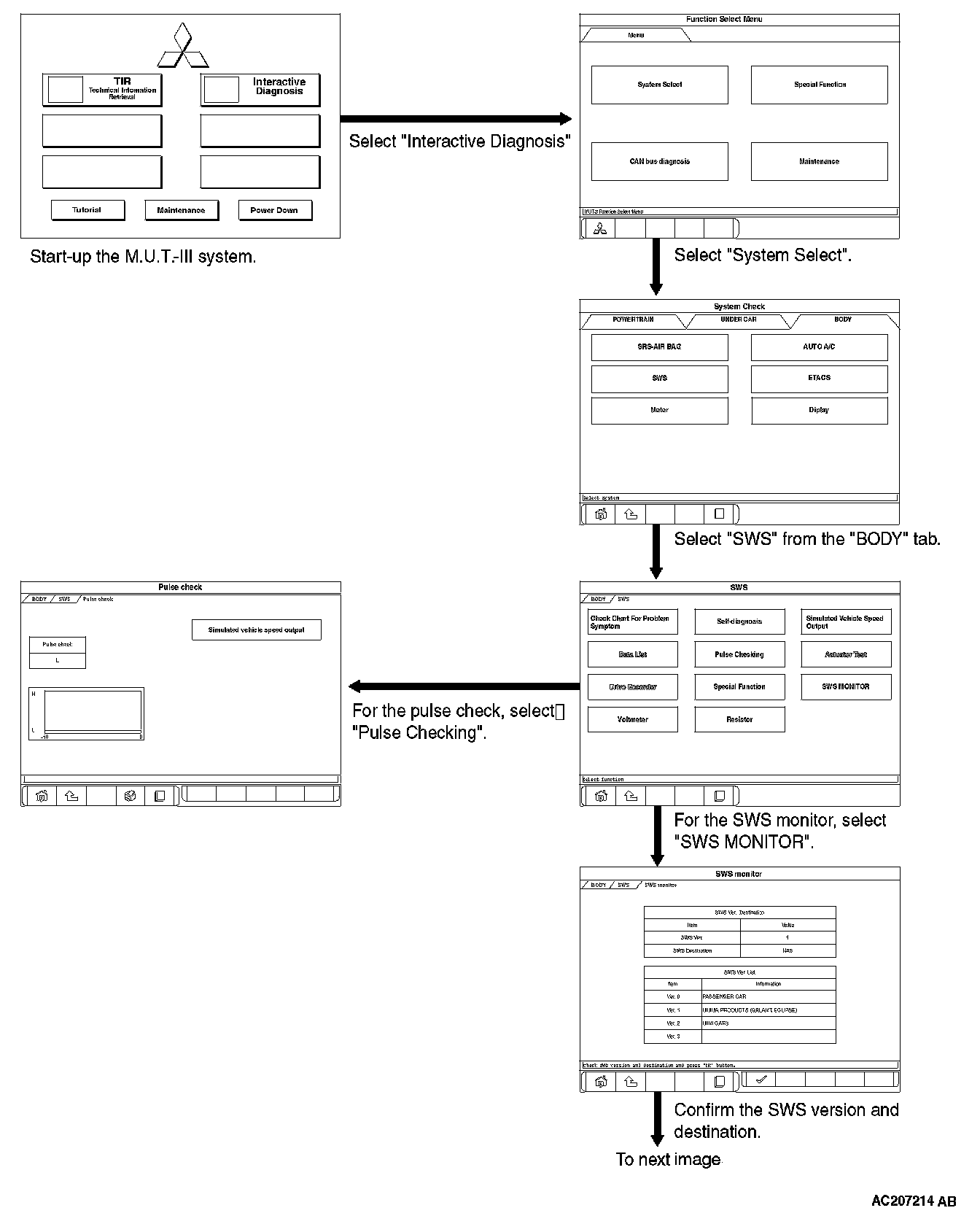

Part 1:

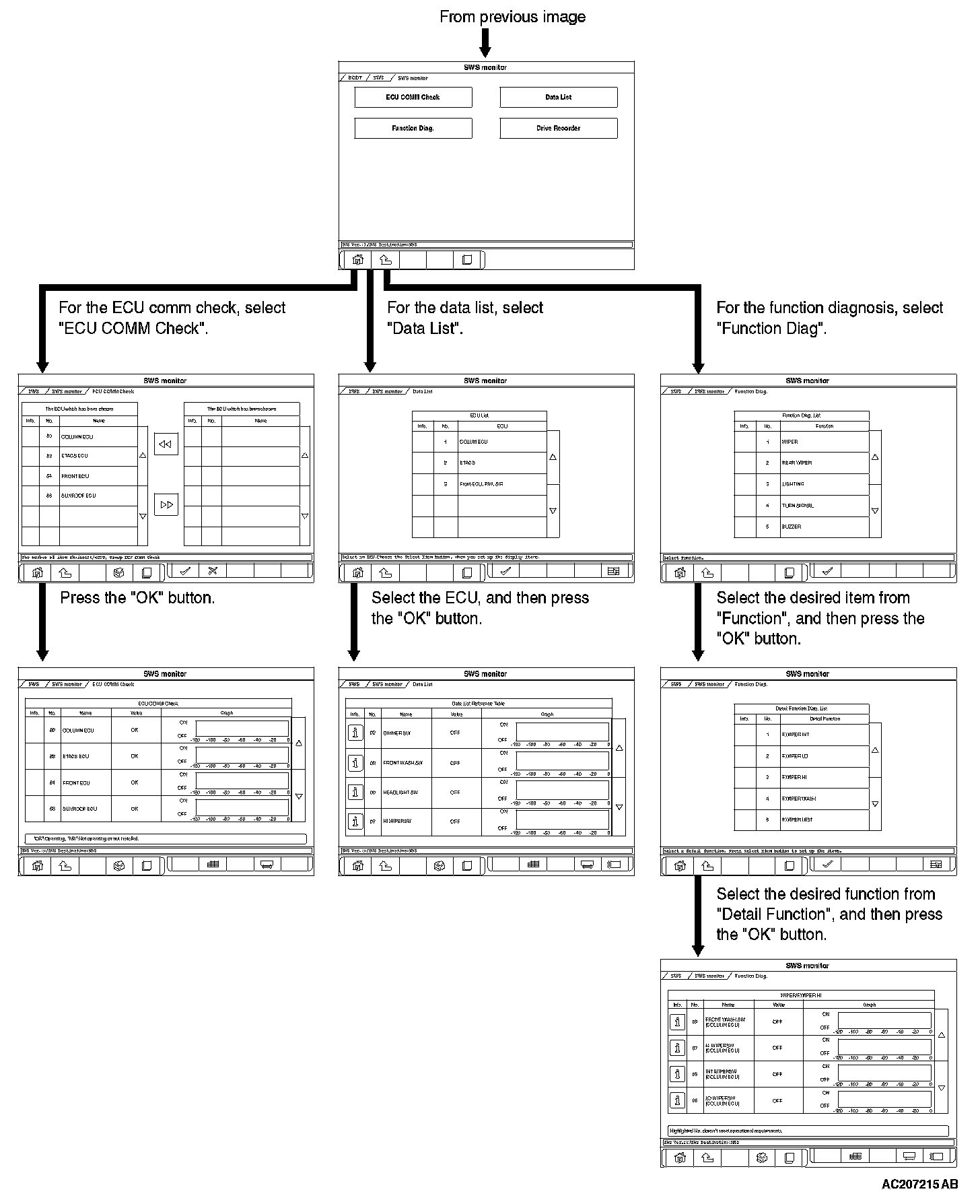

Part 2:




HOW TO USE SWS MONITOR
To carry out troubleshooting, operate scan tool MB991958 (M.U.T.-III Sub Assembly).
