MIVEC

KNOCK SENSOR

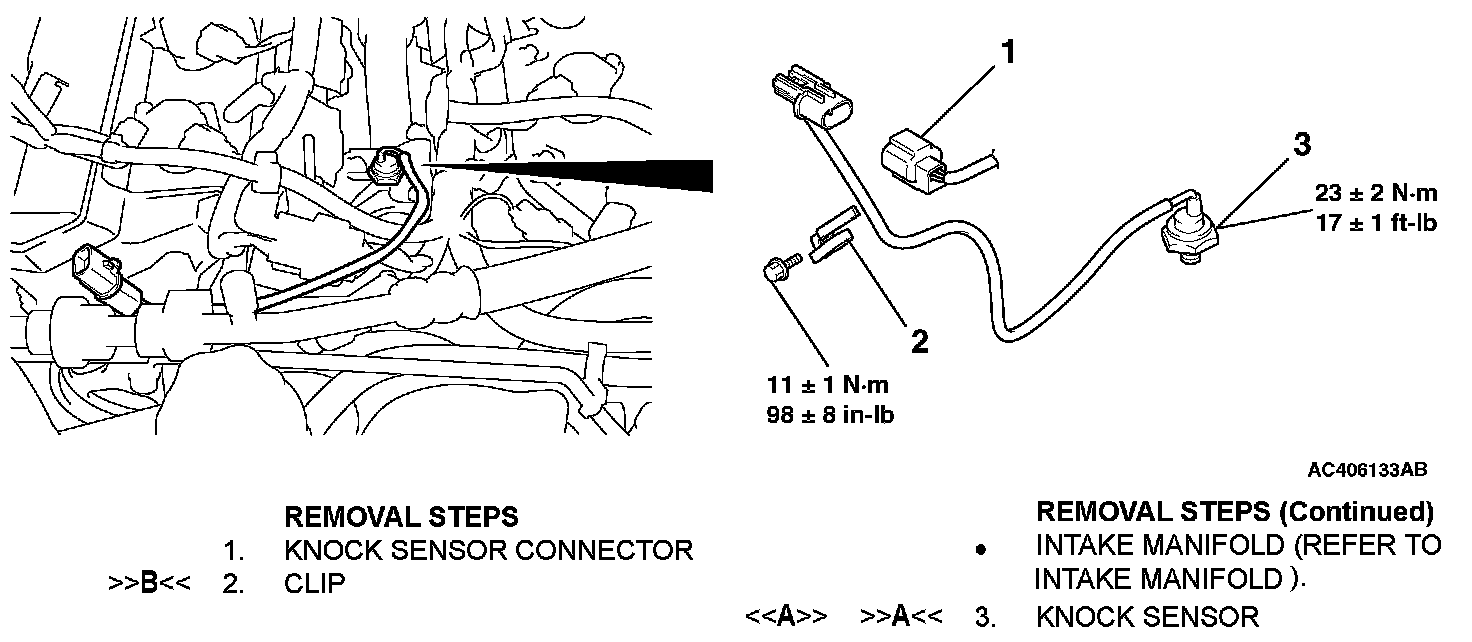

Removal Steps 1-3:

REMOVAL AND INSTALLATION <3.8L ENGINE-MIVEC>

CAUTION: When the knock sensor replacement is performed, use scan tool MB991958 to initialize the learning value (Refer to Initialization Procedure for Learning Value in MFI Engine).

Required Special Tool:
MD998773: Knock Sensor Wrench

REMOVAL SERVICE POINT

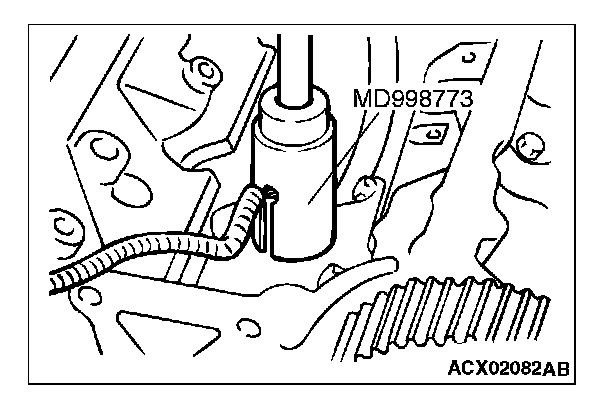

<> KNOCK SENSOR REMOVAL
Use special tool MD998773 to remove the knock sensor.

INSTALLATION SERVICE POINTS




>>A<< KNOCK SENSOR INSTALLATION
Use special tool MD998773 to tighten the knock sensor to the specified torque in the same manner as removal.

Tightening torque: 23 ± 2 N.m (17 ± 1 ft-lb)

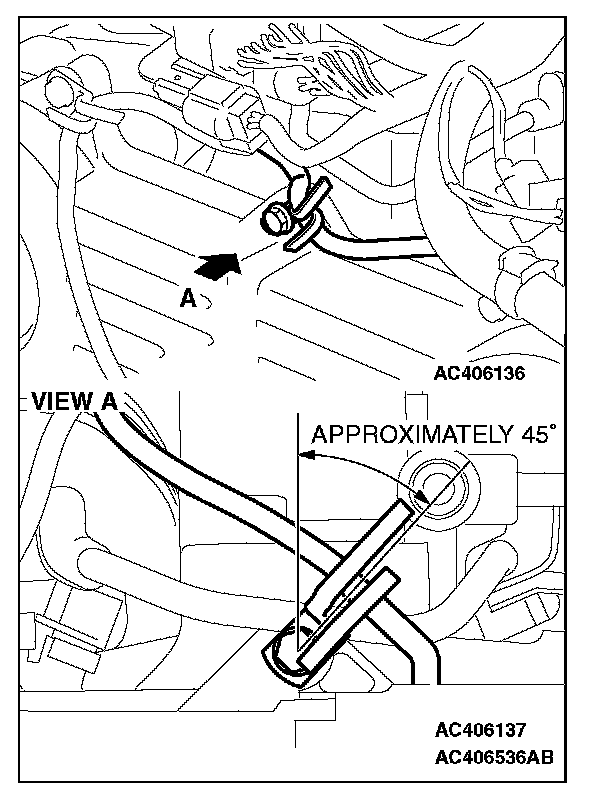

>>B<< CLIP INSTALLATION




1. Install the clip to the the timing belt front upper cover as shown.
2. Tighten the clip mounting bolt to the specified torque.

Tightening torque: 11 ± 1 N.m (98 ± 8 ft-lb)
