Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2008
>>
Eclipse L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Specifications
>>
Electrical Specifications
Electrical Specifications

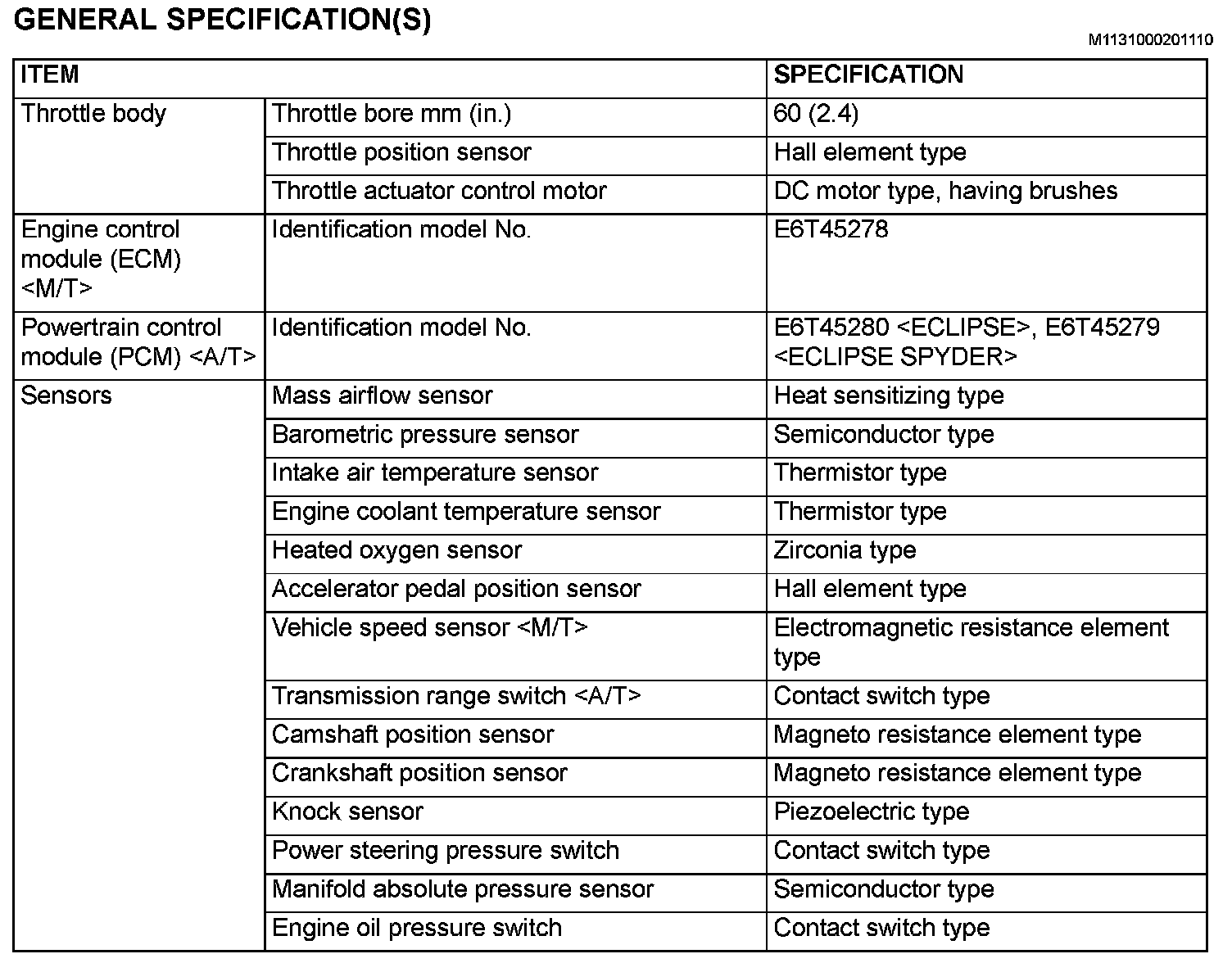

General Specification(s) (Part 1):

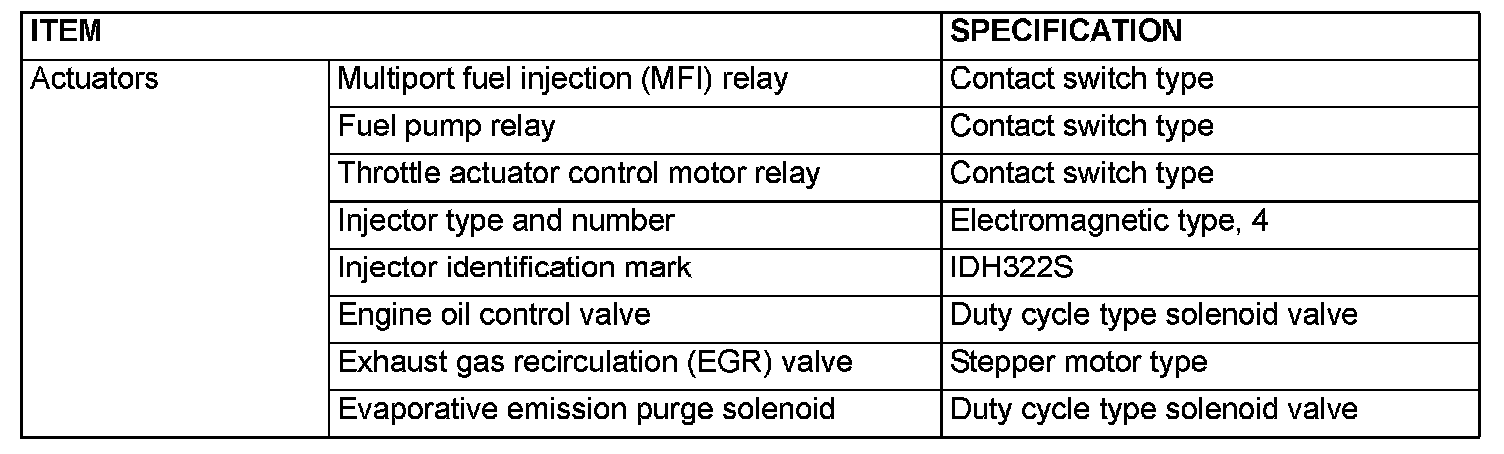

General Specification(s) (Part 2):

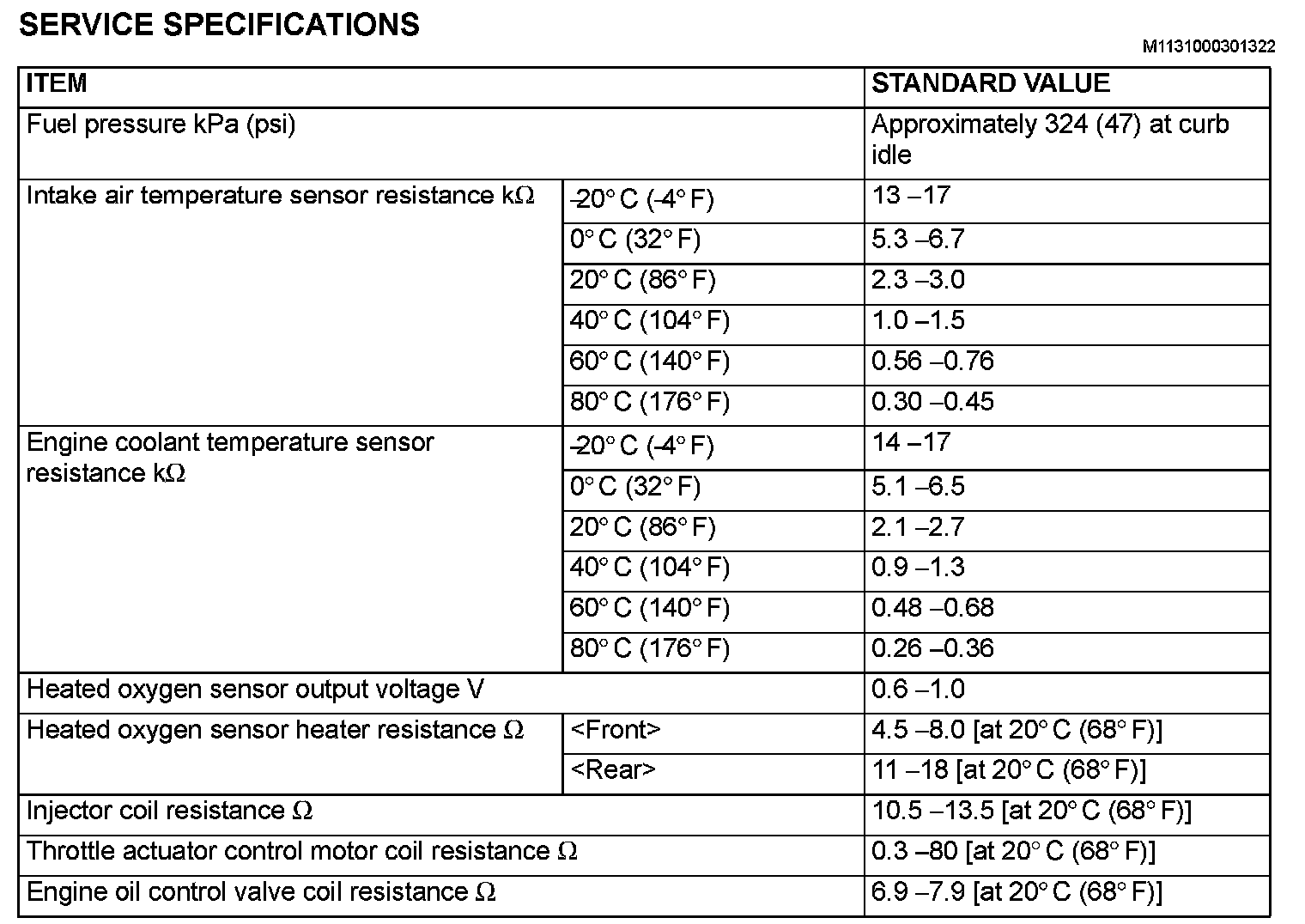

Service Specifications:
