Ignition Coil: Service and Repair
IGNITION COIL

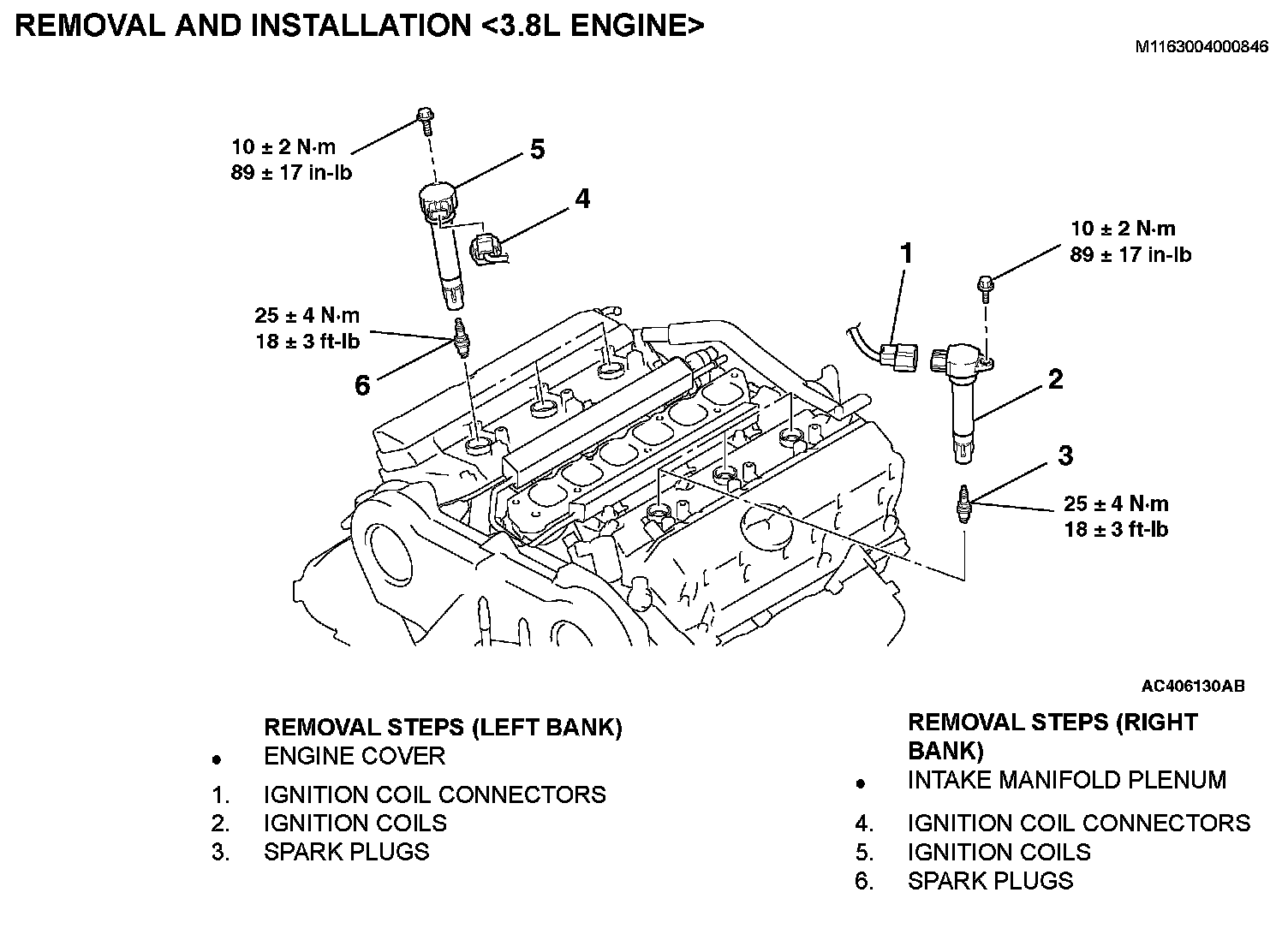

REMOVAL AND INSTALLATION [3.8L ENGINE]
Removal Steps 1-6:
