Operation CHARM: Car repair manuals for everyone.
Home >> Mitsubishi >> 2009 >> Galant L4-2.4L (4G69) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Engine Mechanical >> Tightening Specifications

Tightening Specifications

FASTENER TIGHTENING SPECIFICATIONS

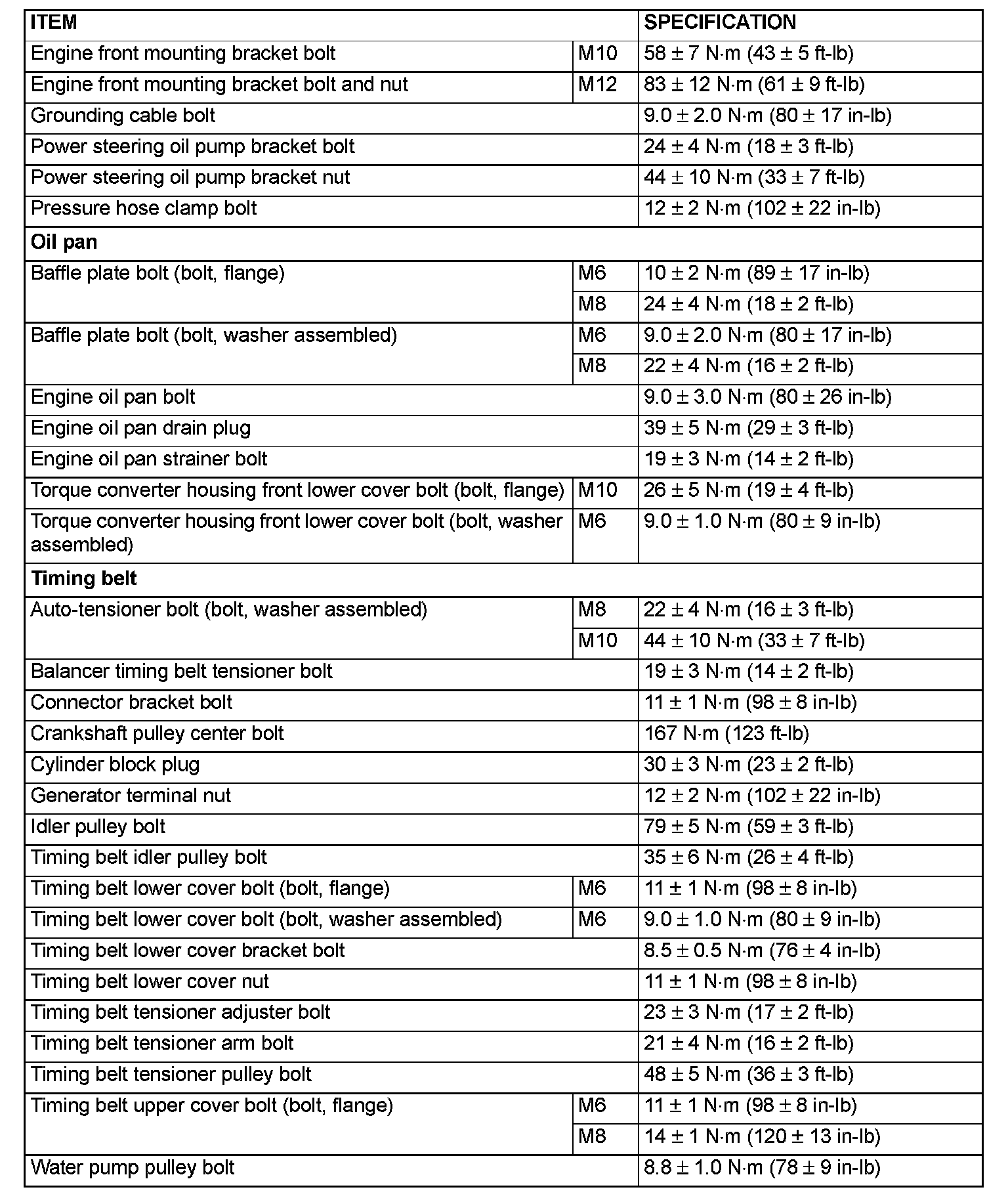

Part 1:

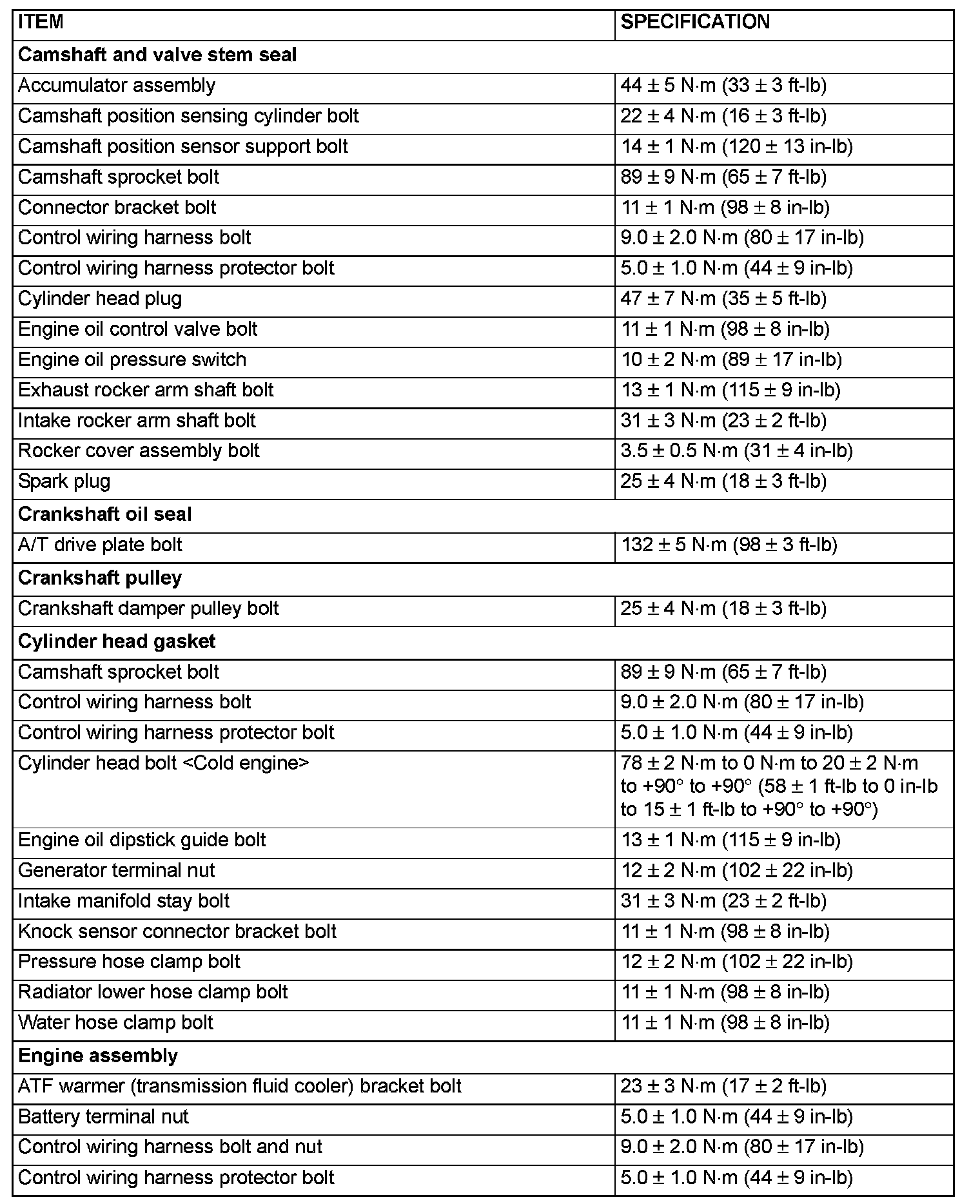

Part 2:
