Rear

REAR DISC BRAKE ASSEMBLY

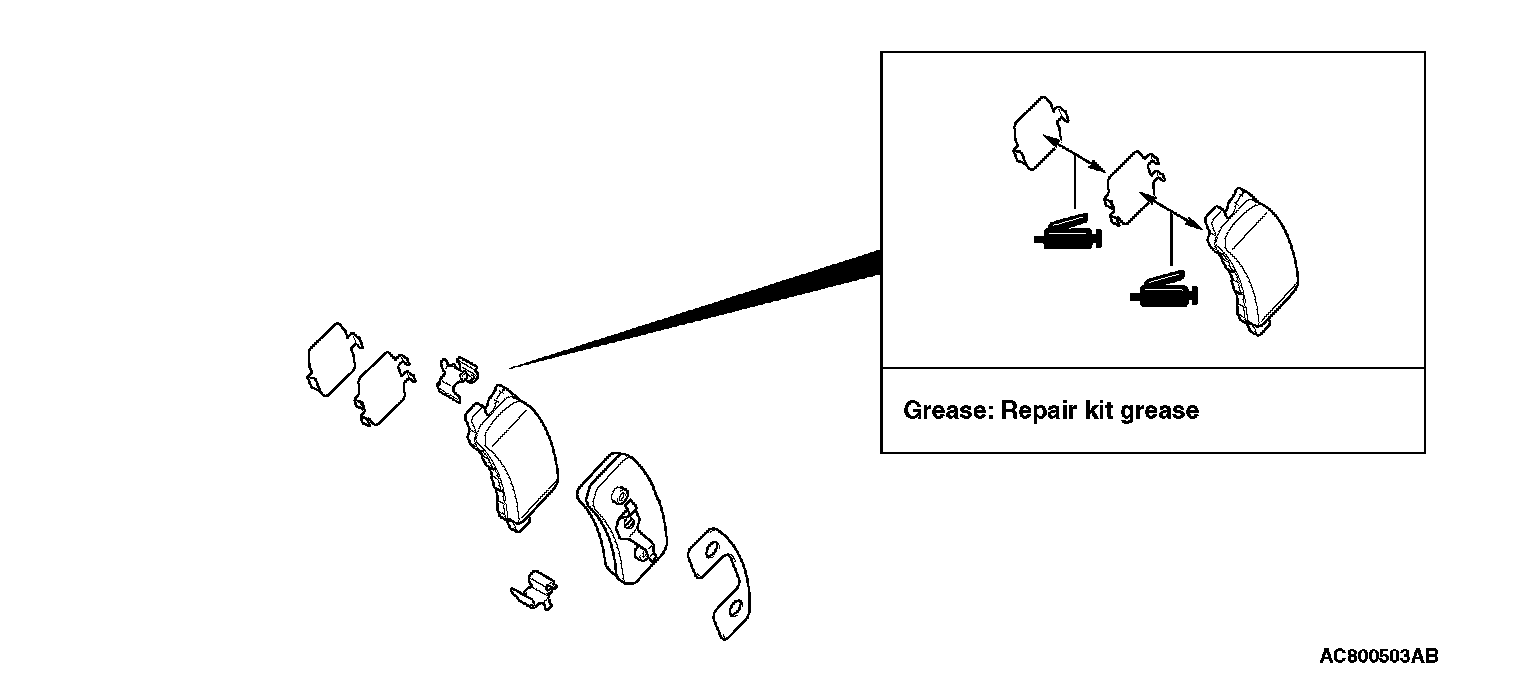

LUBRICATION POINTS - 14-INCH REAR DISC BRAKE

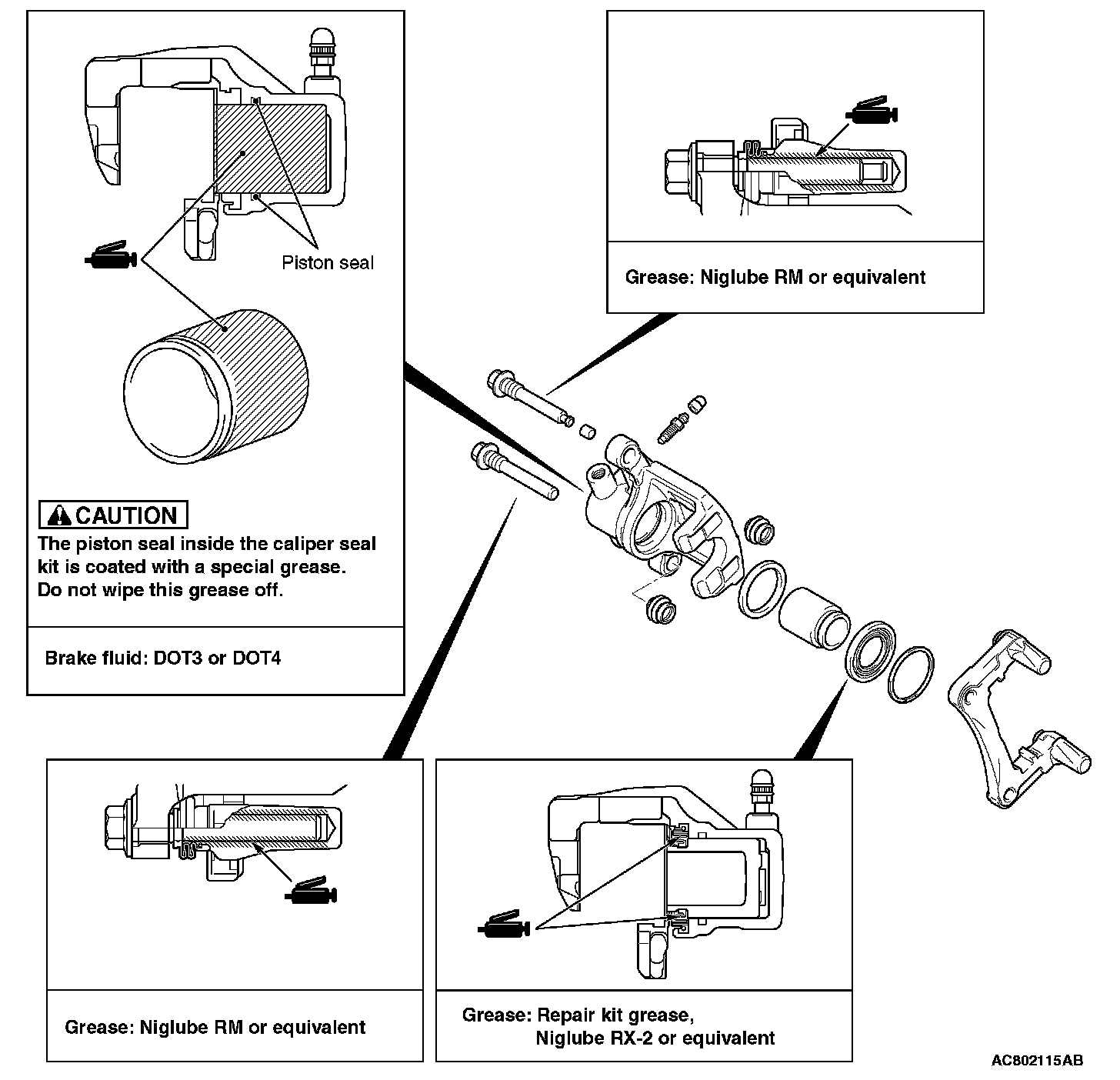

LUBRICATION POINTS - EXCEPT RALLIART

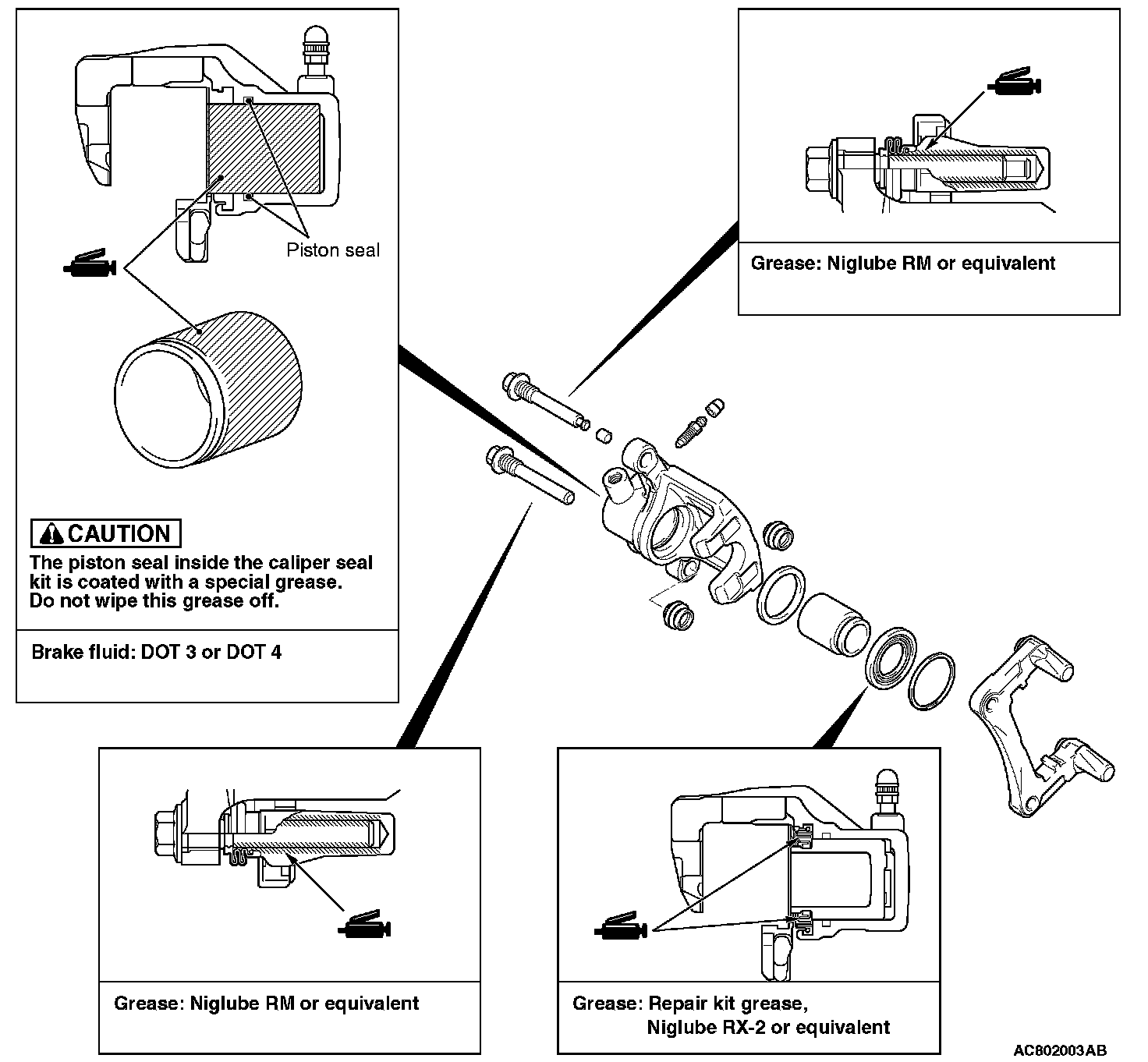

LUBRICATION POINTS - RALLIART
