Freeze Frame Data Item For M.U.T.-III

Freeze Frame Data Item for M.U.T.-III

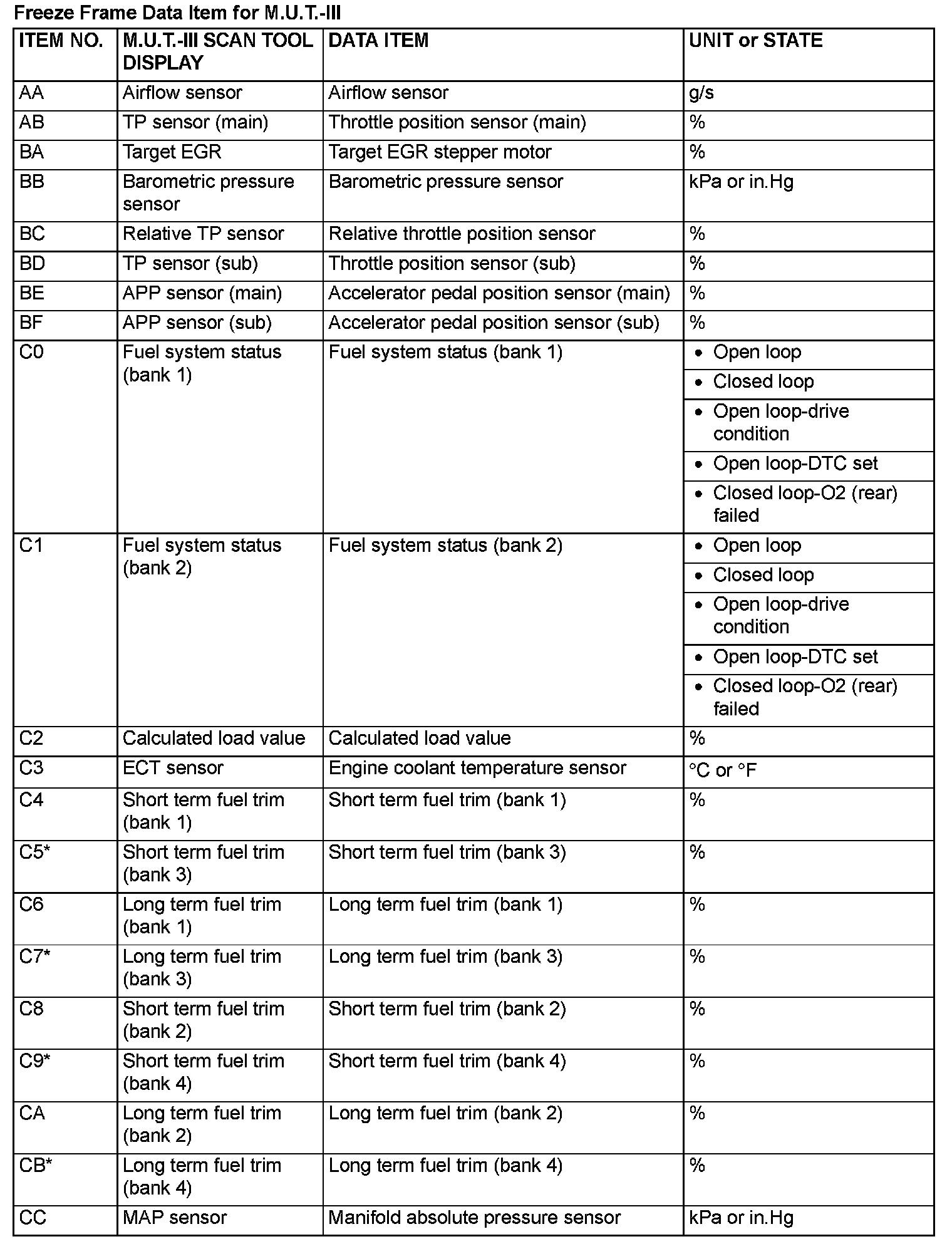

Freeze Frame Data Item For M.U.T.-III (Part 1):

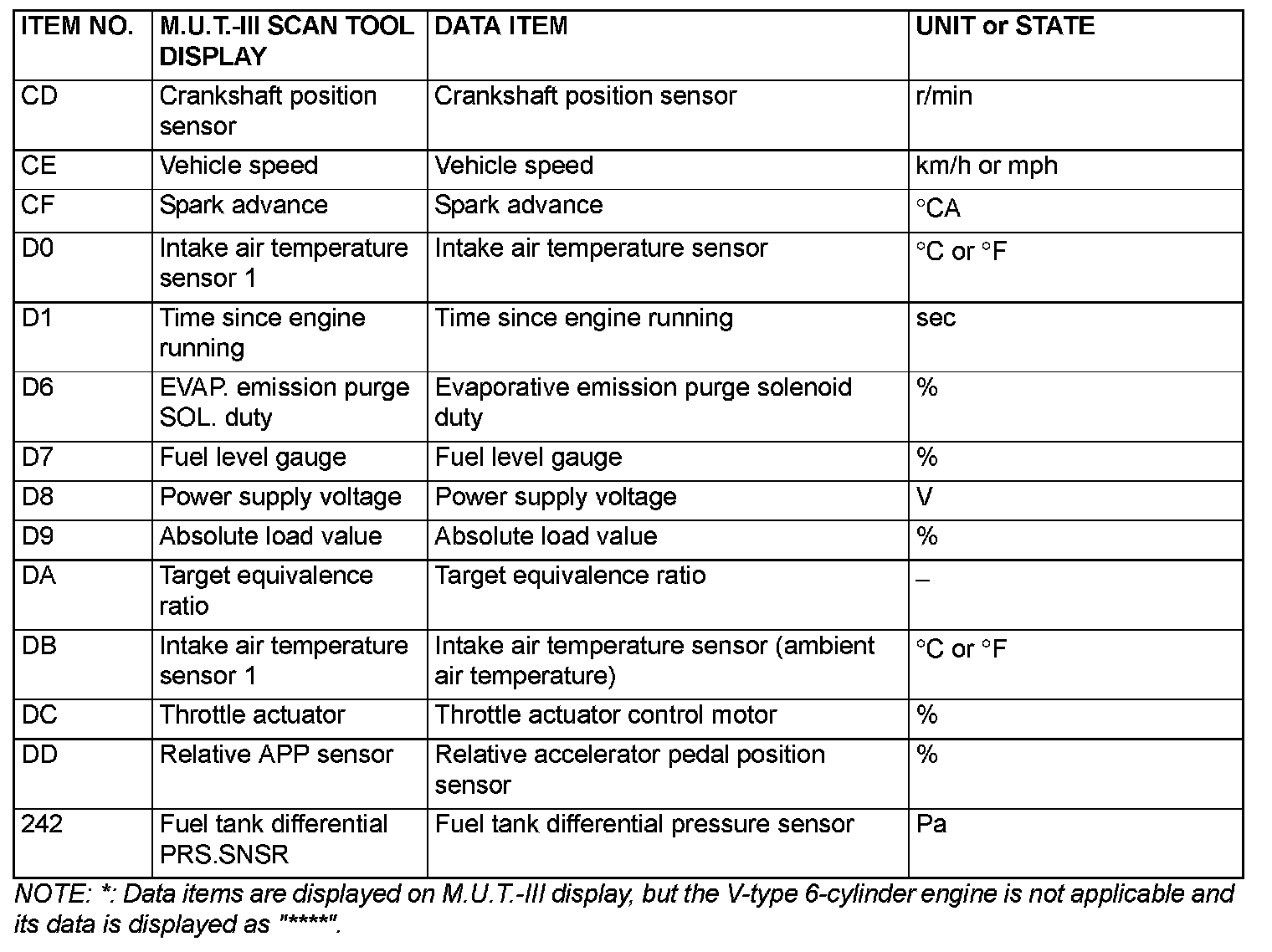

Freeze Frame Data Item For M.U.T.-III (Part 2):

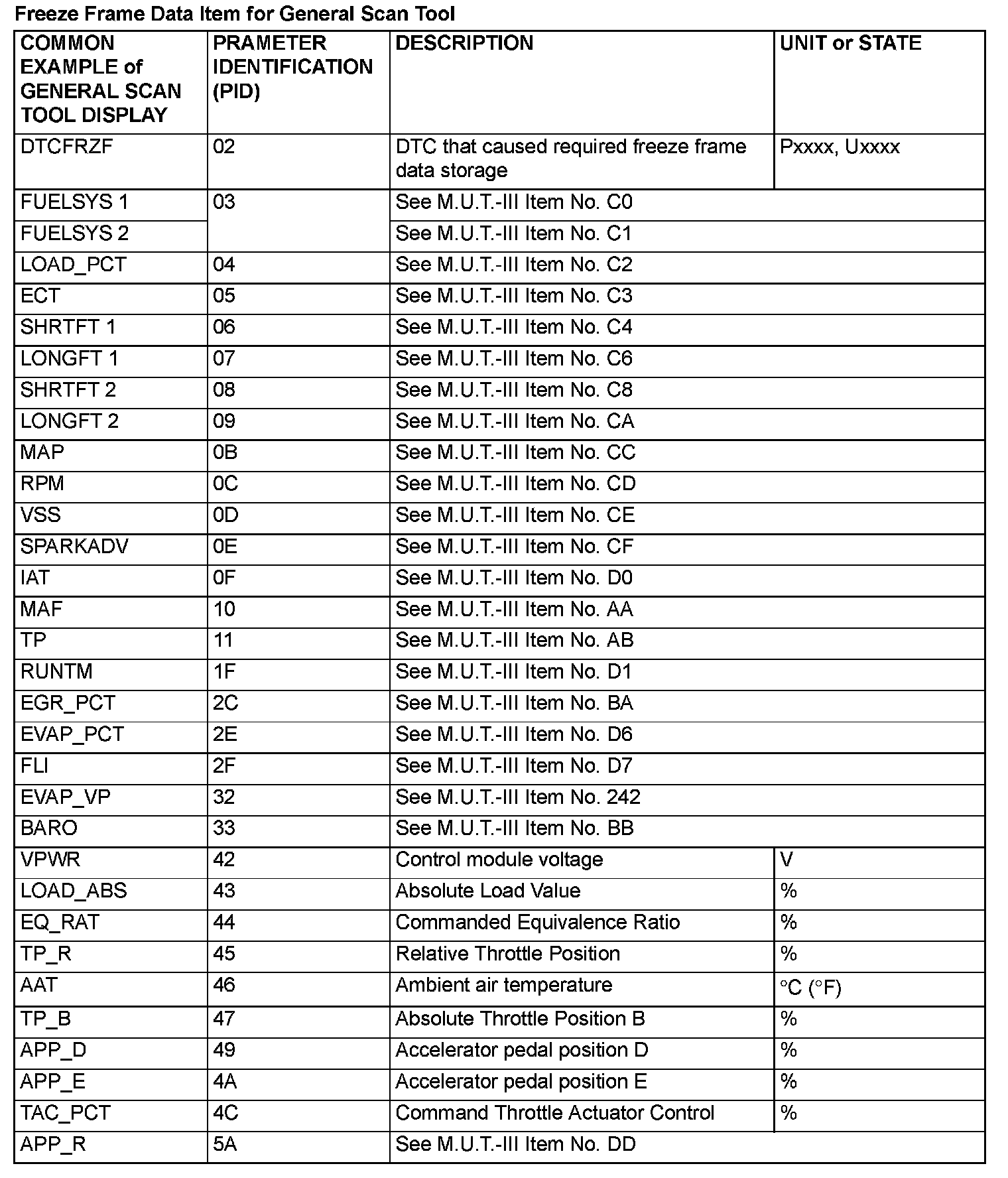

Freeze Frame Data Item for General Scan Tool


Freeze Frame Data Item for General Scan Tool:
