Powertrain Management: Locations
ON-VEHICLE SERVICE
COMPONENT LOCATION

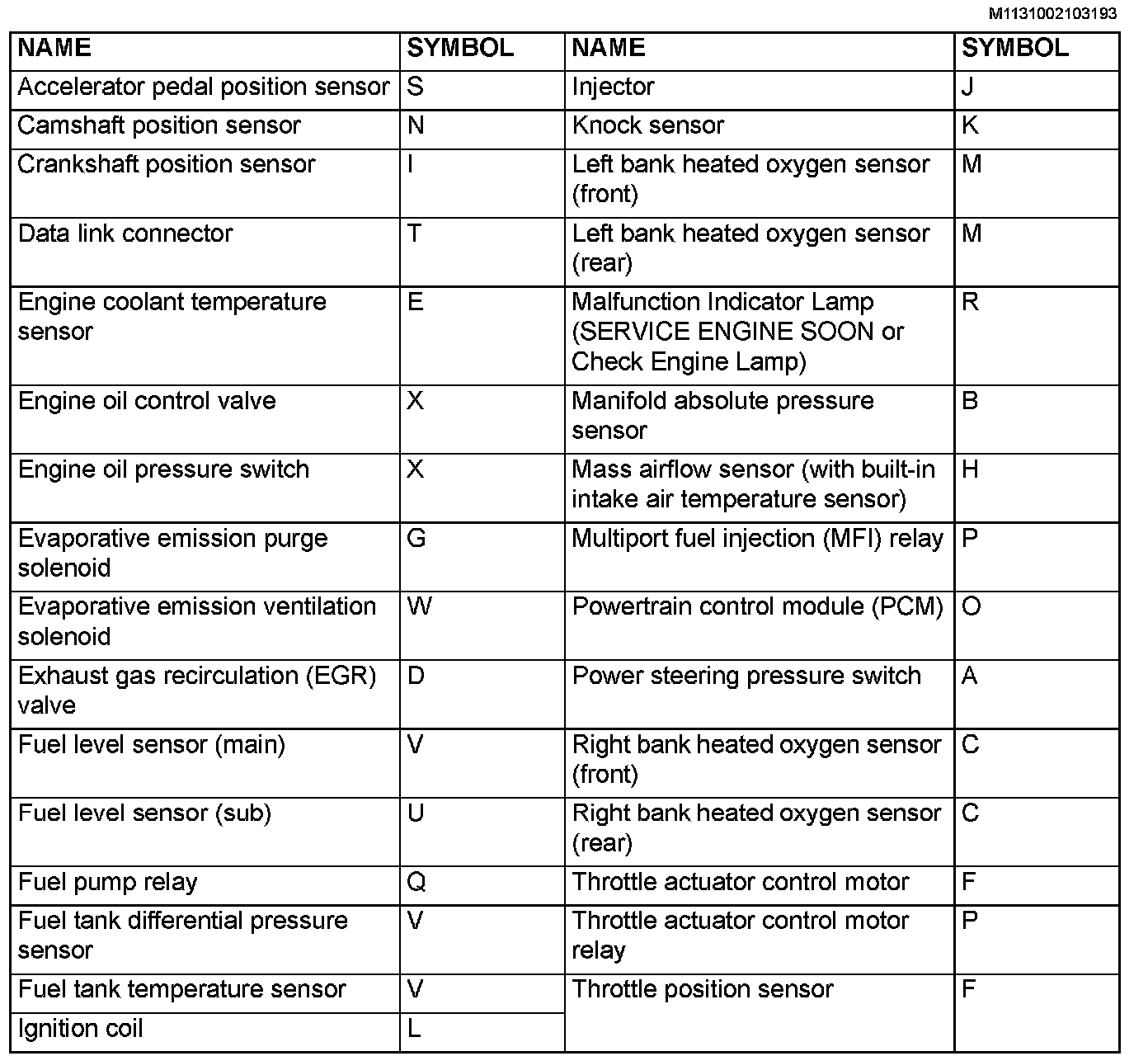

Component Location:
Overall View:

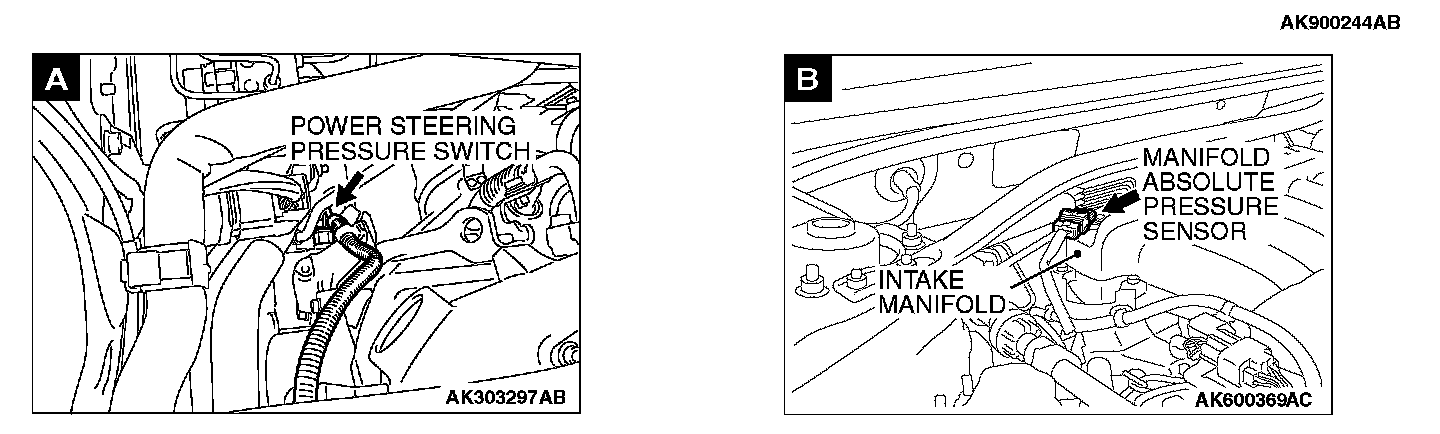

View A-B:

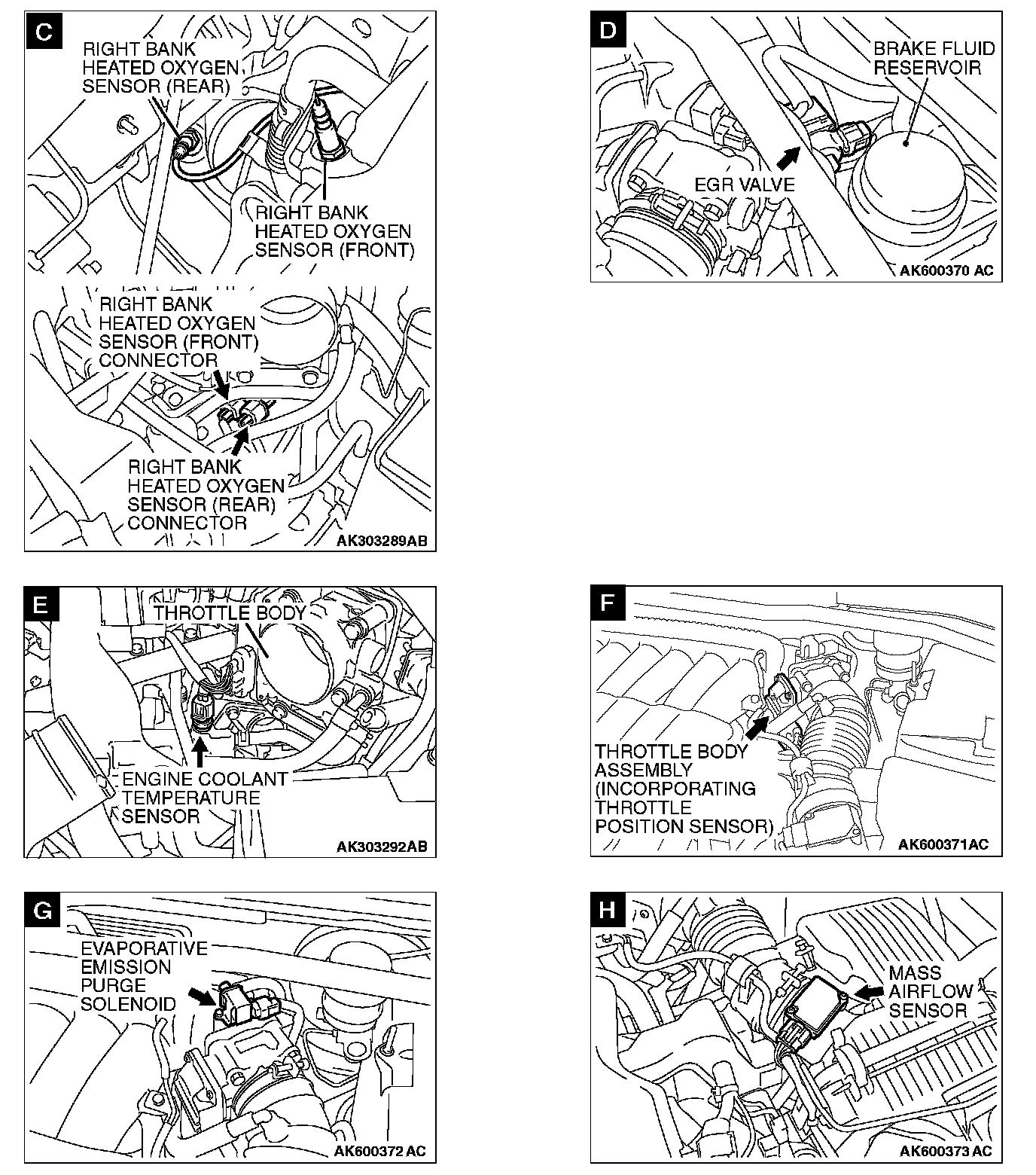

View C-H:

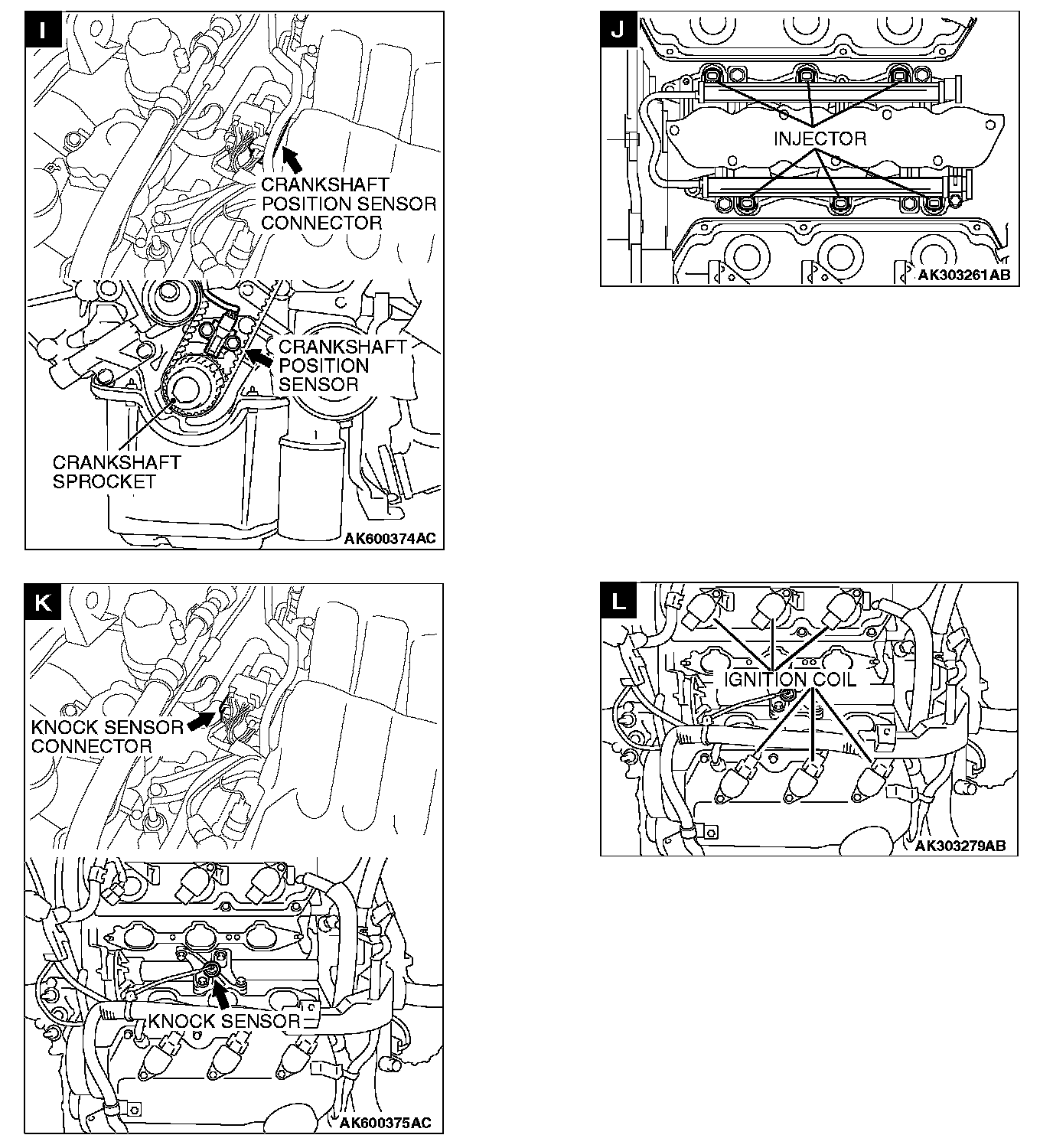

View I-L:

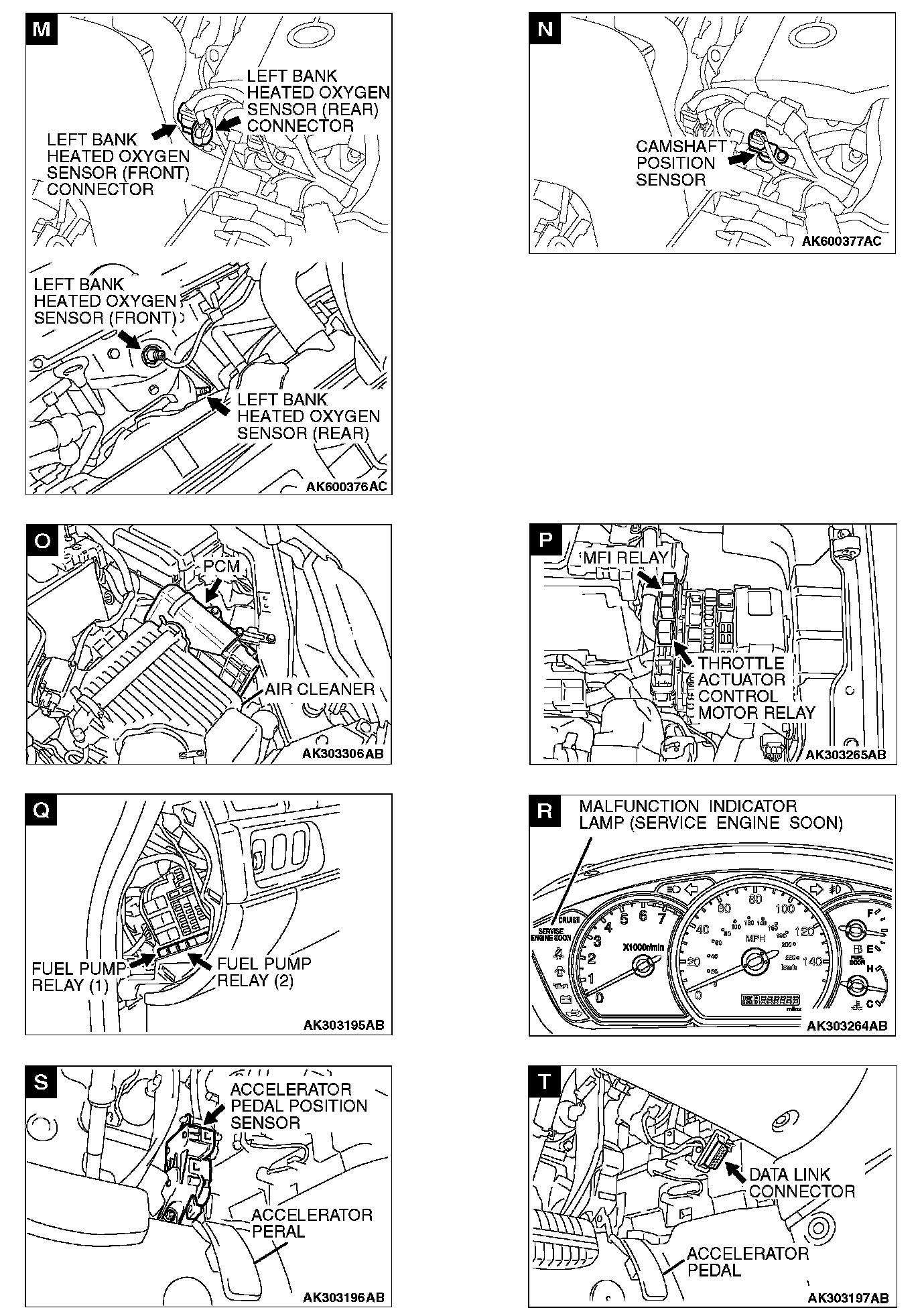

View M-T:

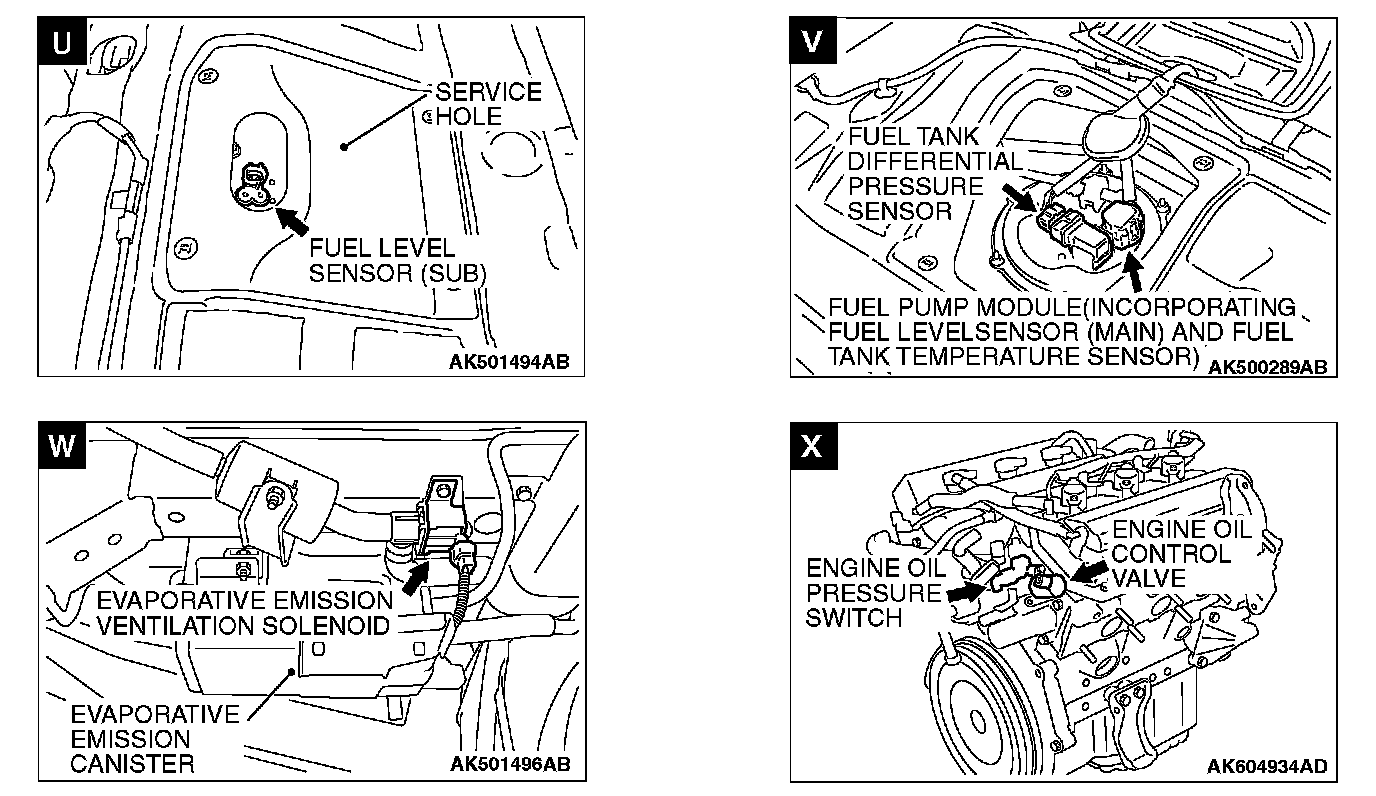

View U-X:
