Home >> Mitsubishi >> 2010 >> Lancer L4-2.4L (4B12) >> Repair and Diagnosis >> Brakes and Traction Control >> Disc Brake System >> Service and Repair >> Procedures >> Rear >> 16-Inch Front Disc Brake

16-Inch Front Disc Brake

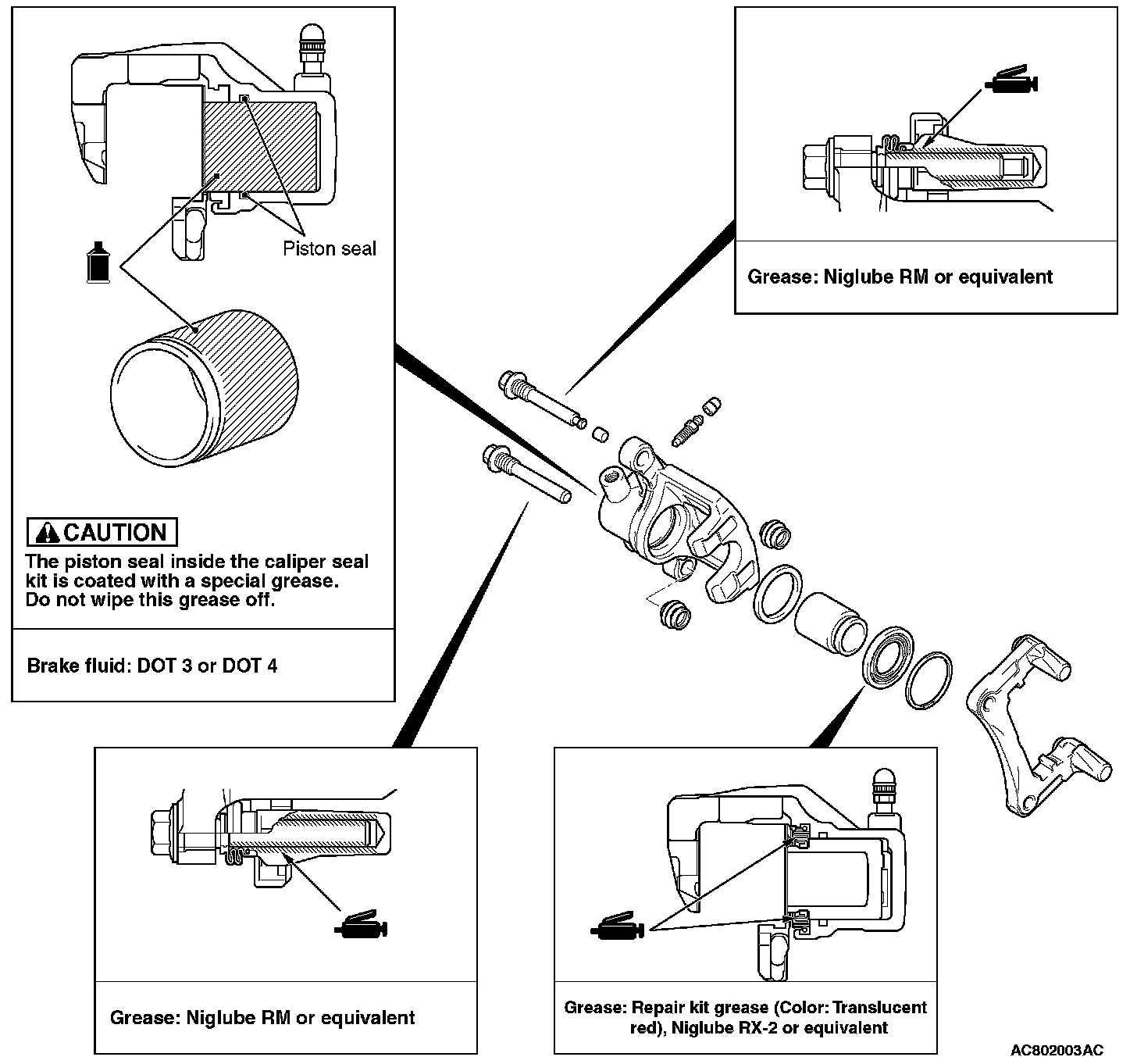

LUBRICATION POINTS
