Specifications
>>
Mechanical Specifications
>>
Engine
>>
Oil Pump, Engine
Oil Pump, Engine

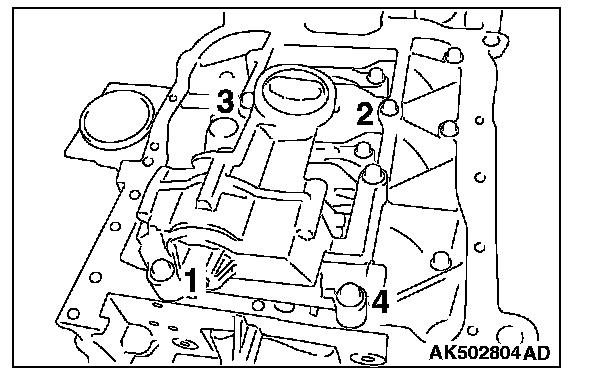

Balance shaft module
Tighten
20 Nm (14 ft-lb)
Retighten
44 Nm (32 ft-lb)
Completely loosen
Tighten
20 Nm again
Tighten
135°
