Automatically Shifted Manual Transmission/Transaxle
>>
Transaxle
Transaxle

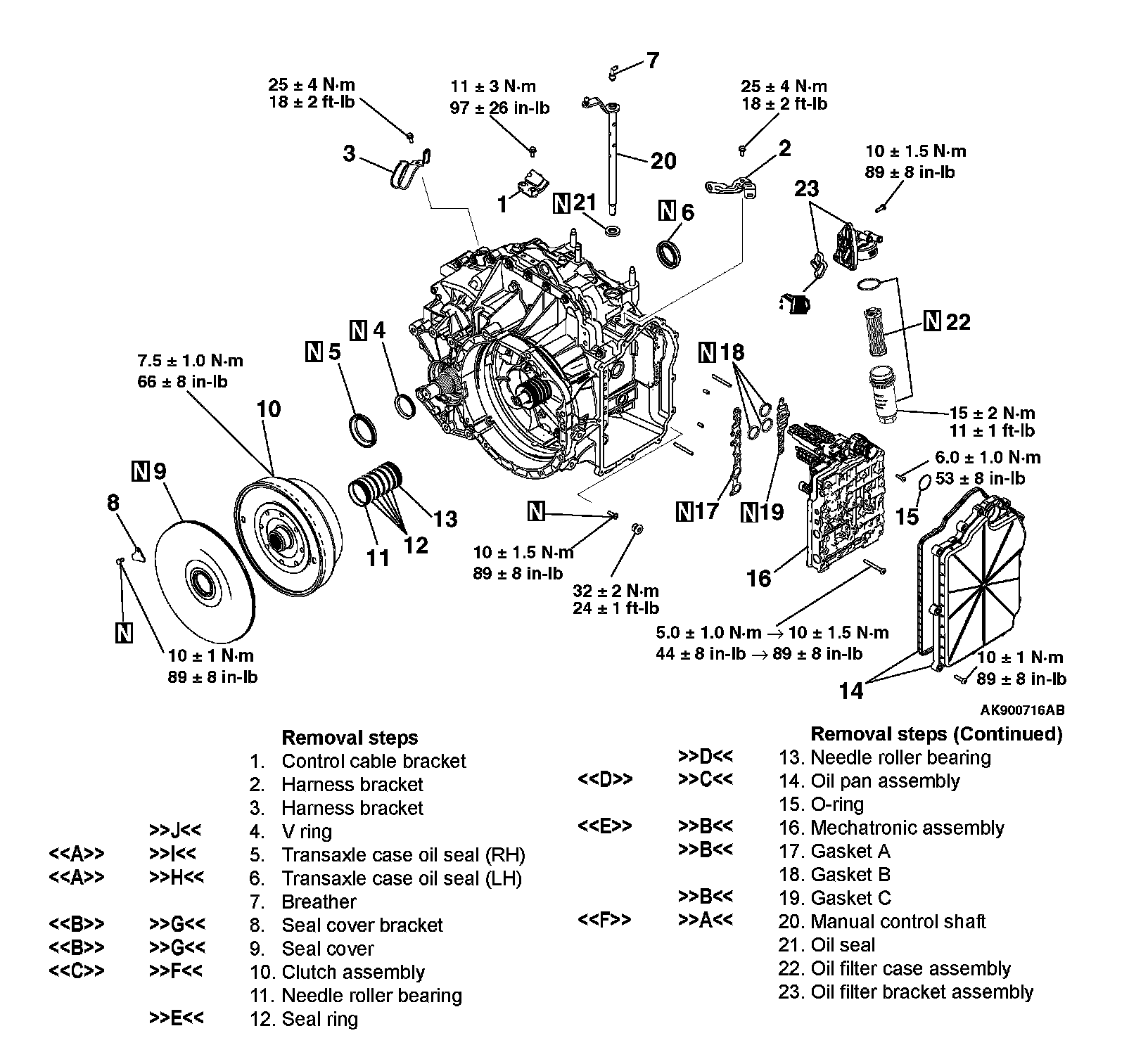

TRANSAXLE
DISASSEMBLY AND ASSEMBLY
Removal Steps 1-23:
