Powertrain Management: Locations

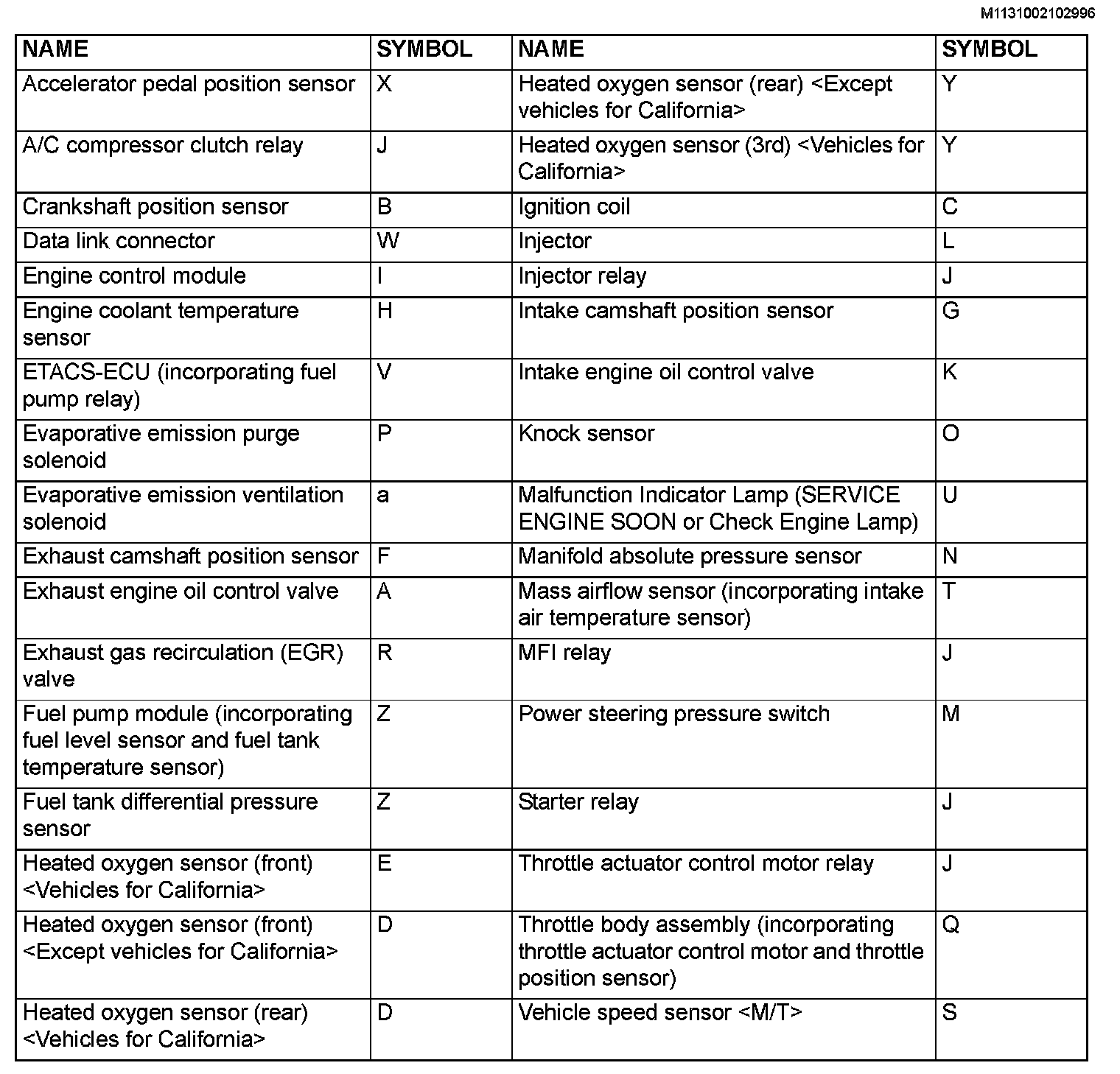

COMPONENT LOCATION

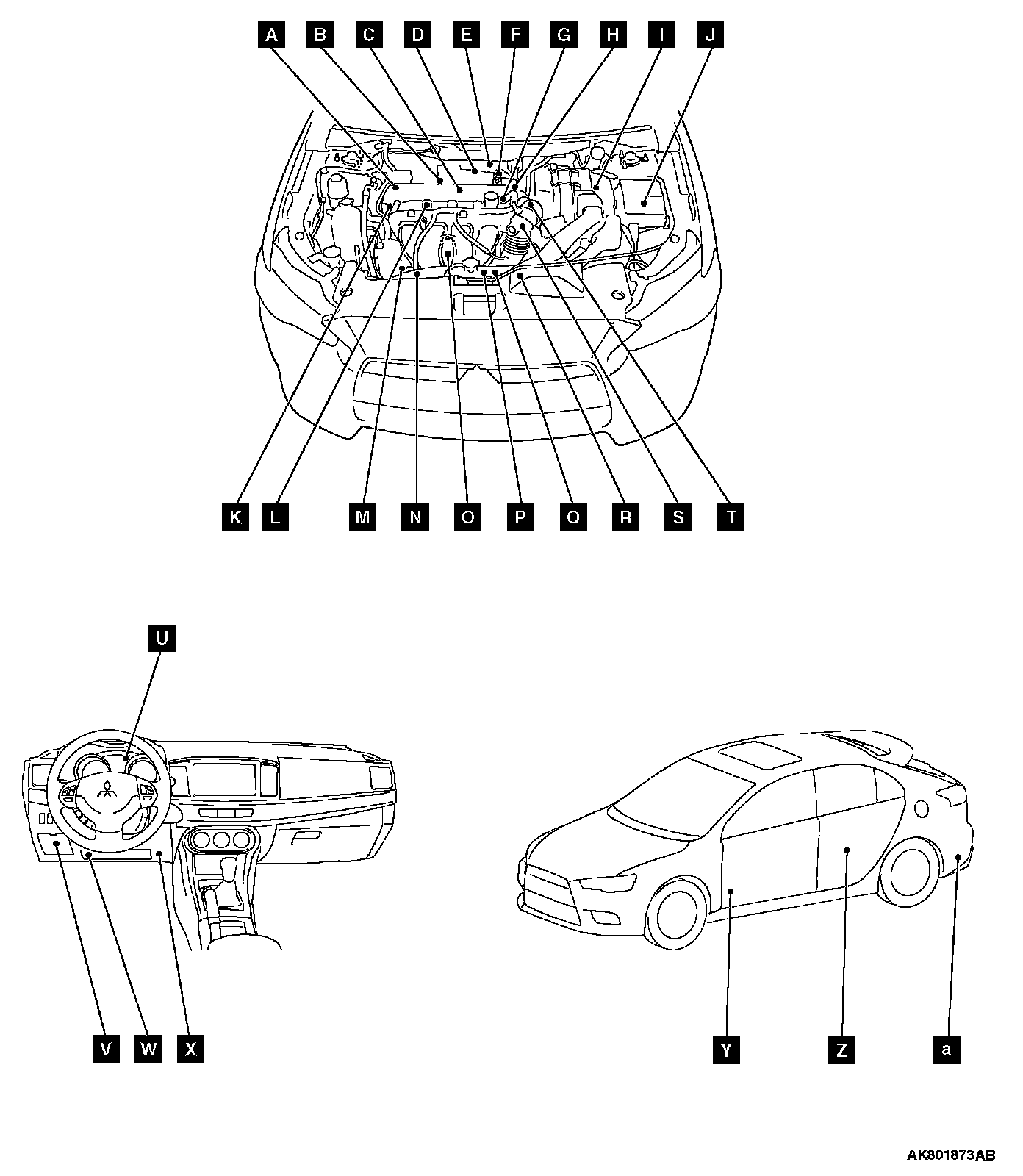

Overall View:

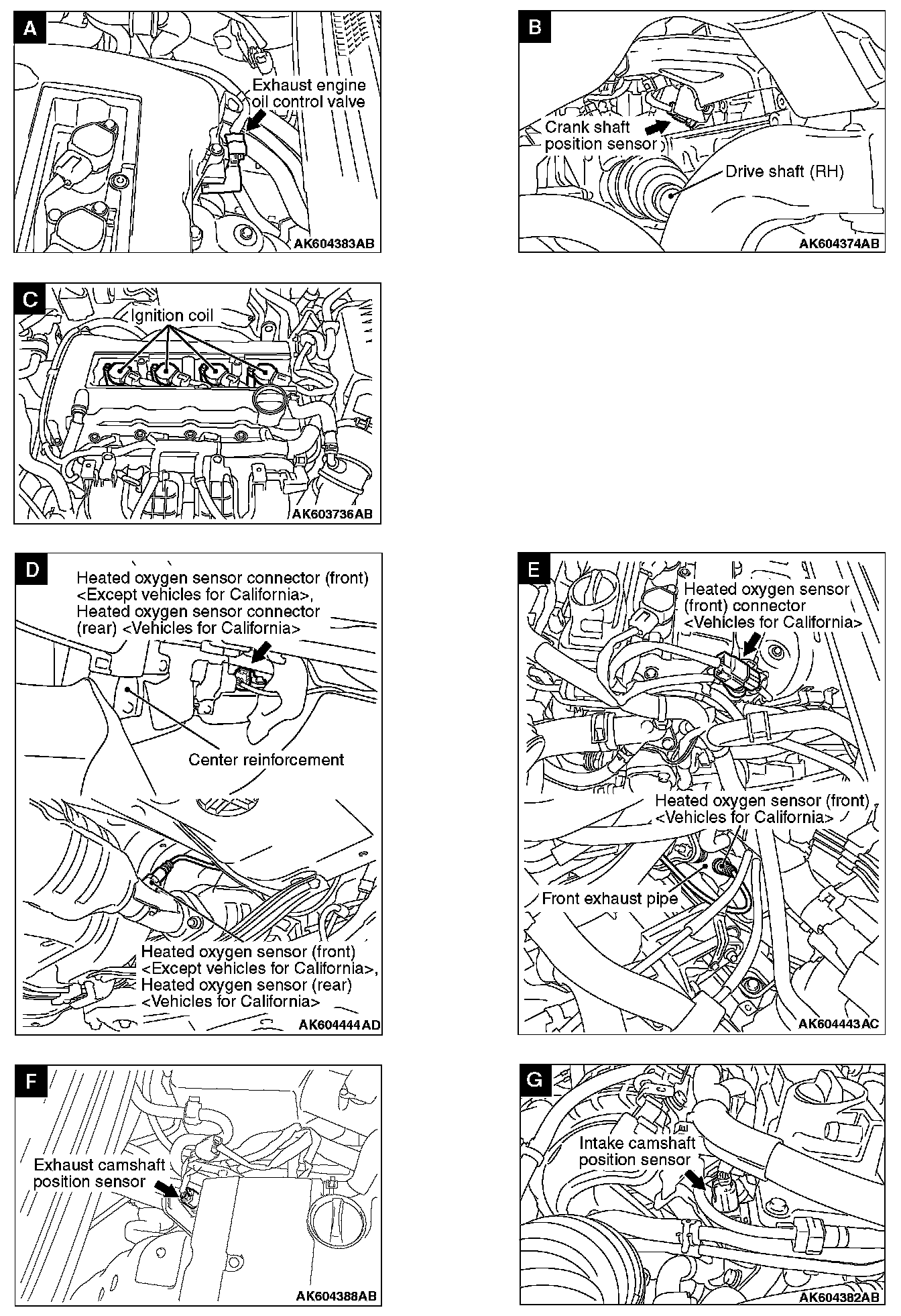

View A-G:

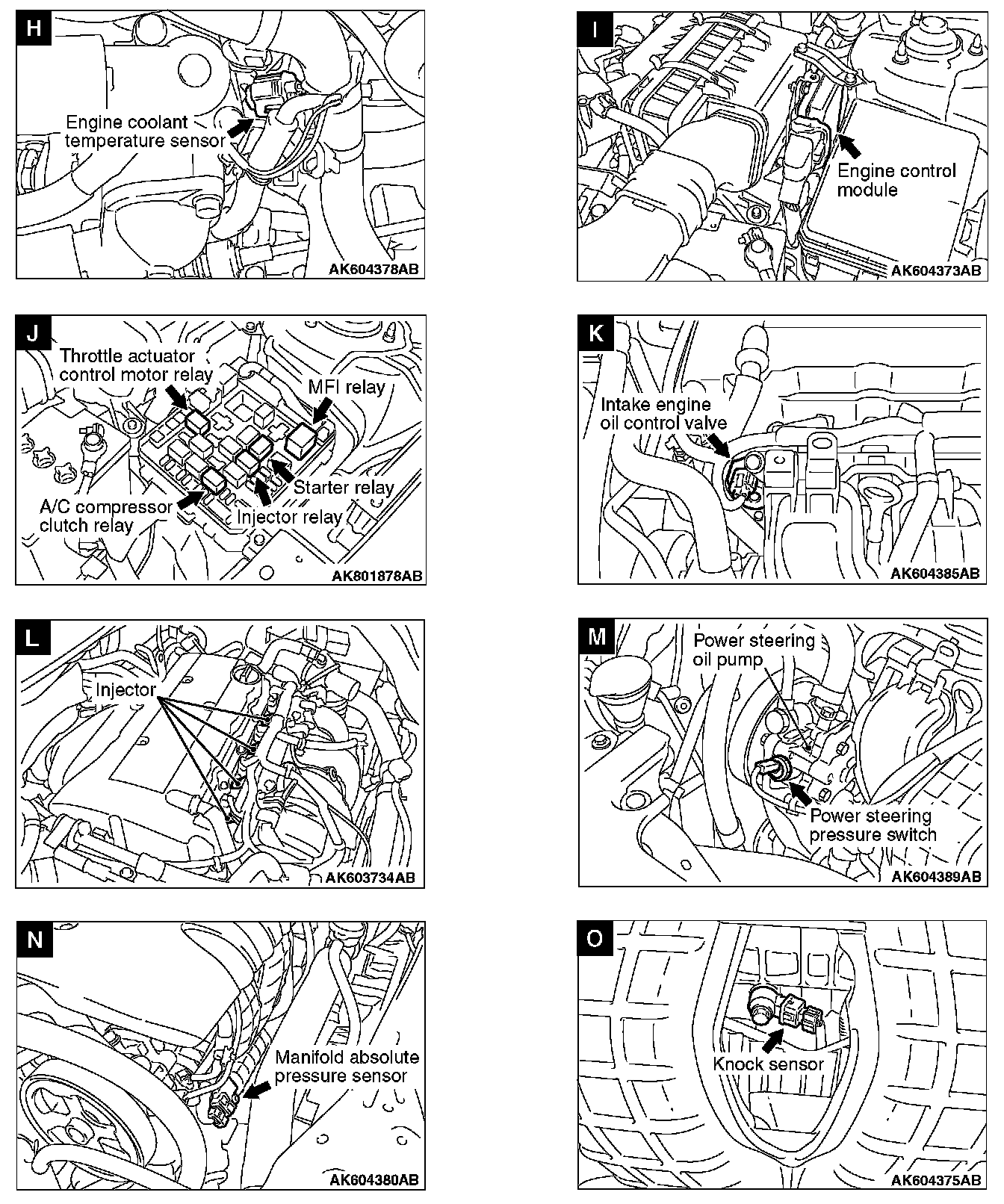

View H-O:

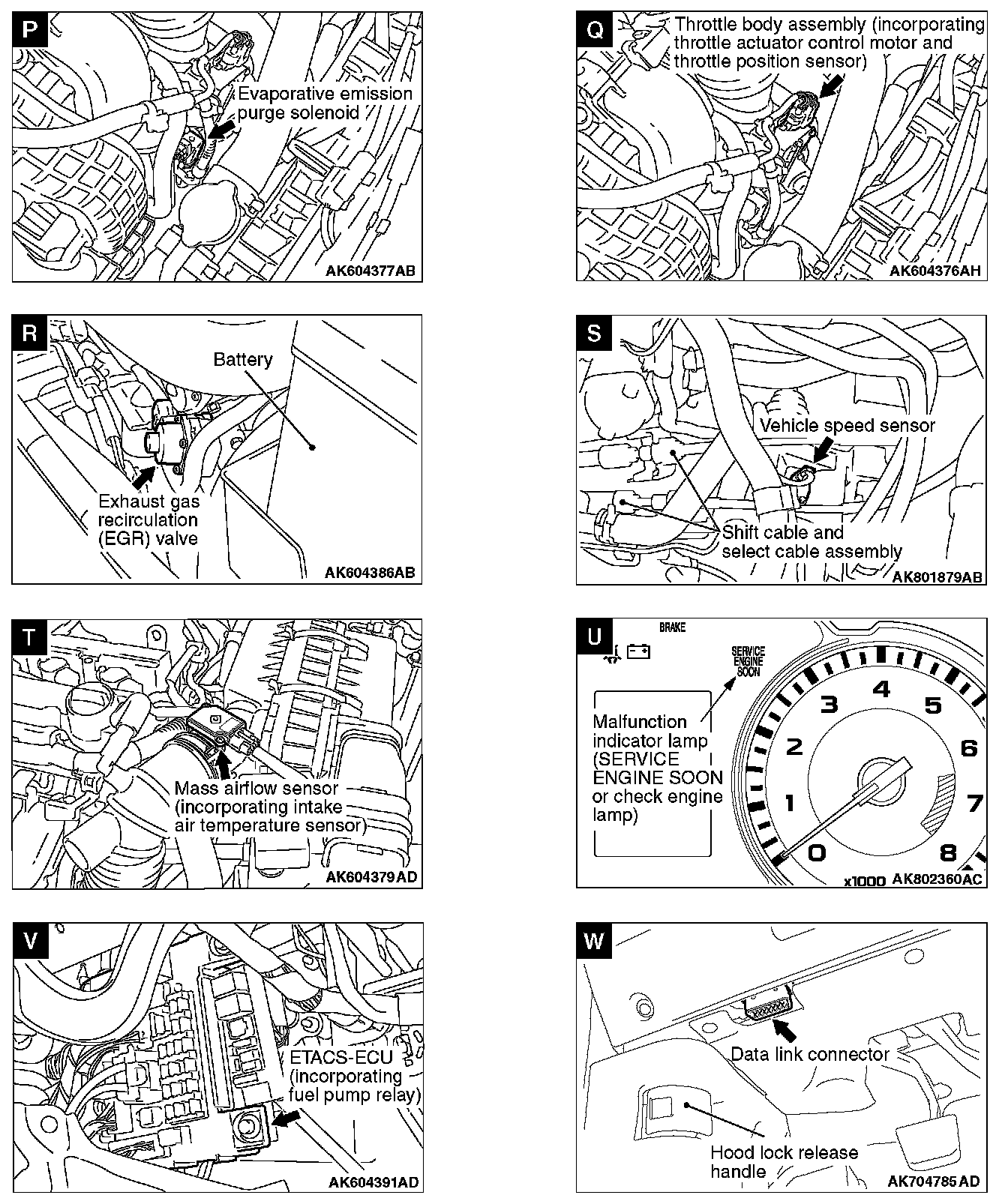

View P-W:

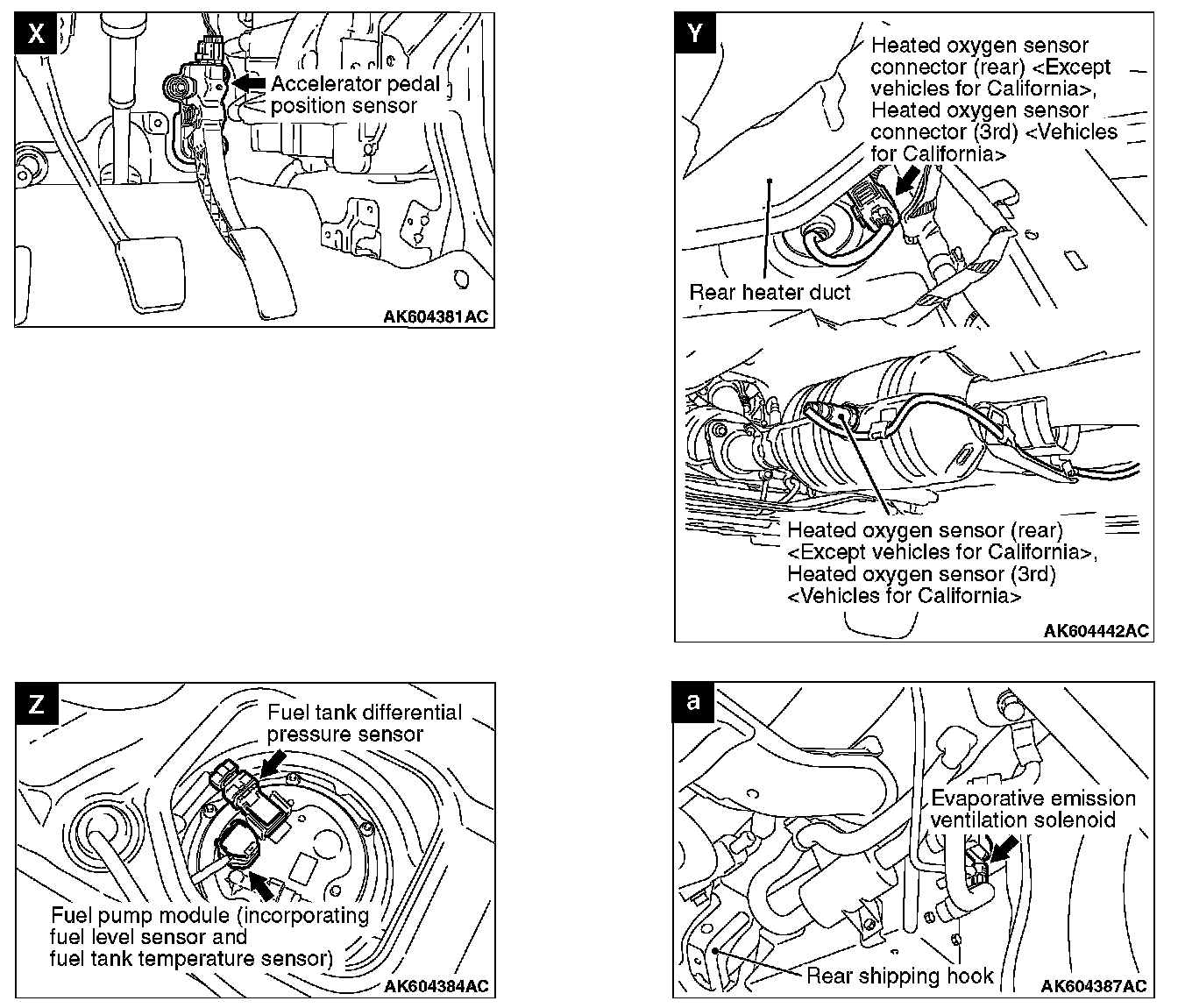

View X-a:
