Battery

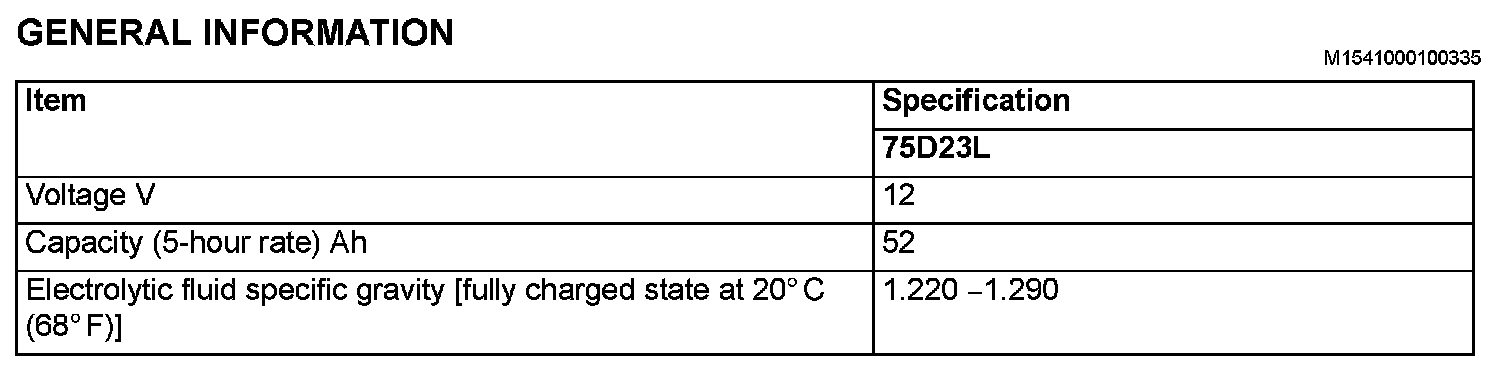

GENERAL INFORMATION







Battery

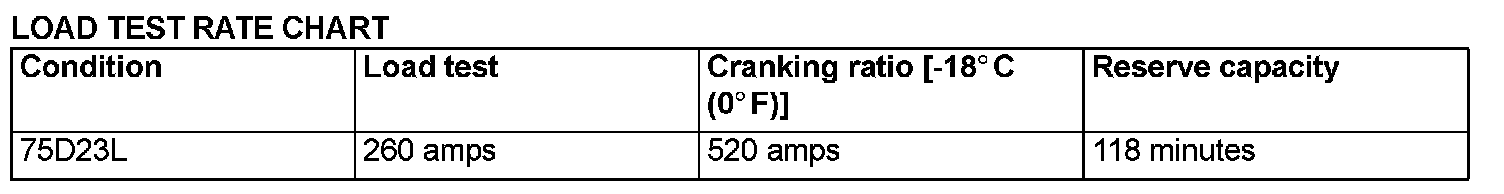

LOAD TEST RATE CHART


Load Test Rate Chart:

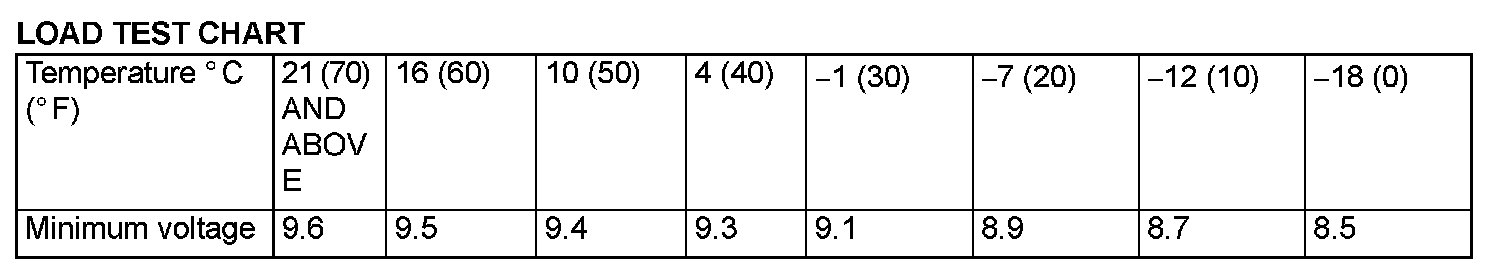

LOAD TEST CHART


Load Test Chart:
