Home
>>
Mitsubishi
>>
2012
>>
Galant L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>

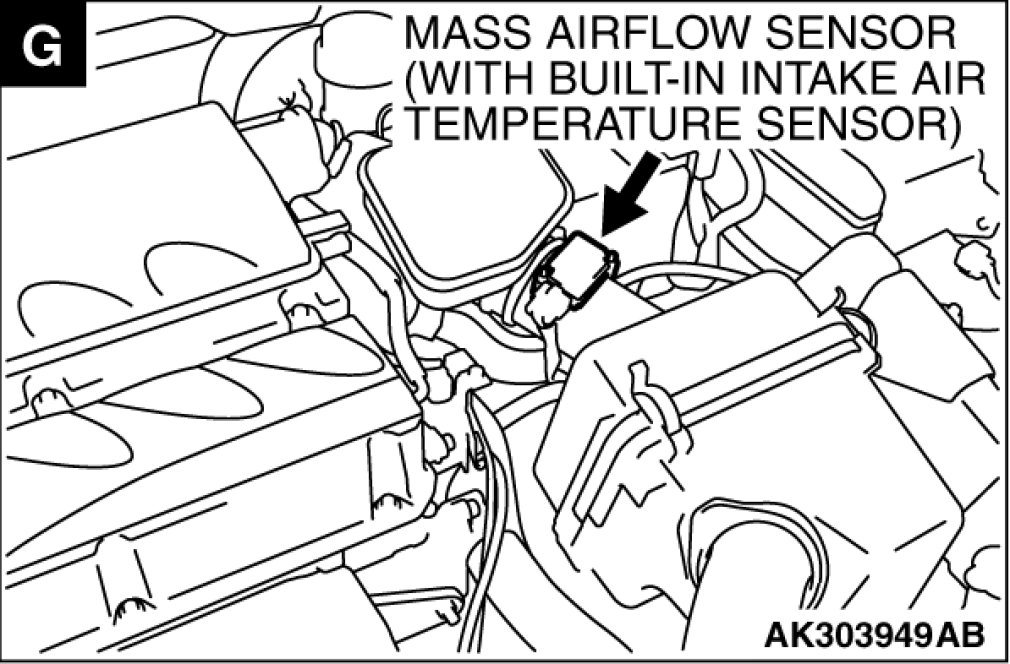

Air Flow Meter/Sensor
>>
Locations
>>

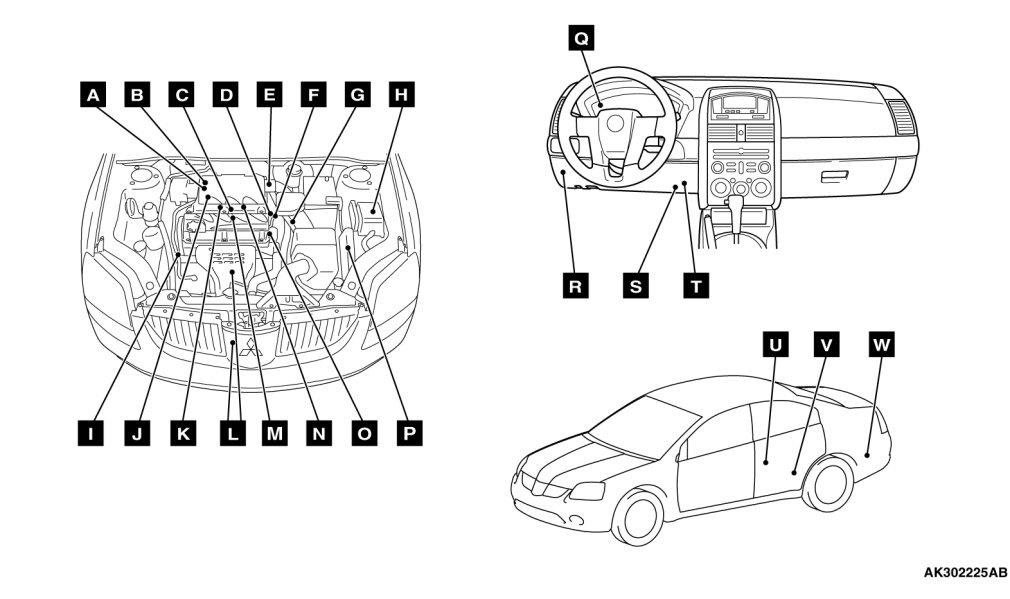

Powertrain Component Locations
Powertrain Component Locations

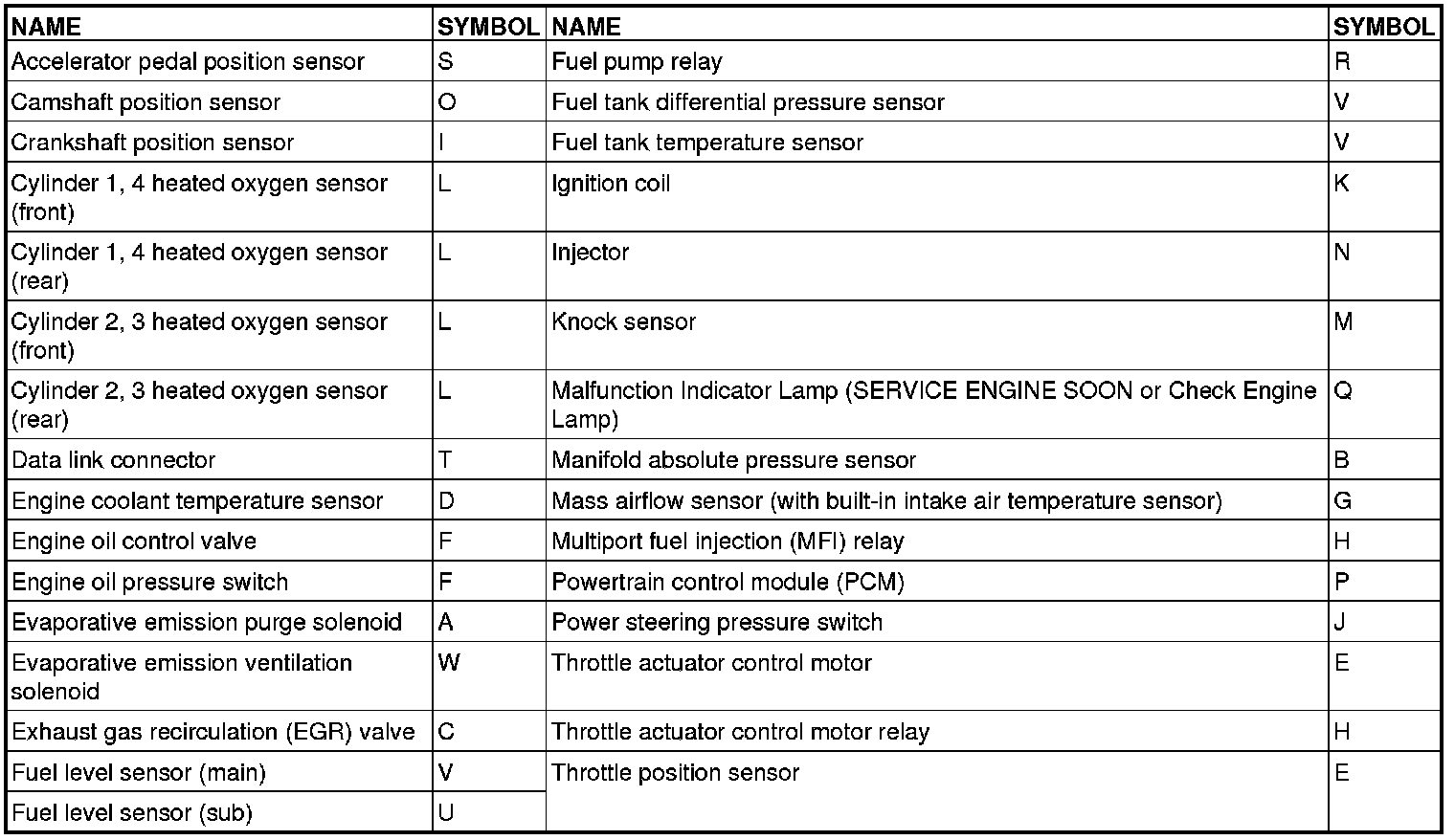

COMPONENT LOCATION
