Air Conditioning Switch: Service and Repair

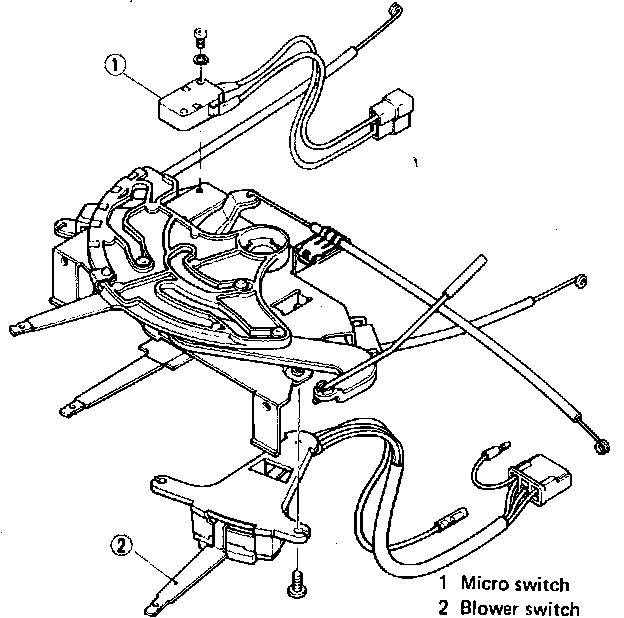

Fig. 12 Blower switch & A/C switch removal:

1. Disconnect battery ground cable and remove A/C heater control as outlined in "Control Assembly, Replace."
2. Remove screws securing switches to control, then remove switches, Fig. 12.
3. Reverse procedure to install.
