Emission Control System - Non-Calif.
Emission Control System - Non-Calif.

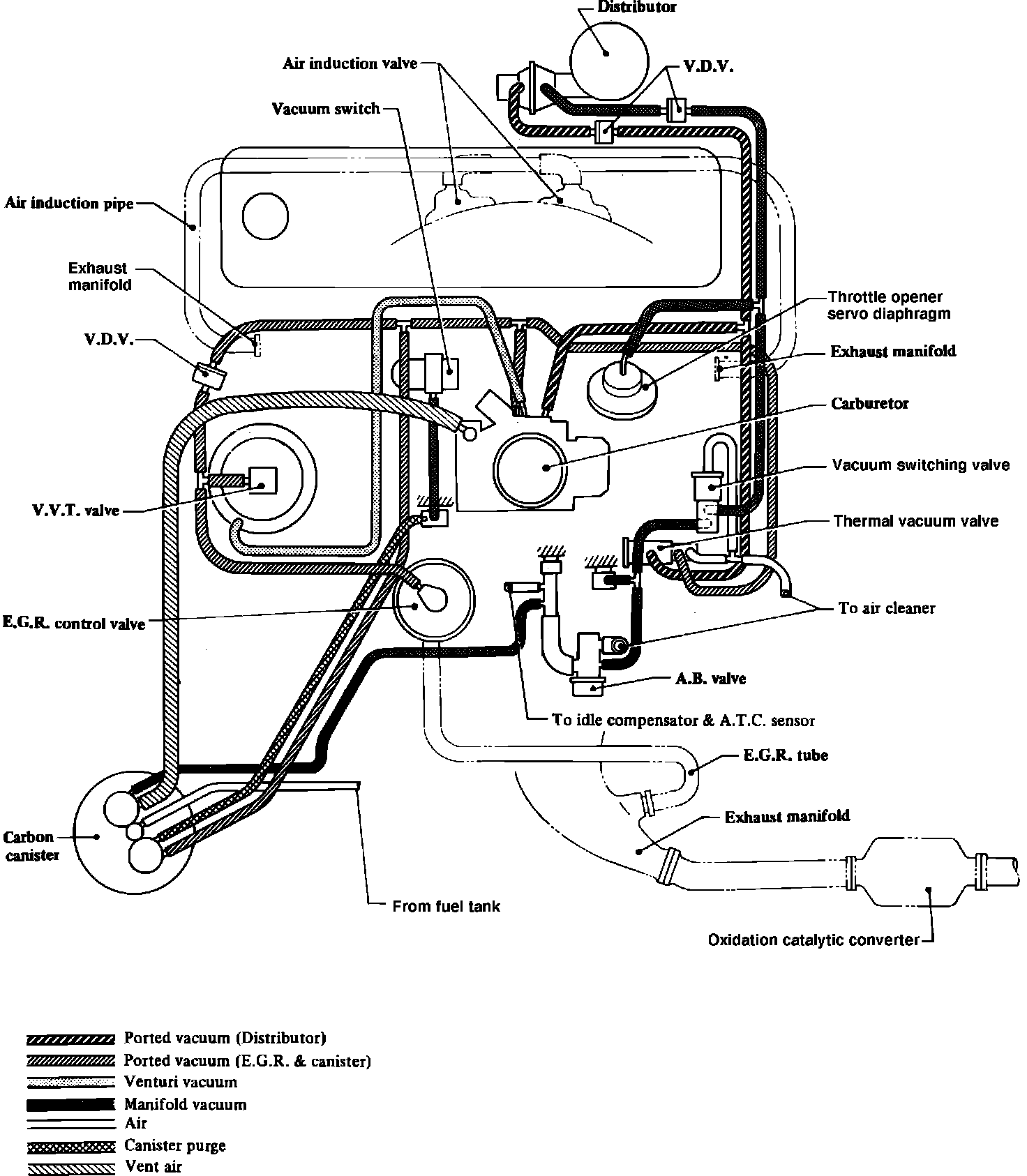

Fig. 2 Emission control system & engine compartment reference diagram.:
