Vacuum Control Flap Switchover Valve: Testing and Inspection

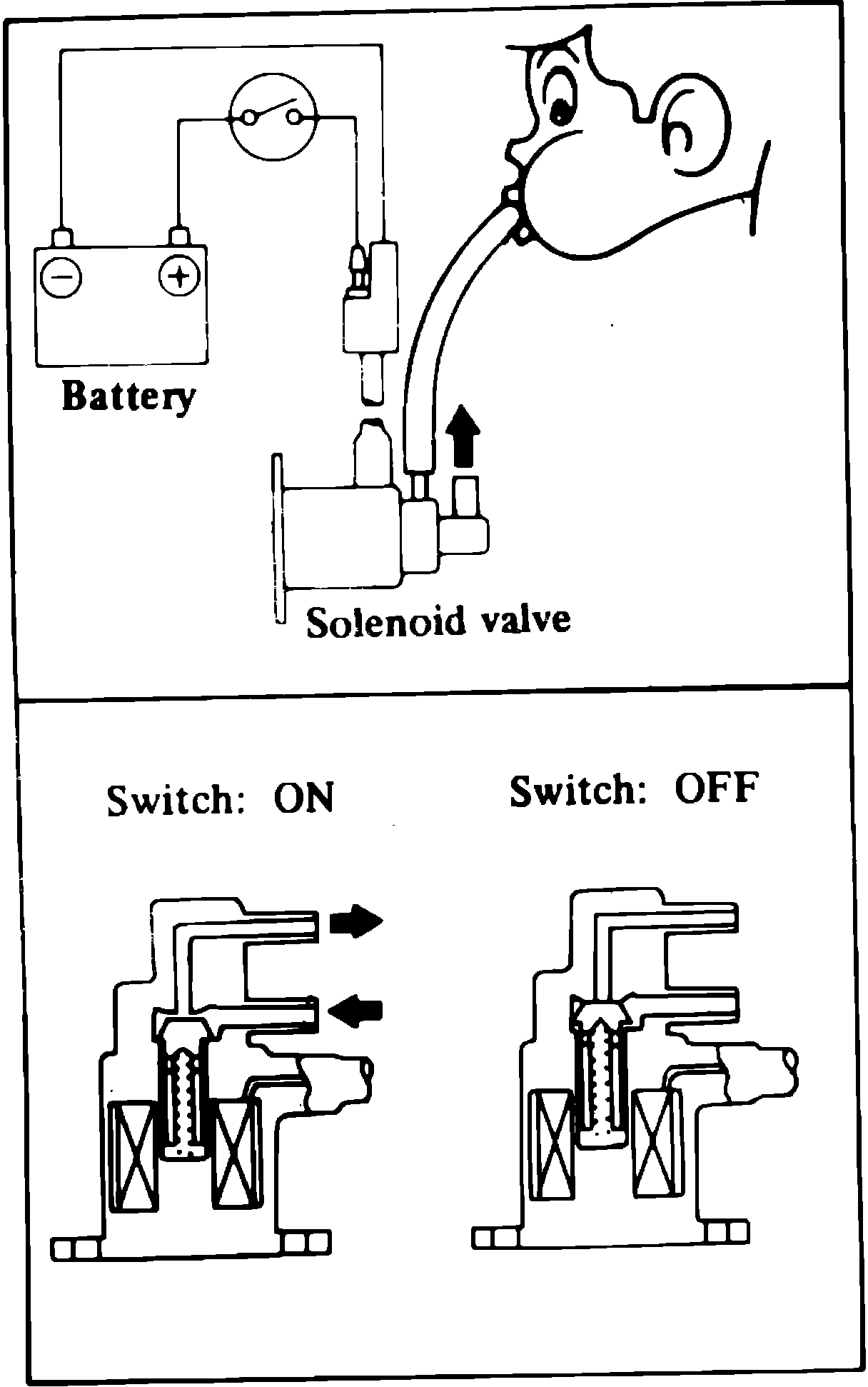

Fig. 22 Vacuum switching valve air flow:

1. Remove both hoses and harness, solenoid attaching screws and remove valve.
2. Operate solenoid valve with battery voltage to determine if air flows through valve properly, Fig. 22.
