Inspection of TCM (A/T Control Module)

INSPECTION OF TCM (A/T CONTROL MODULE)




- Measure voltage between each terminal and terminal (15) or (48) by following "TCM (A/T CONTROL MODULE) INSPECTION TABLE".

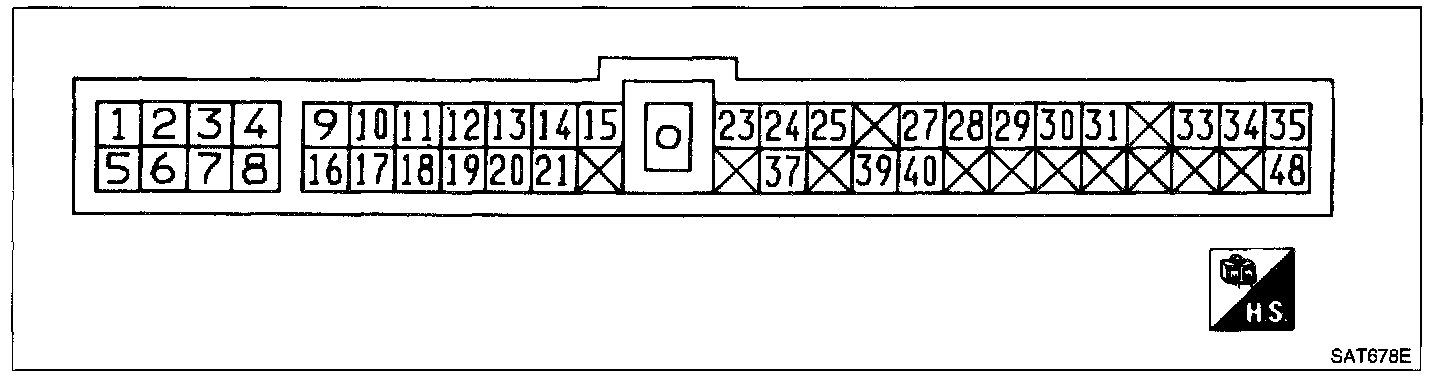

- Pin connector terminal layout.

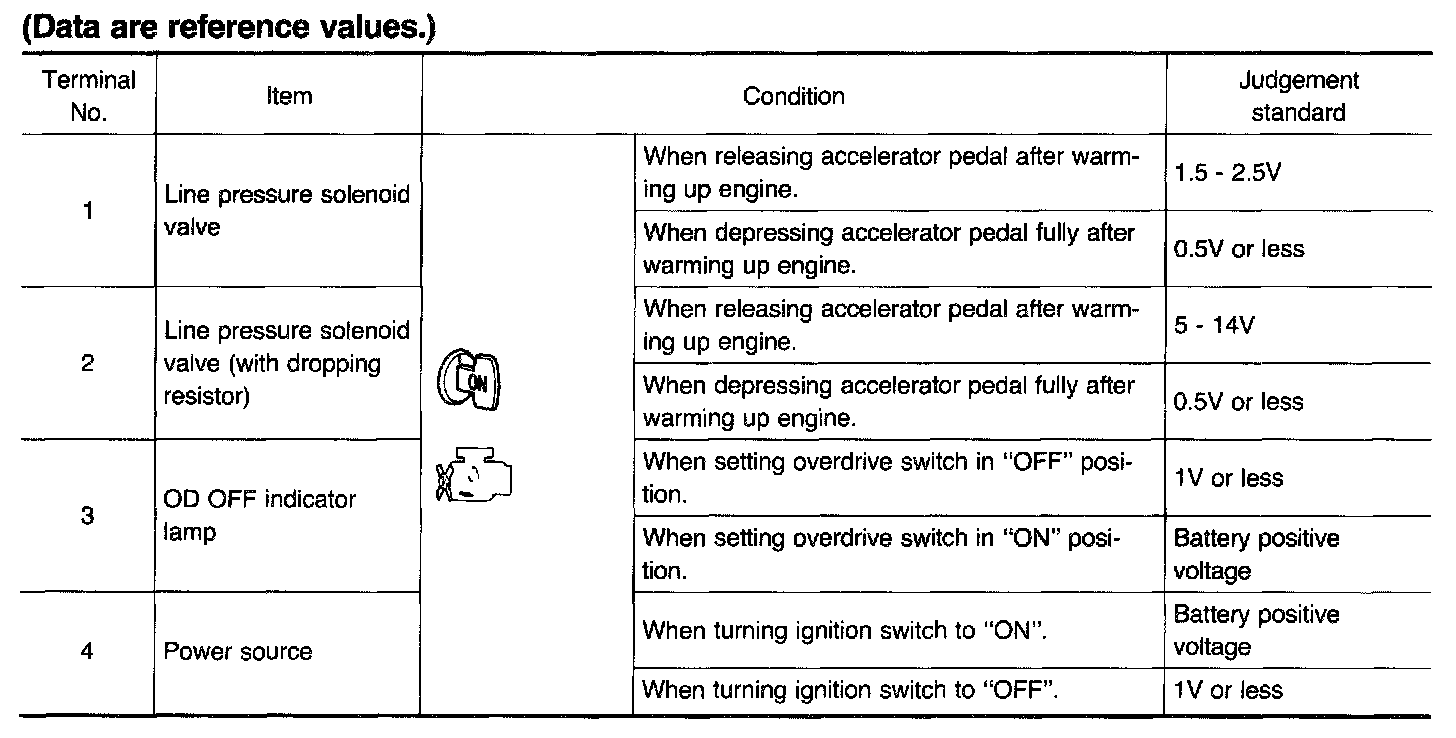

TCM (A/T CONTROL MODULE) INSPECTION TABLE

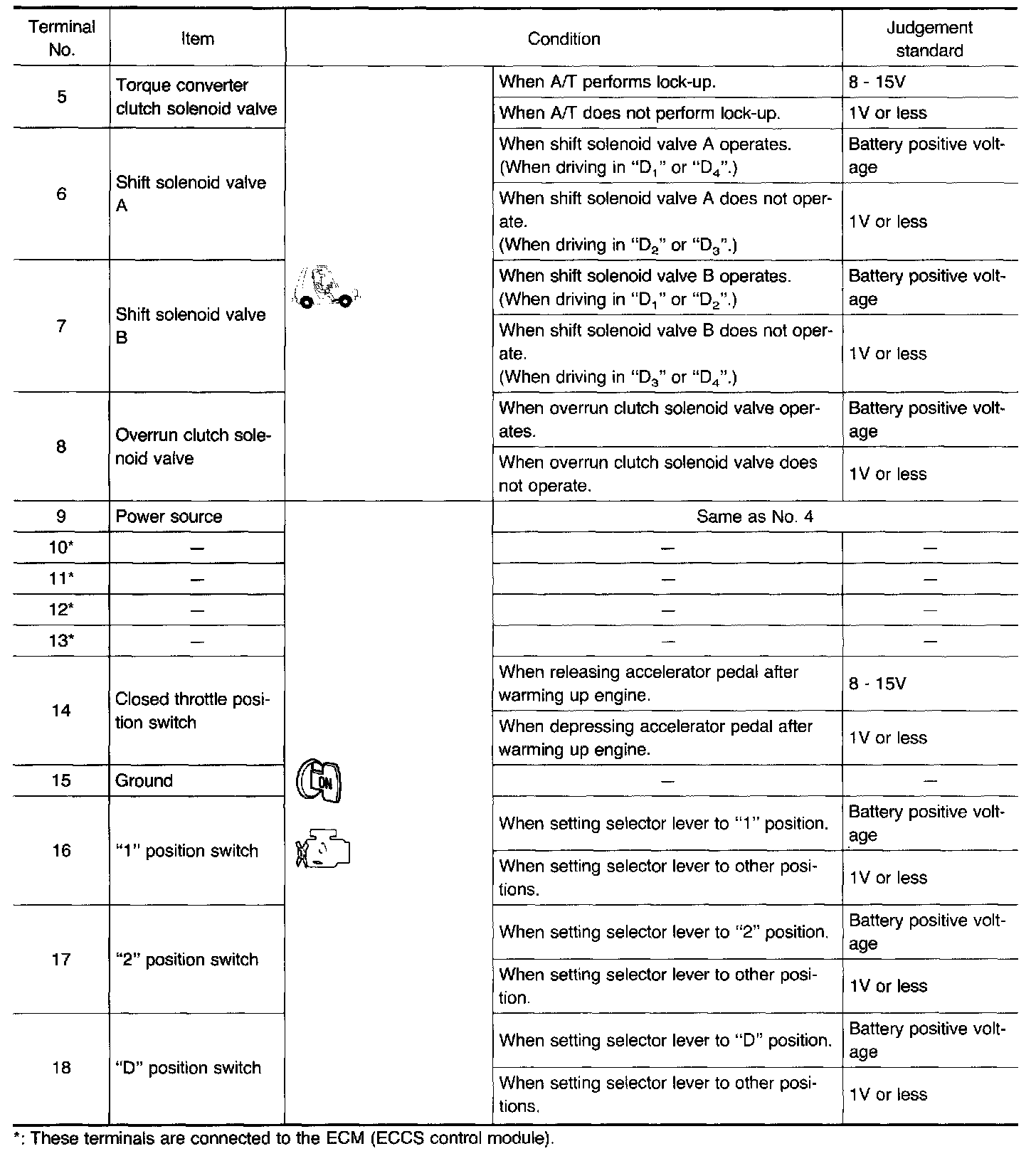

TCM (A/T Control Module) Inspection Table - Part 1:

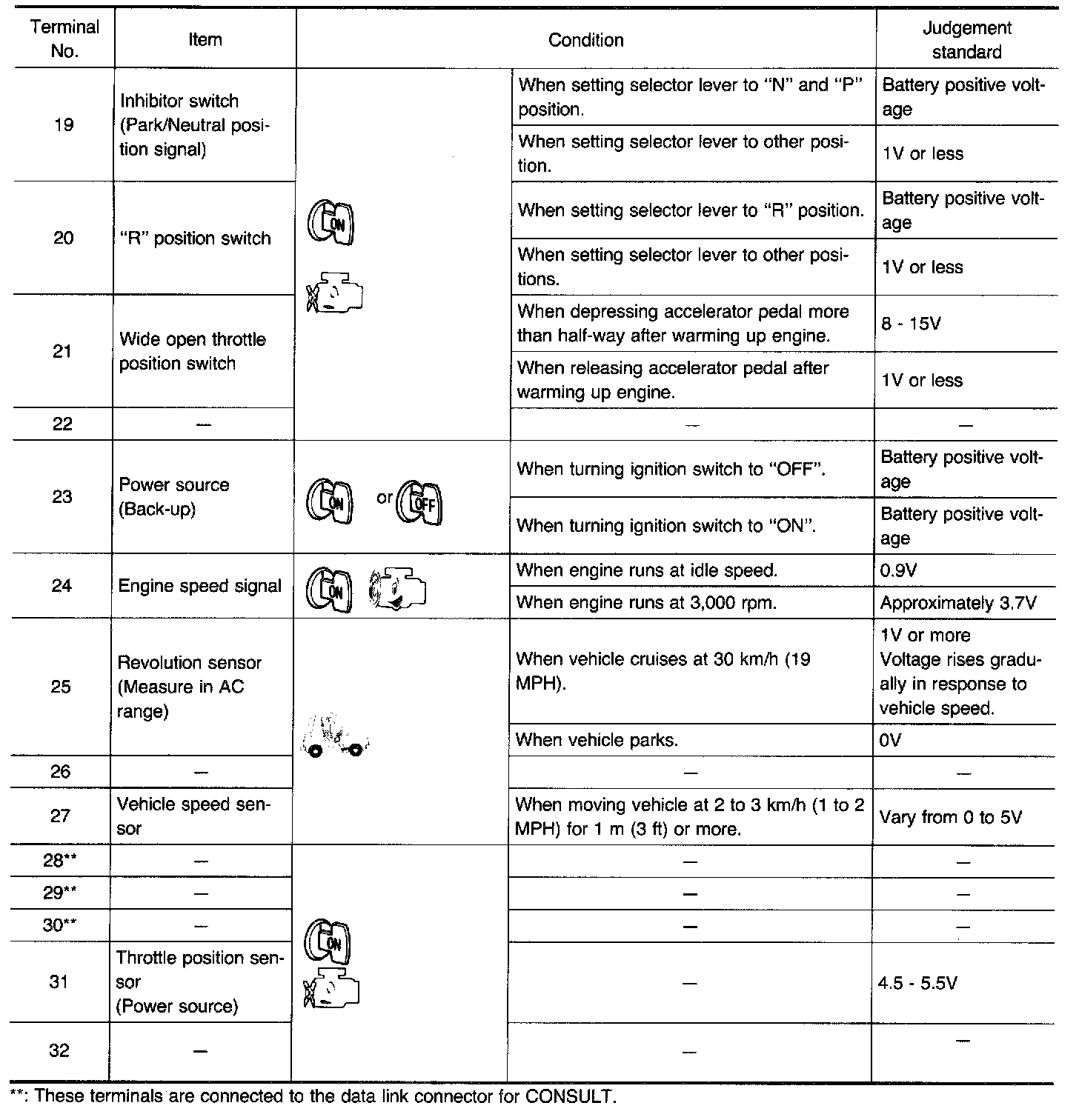

TCM (A/T Control Module) Inspection Table - Part 2:

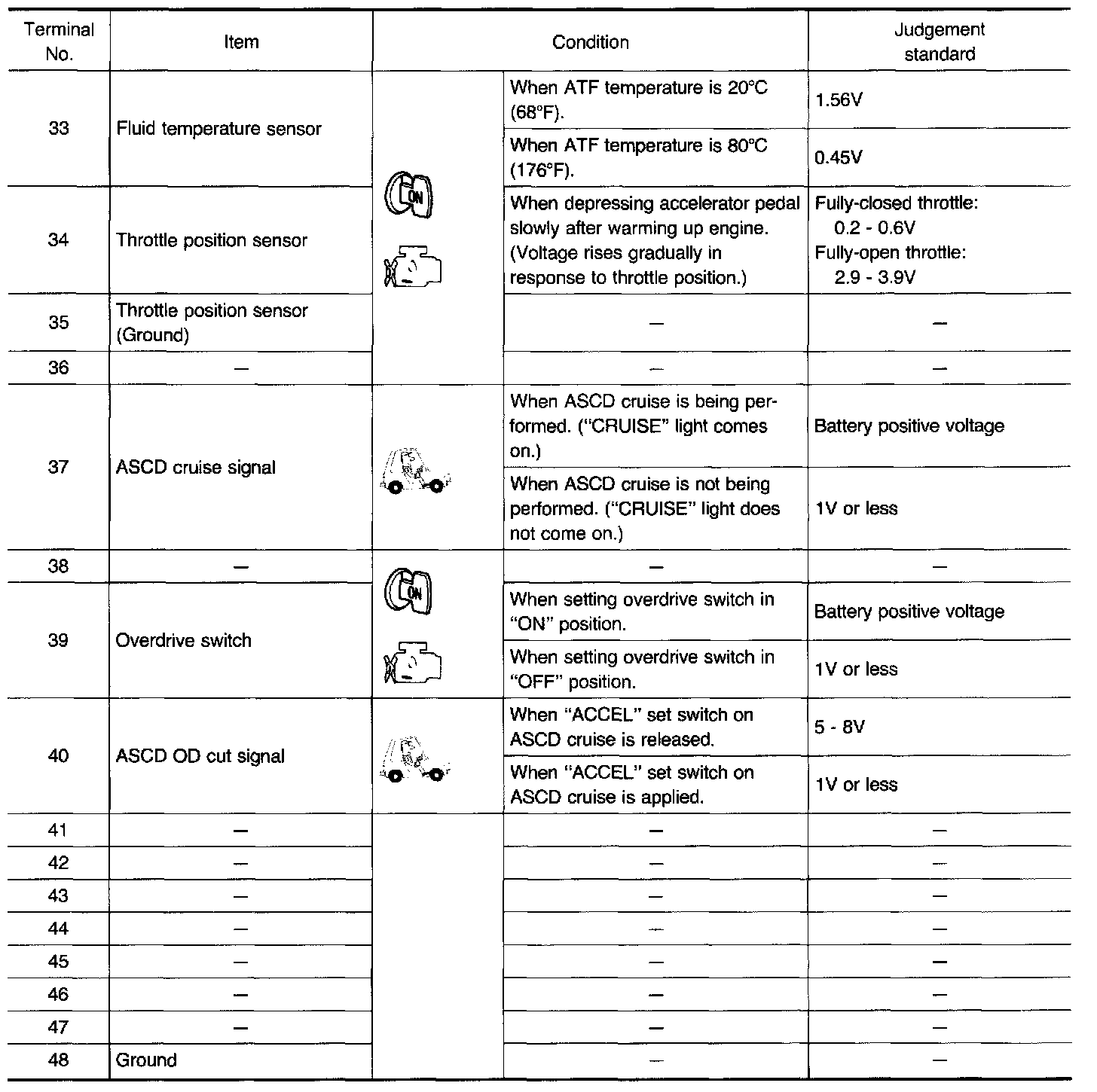

TCM (A/T Control Module) Inspection Table - Part 3:

TCM (A/T Control Module) Inspection Table - Part 4:
