Final Drive

Differential side gear clearance
Clearance between side gear and differential case with washer 0.1 - 0.2 mm (0.004 - 0.008 in)

Differential side gear thrust washers

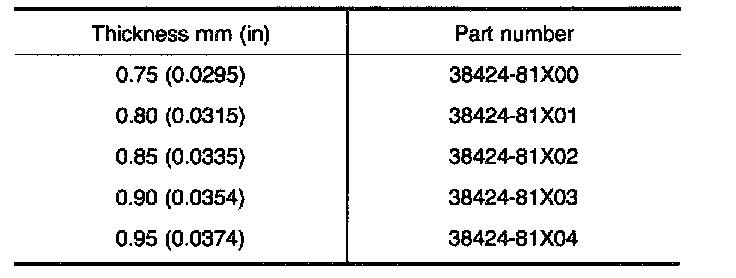

Differential Side Gear Thrust Washers - (RE4F04A):

(RE4F04A)

Differential Side Gear Thrust Washers - (RE4F04V):

(RE4F04V)

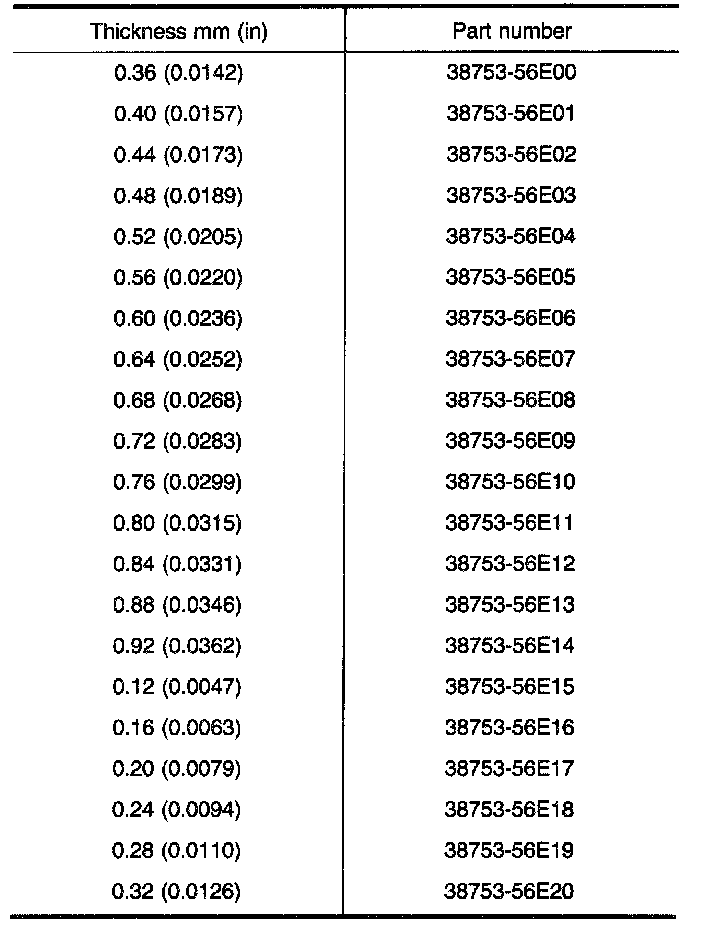

Differential side bearing preload adjusting shims

Differential Side Bearing Preload Adjusting Shims - (RE4F04A):

(RE4F04A)

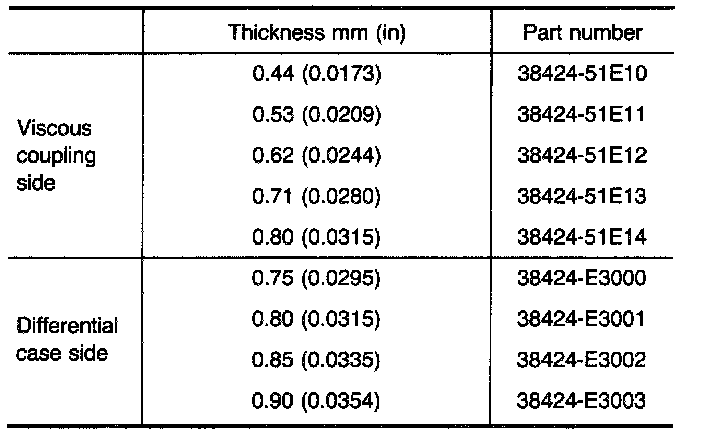

Differential Side Bearing Preload Adjusting Shims - (RE4F04V):

(RE4F04V)

Bearing preload
Differential side bearing preload 0.05 - 0.09 mm (0.0020 - 0.0035 in)

Turning torque
Turning torque of final drive assembly 0.78 - 1.37 N.m (8.0 - 14.0, 6.9 - 12.2 kg-cm, in-lb)

Clutch And Brake Return Springs:

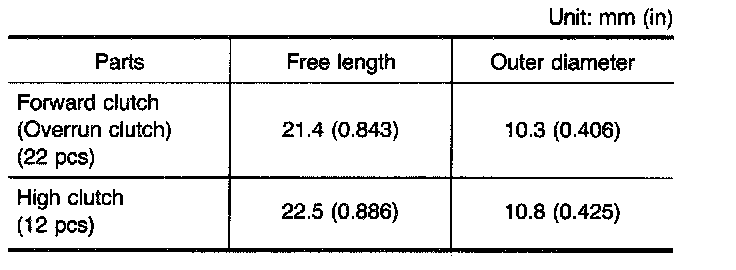

Clutch and brake return springs
