Ignition Control Module: Locations

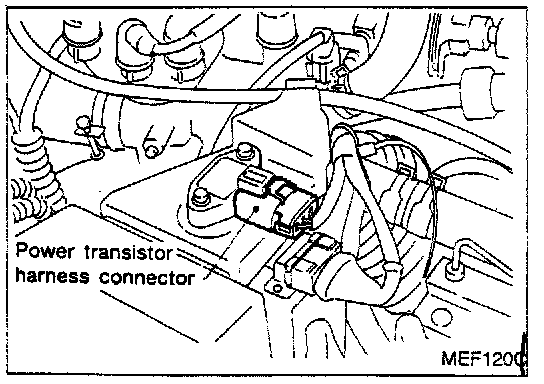

Power Transistor Connector Location:





POWER TRANSISTOR
Located on a bracket attached to the Air Cleaner box.
