Component Testing Procedures

IACV-FICD SOLENOID VALVE
Disconnect Idle Air Control Valve - Solenoid Valve (IACV-FICD) solenoid valve harness connection.

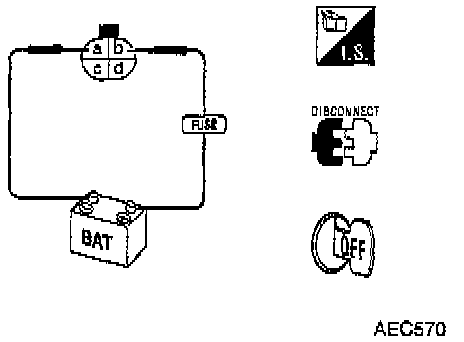

^ Check for clicking sound when applying 12 volts direct current to terminals.

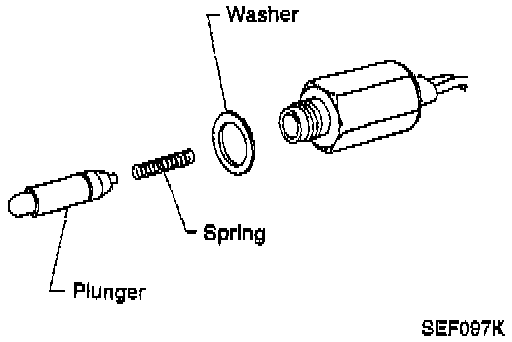

^ Check plunger for seizing or sticking.
^ Check for broken spring.
