Component Testing Procedures

THROTTLE POSITION SENSOR

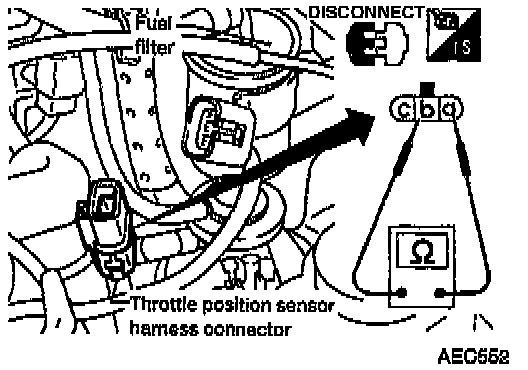

1. Disconnect throttle position sensor harness connector.




2. Make sure that resistance between terminals A and B changes when opening throttle valve manually.
If NG, replace throttle position sensor.
