Knock Sensor: Testing and Inspection

KNOCK SENSOR

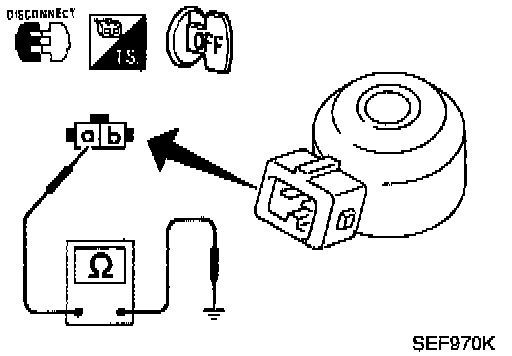

1. Disconnect knock sensor harness connector.
2. Check continuity between terminal A and ground. Continuity should exist.
^ It is necessary to use an ohmmeter which can measure more than 10 ohms.

CAUTION: Do not use any knock sensors that have been dropped or physically damaged. Use only new ones.
