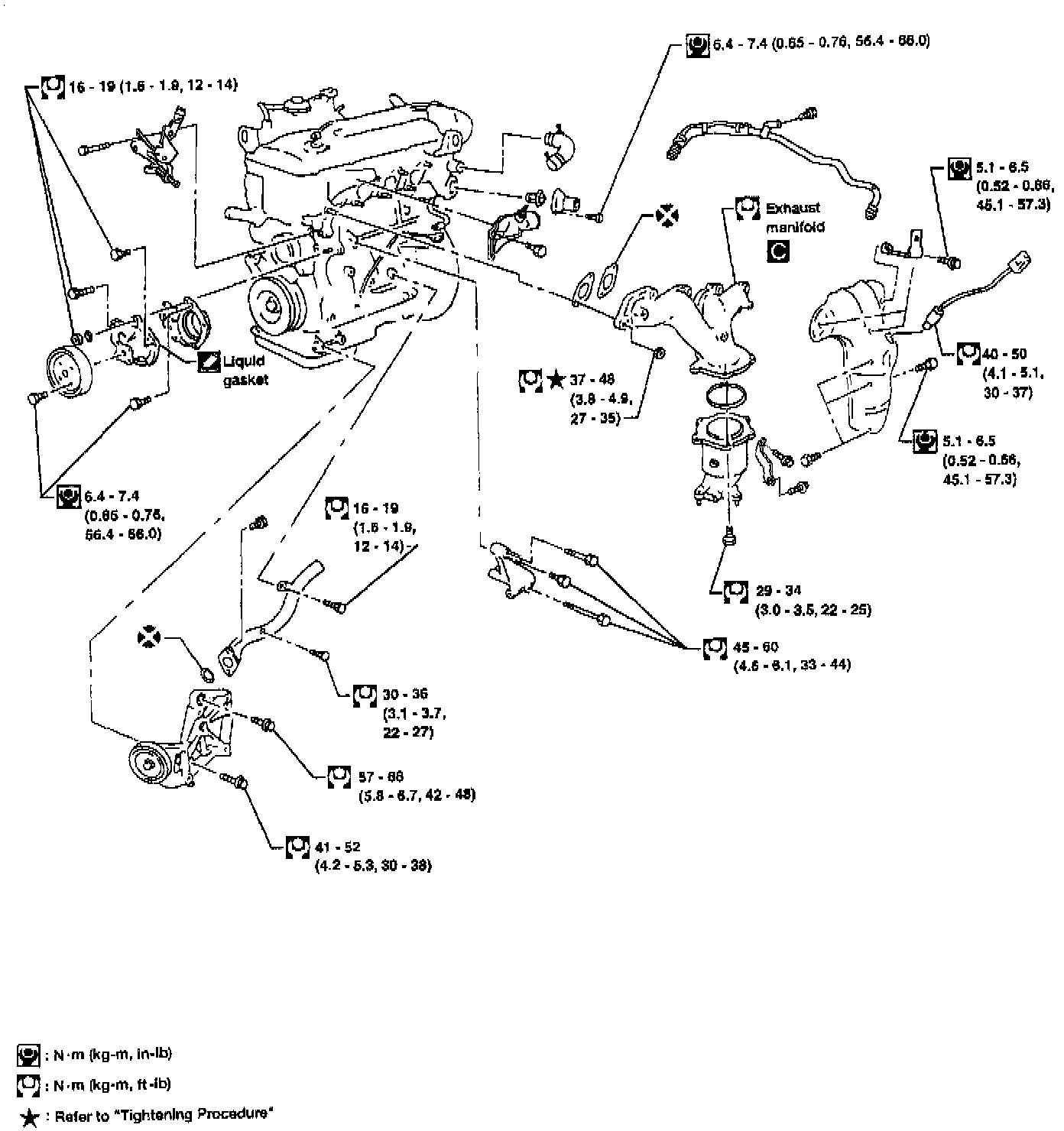

Main Bearing Cap Torque Values

Tighten cylinder head bolts in the order shown using the following procedure:
a. Tighten all bolts to 29 Nm (3.0 kg-m, 22 ft. lbs.).
b. Tighten all bolts to 79 Nm (8.1 kg-m, 59 ft. lbs.).
c. Loosen all bolts completely.
d. Tighten all bolts to 25 to 34 Nm (2.5 to 3.5 kg-m, 18 to 25 ft. lbs.).
e. Turn all bolts 86 to 91 degrees clockwise. If an angle wrench is not available, mark all cylinder head bolts on the side facing engine front. Then, turn each cylinder head bolt 86 to 91 degrees clockwise.







Tighten all camshaft bracket bolts to 2 Nm (0.2 kg-m, 17 inch lbs.).
Tighten all bolts to 9.0 to 11.8 Nm (0.92 to 1.2 kg-m, 79.9 to 104.2 inch lbs.).







Install rocker cover using the following procedure:
a. Tighten nuts and bolts (1)-(5)-(6)-(4) in that order to 4 Nm (0.4 kg-m, 35 inch lbs.).
b. Tighten nuts and bolts (1) to (11) in numerical order to 8 to 11 Nm (0.8 to 1.1 kg-m, 69 to 95 inch lbs.).

Torque Sequence:

Tighten connecting rod bearing cap nuts in the following procedure:
1. Tighten to 14 to 16 Nm (1.4 to 1.6 kg-m, 10 to 12 ft. lbs.)
2. Turn all nuts 60 to 65 degrees clockwise. If an angle wrench is not available, mark all connecting rod bearing cap nuts on the side facing engine front. Then, turn each nut 60 to 65 degrees clockwise.
