Control Assembly: Service and Repair

REMOVAL AND INSTALLATION
1. Remove cluster lid C. Refer to "Cluster Lid C". Service and Repair
2. Remove audio unit. Refer to "AUDIO UNIT". Service and Repair

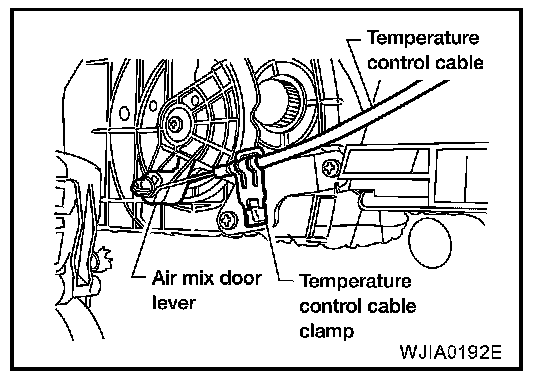

3. Remove the temperature control cable clamp and then remove the cable from the air mix door lever.

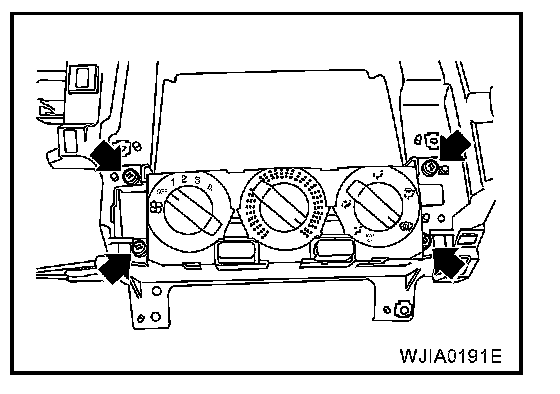

4. Remove the A/C control unit screws and then remove it from the instrument panel.
5. Disconnect the A/C control unit connectors and then remove it.
